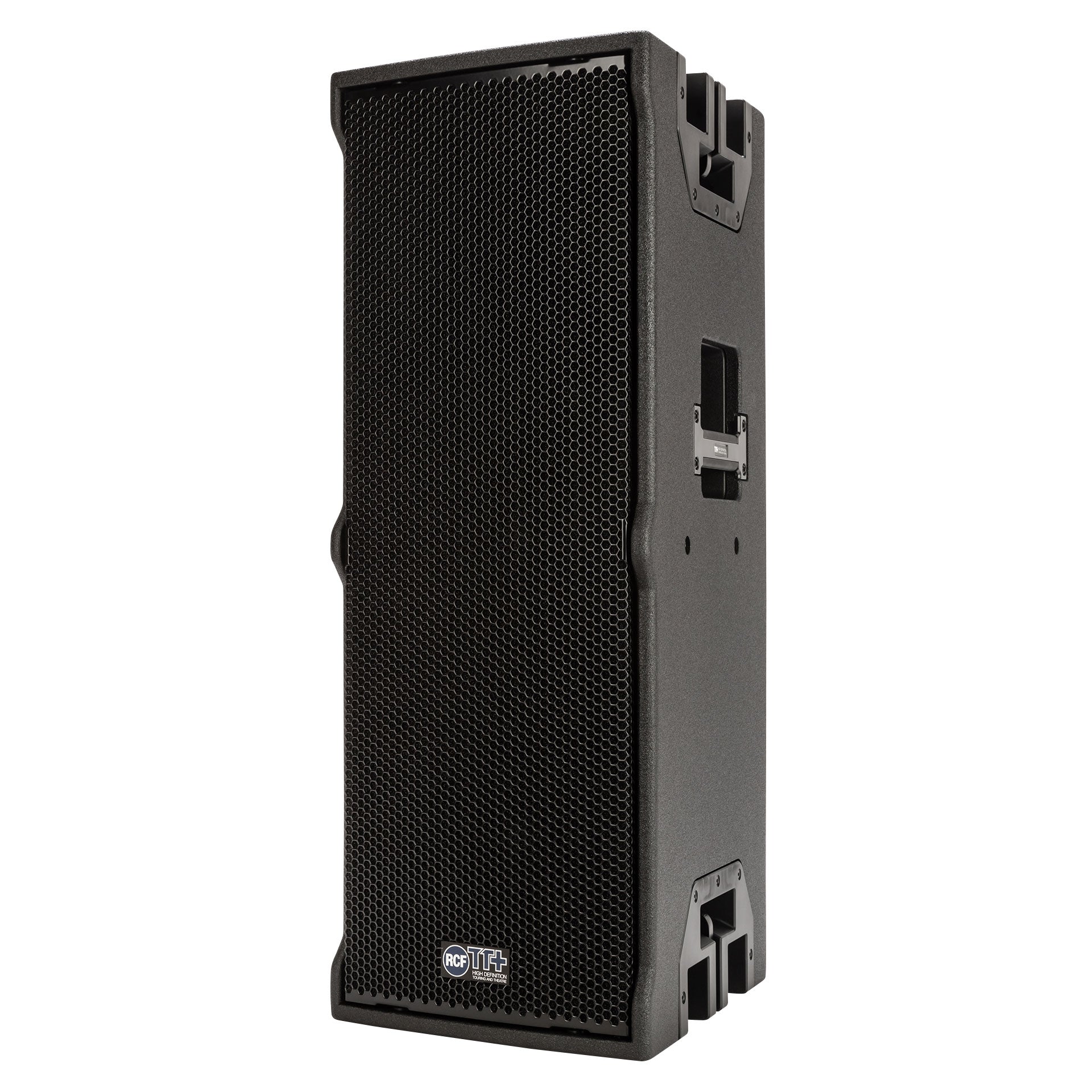

TTL 4-A RCF ACTIEVE 2-WEG SPEAKERS 1600W RMS

The TTL 4-A speaker module delivers top-quality sound for highly demanding events indoors or outdoors on small to medium-sized areas. Its design provides the audio engineer with the best tonal balance and intelligibility while maintaining an unobtrusive and adaptable footprint. With all the advantages of TT+ technology, such as high directivity, long-range, power, and precision, it’s designed for professional applications.

• FREQUENCY RESPONSE: 45 Hz ÷ 20000 Hz
• MAX SPL @ 1M: 135 dB
• HORIZONTAL COVERAGE ANGLE: 100°
• VERTICAL COVERAGE ANGLE: 25°

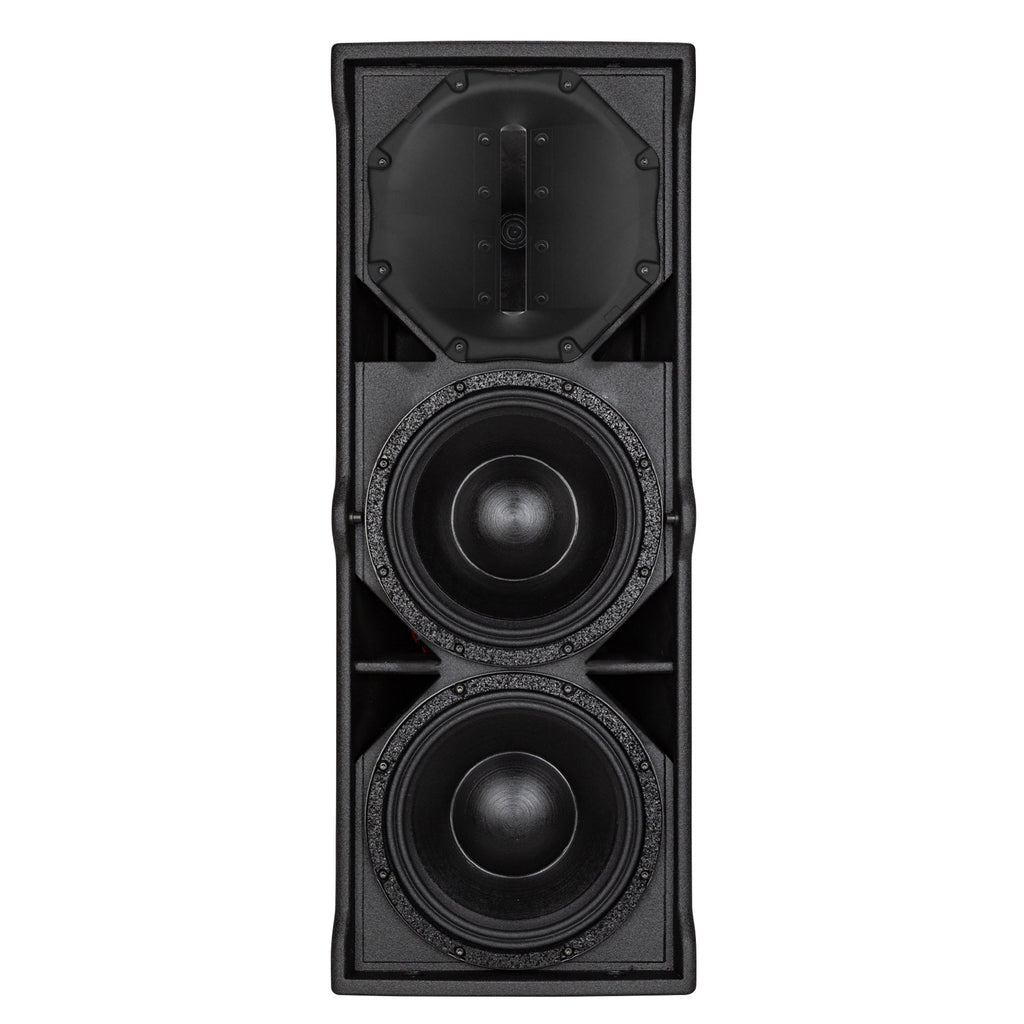

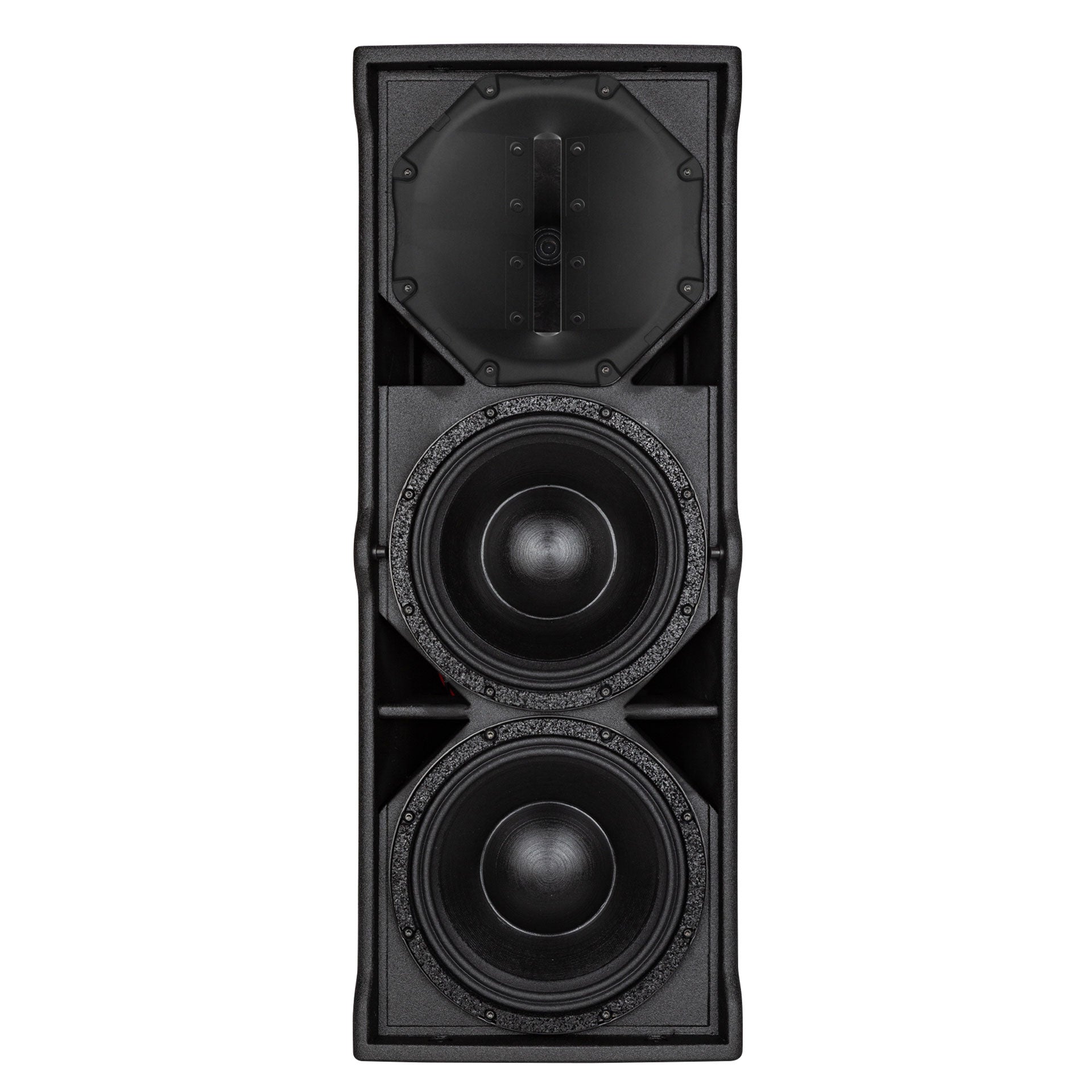

• COMPRESSION DRIVER: 1 x 1.5'' neo, 4.0'' v.c
• WOOFER: 2 x 10'' neo, 3.0'' v.c
• INPUT SIGNAL: bal/unbal

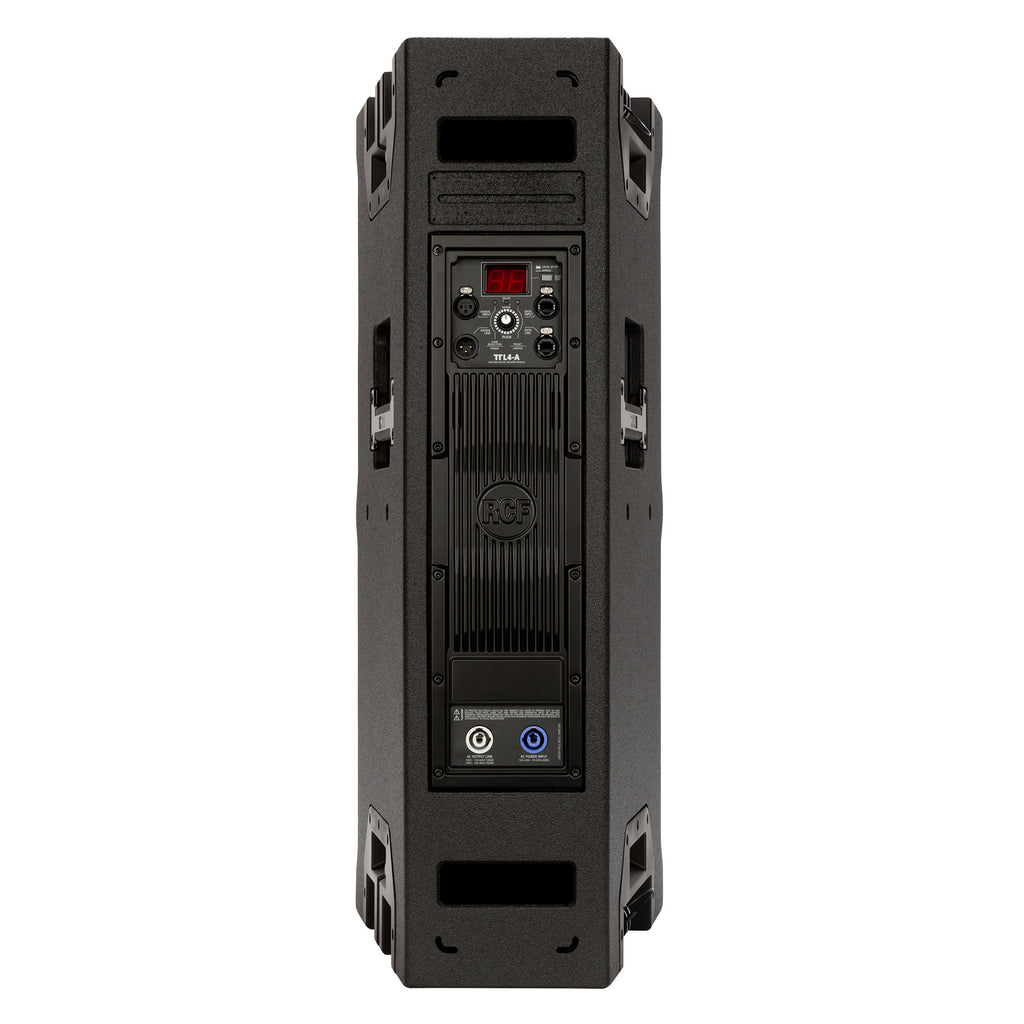

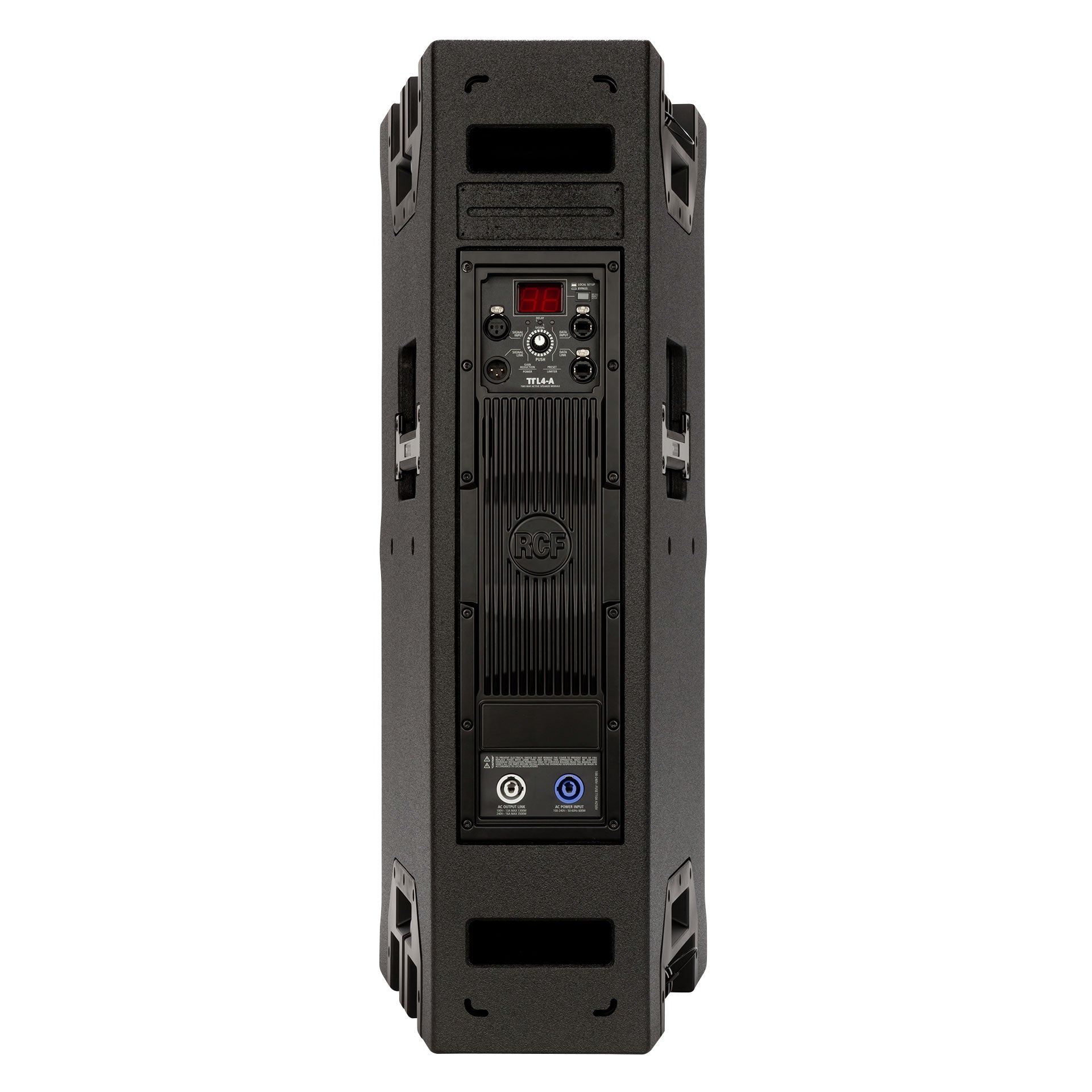

• INPUT CONNECTORS: XLR, RDNet Ethercon
• OUTPUT CONNECTORS: XLR, RDNet Ethercon
• INPUT SENSITIVITY: +4 dBu
• CROSSOVER FREQUENCIES: 900Hz
• PROTECTIONS: Thermal, RMS
• LIMITER: Fast Limiter
• CONTROLS: Selectable preset, volume, delay
• RDNET
• TOTAL POWER: 3200 W Peak, 1600 W RMS
• HIGH FREQUENCIES: 1200 W Peak, 600 W RMS
• LOW FREQUENCIES: 2000 W Peak, 1000 W RMS
• COOLING: Convection
• CONNECTIONS: Powercon IN/OUT
• CABINET/CASE MATERIAL: Baltic birch plywood

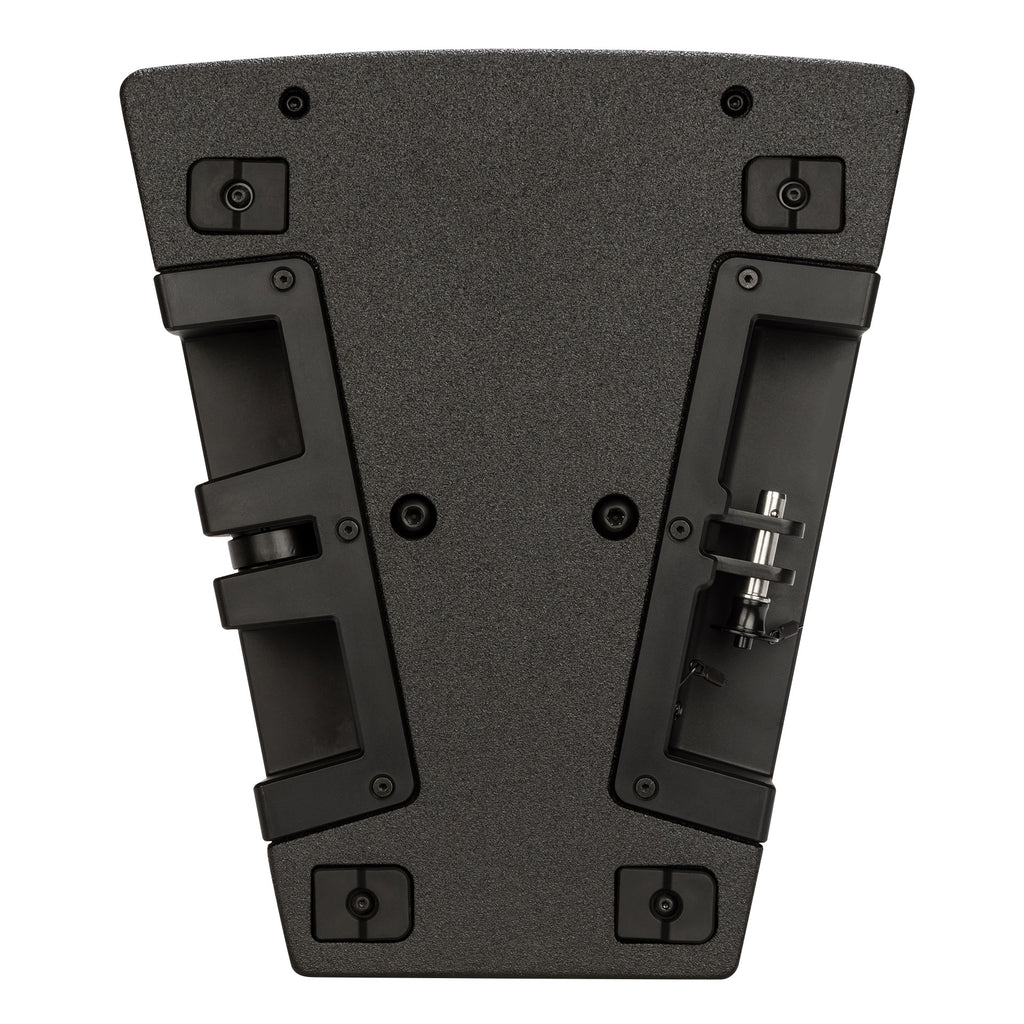

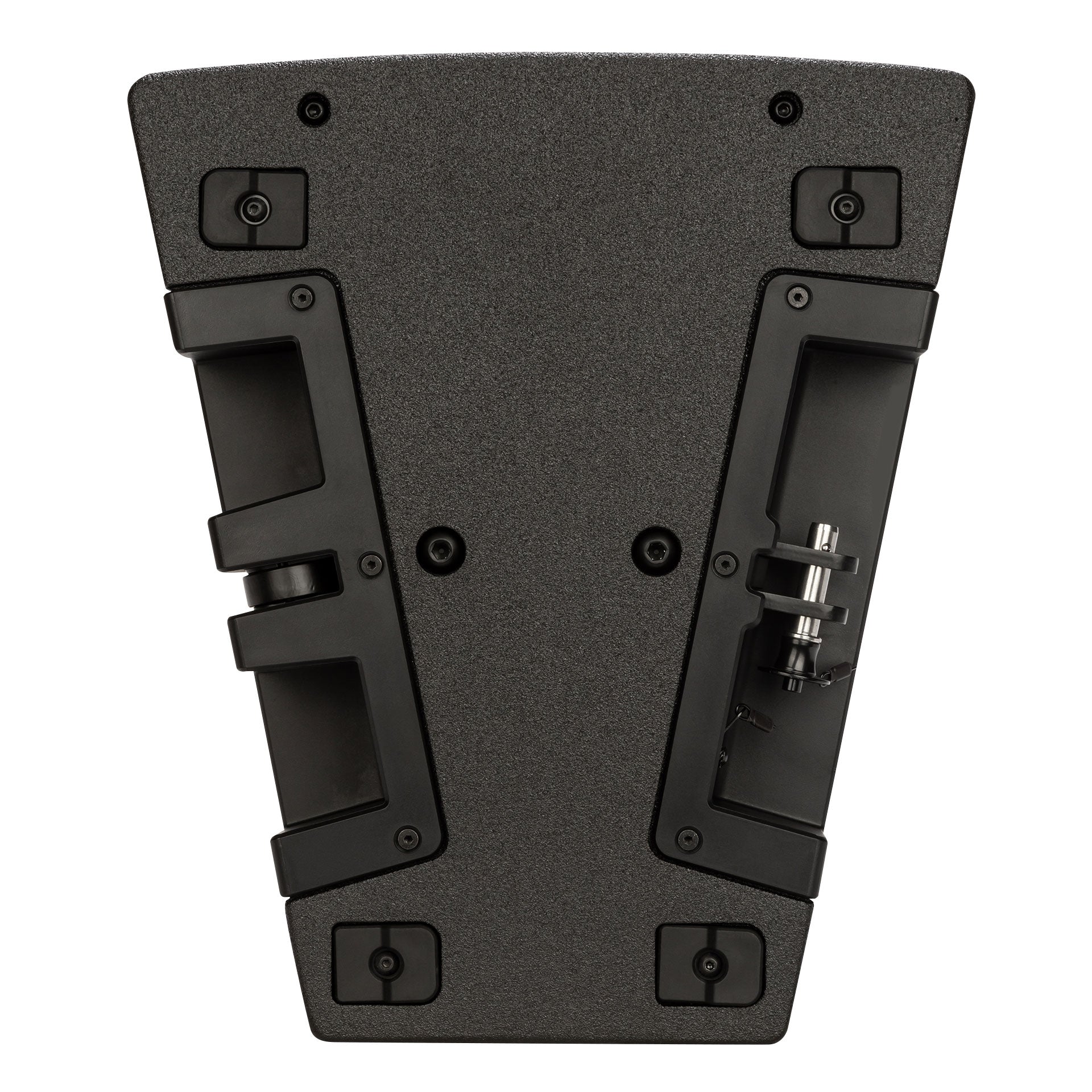

• HARDWARE: Array fittings, 2xM10 on the top, 2xM8

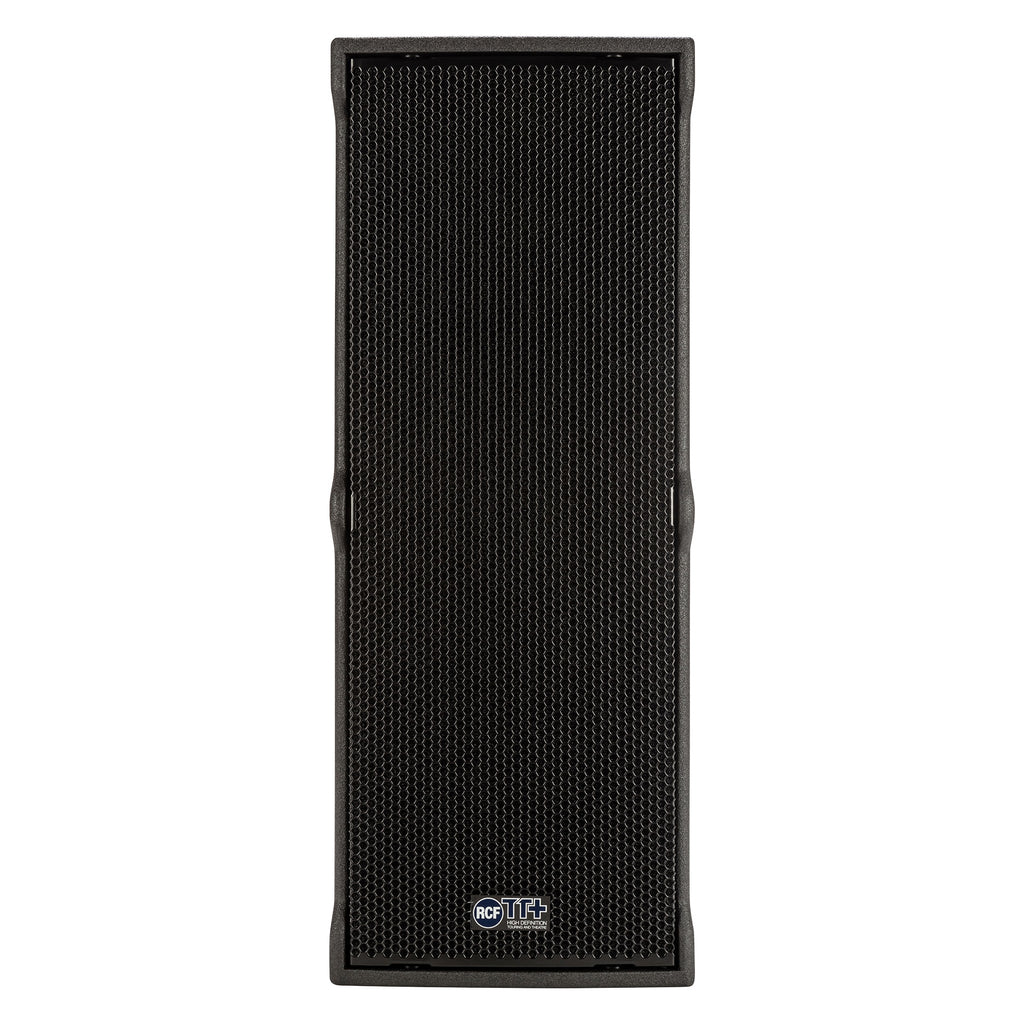

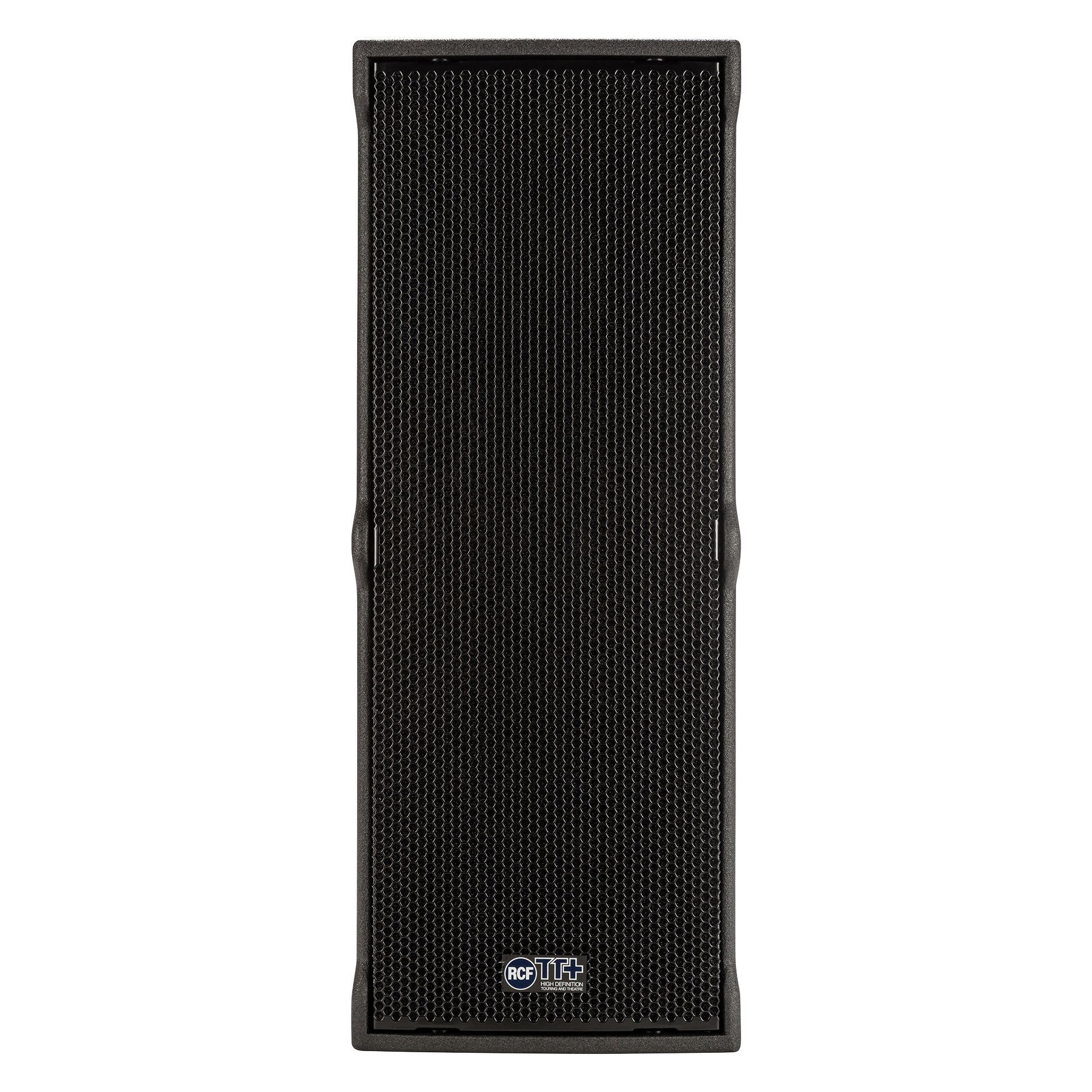

• GRILLE: Steel
• HEIGHT: 825 mm / 32.48 inches
• WIDTH: 316 mm / 12.44 inches
• DEPTH: 369 mm / 14.53 inches
• WEIGHT: 30.4 kg / 67.02 lbs
