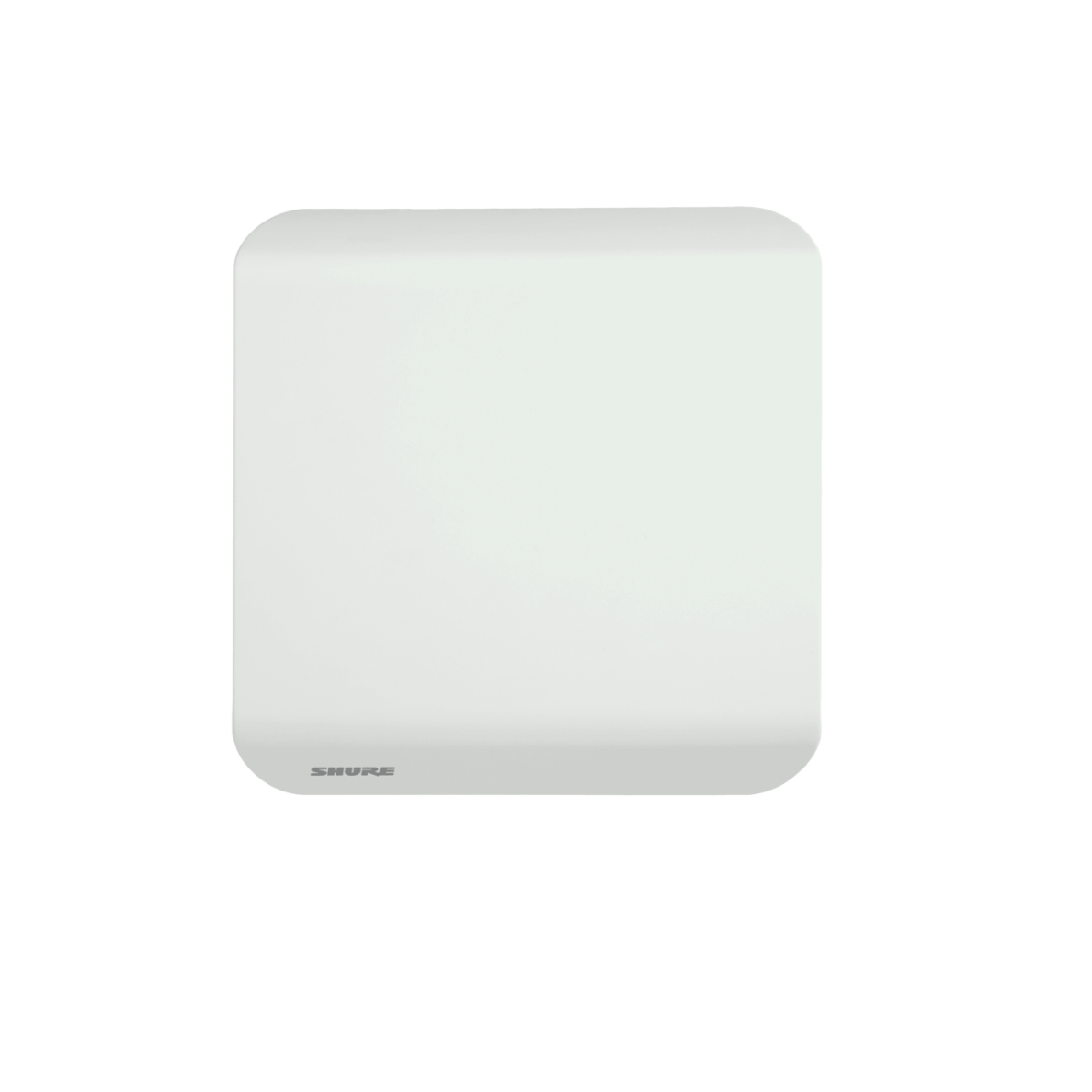

UA864LO Shure Wall-Mounted Wideband Antenne 470-698mhz
UA864 SHURE Wall-Mounted Wideband Antenna
The UA864 antenna provides broadband RF coverage in a low-profile housing that easily mounts to a wall or ceiling. The neutral white housing allows the antenna to fit into a business or classroom environment, and can be painted to match interior colour schemes. The 4-position adjustable gain switch provides attenuation and gain settings to optimise antenna performance for varying transmitter distances and cable lengths.
Features
- Wideband UHF frequency range ensures compatibility with most receivers
- Up to 100 degrees coverage pattern (3dB beam width, region dependent)
- RF gain switch with four positions and pad/boost (-20, -10, 0, +10 dB)
- Fixed BNC cable for wall or surface cable routing
- Low-profile design
- Possibility of mounting on metal surface
- Neutral white, paintable housing
Brief specifications
| Housing | |
|---|---|
| Color | Wit |
| Features | |
|---|---|
| Frequency range | 470-698mhz |
