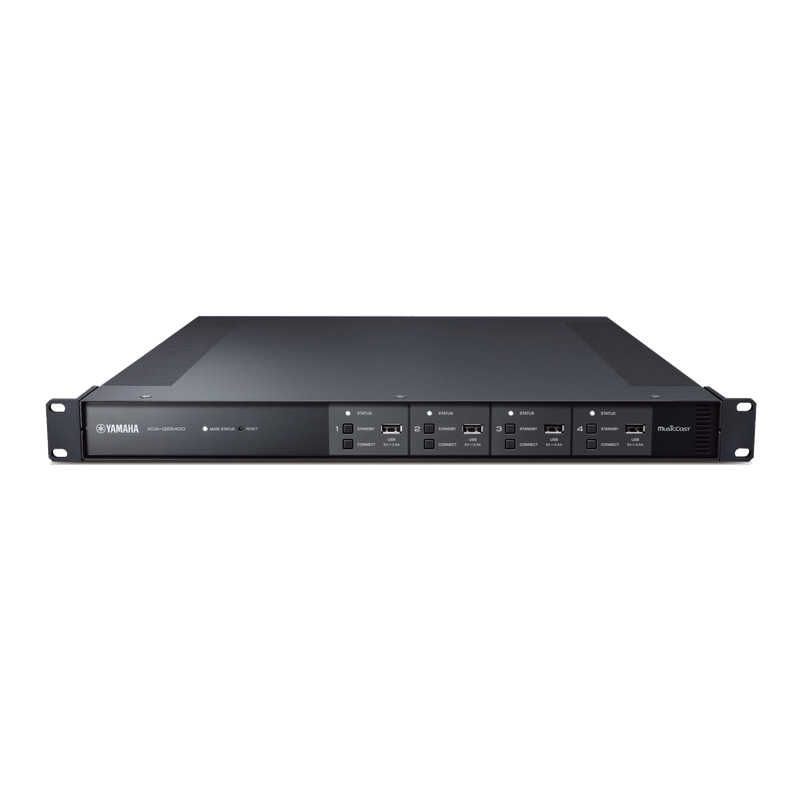

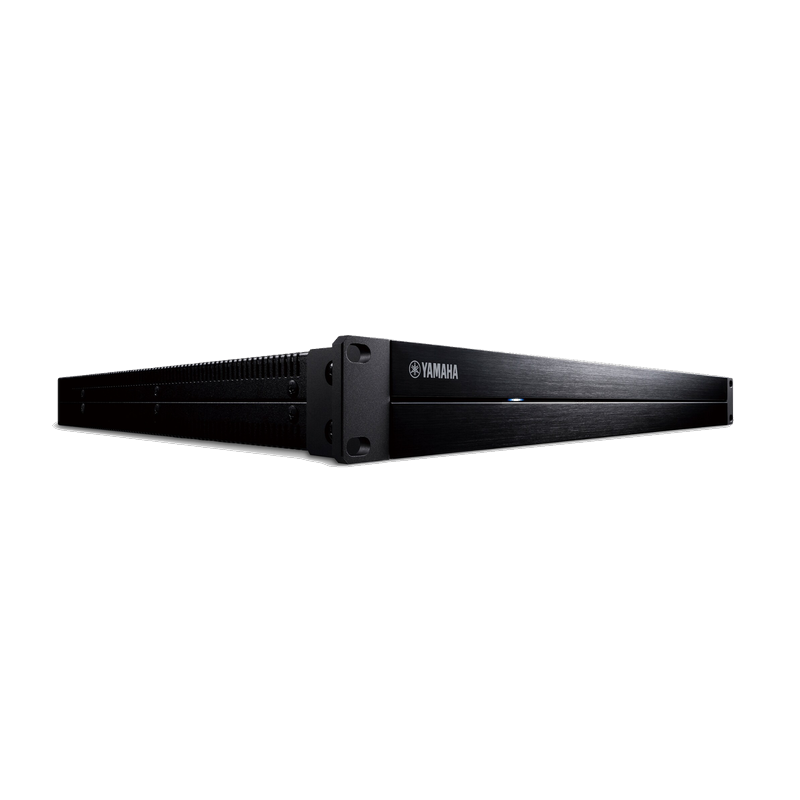

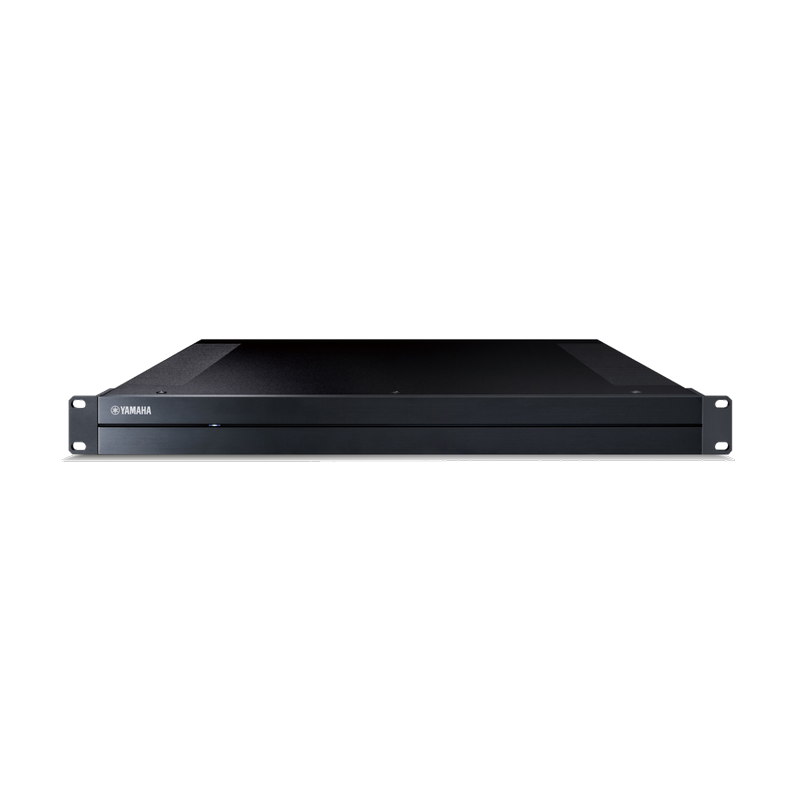

XDA-QS5400RK Yamaha MusicCast Multiroom Streaming Amplifier
Regular price
€2.999,00
Unit price
per
- Specially designed for integrating a MusicCast multiroom system via the network (Ethernet) into a rack or cabinet
- Streams four audio zones per unit, expandable to 32 zones with simultaneous playback in linked groups of up to 20 zones
- Eight channels of audiophile Class D amplification, assignable per zone, with bridging capability and suitable for 4 ohm, featuring a uniqu...
Approx. 3-7 business days
S2 Ref: 018850
Delivery
Approx. 3-7 business days
S2Store Genk (BE)
Approx. 3-7 business days
Pros and Cons
Description
XDA-QS5400RK Yamaha MusicCast Multiroom Streaming Amplifier
- Specially designed for integrating a MusicCast multiroom system via the network (Ethernet) into a rack or cabinet
- Streams four audio zones per unit, expandable to 32 zones with simultaneous playback in linked groups of up to 20 zones
- Eight channels of audiophile Class D amplification, assignable per zone, with bridging capability and suitable for 4 ohm, featuring a unique circuit to combat ground loops/hum
- Pandora®, Spotify® Connect, SiriusXM Internet Radio, TIDAL, Deezer, Napster and more built in, plus access to music libraries and linked external sources
- Easy to control via the free MusicCast app and third-party external control systems
- Housing suitable for placement in a 1U rack, including removable rack brackets and front panel
The 'QS' (Quad Streamer) is specially developed for integrating a whole-home audio system, offering audio streaming for four zones and hi-fi audio amplification for eight channels. All these capabilities are built into an ultra-slim 1U-height housing suitable for rack mounting. The easily expandable and highly flexible QS works in conjunction with the MusicCast multiroom system and can therefore be connected to AV receivers, soundbars and hi-fi systems in the most diverse configurations.
Brief specifications
| Behuizing | |
|---|---|
| Afmetingen | 481 x 44 x 453 mm |
| Gewicht | 6.3 kg |
| Kleur | zwart |
| Stroomverbruik | 130 W (all zone on) |
| Network | |
|---|---|
| Bestandsformaat | MP3 / WMA / MPEG-4 AAC, ALAC: up to 96 kHz / 24-bit, WAV / FLAC / AIFF: up to 192 kHz / 24-bit |
| Ethernet | ja, 2 connectoren |
| Airplay | ja |
| Audio | |
|---|---|
| Kanalen | 8 (2 x 4) |
| Minimum impendantie luidsprekers | 4 ohm |
| BTL-aansluiting | ja |

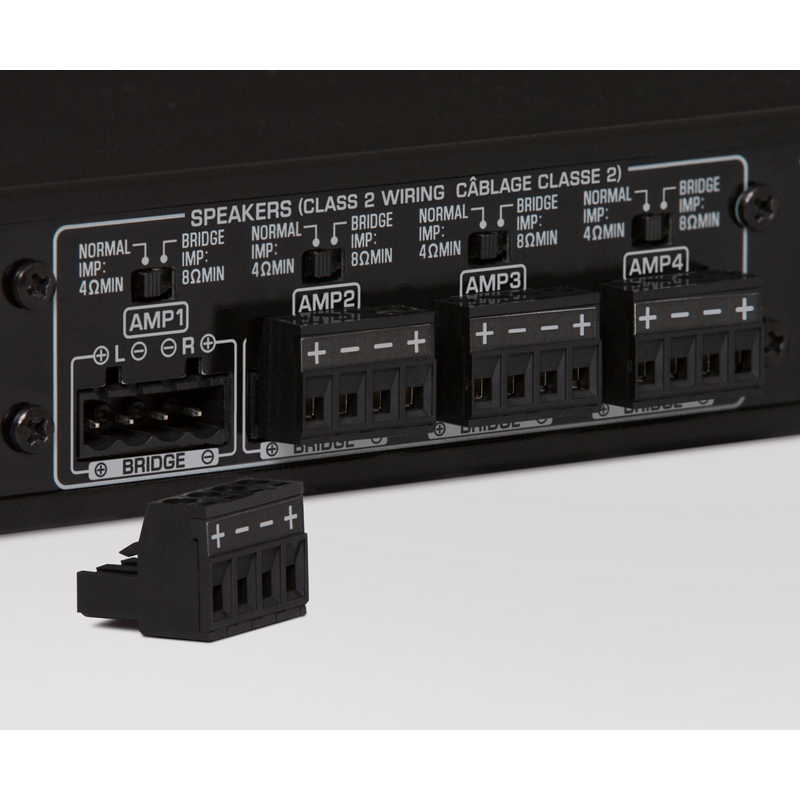

| Speaker output terminal | 4 (euroblock) |
| Pre-out terminal | 4 |

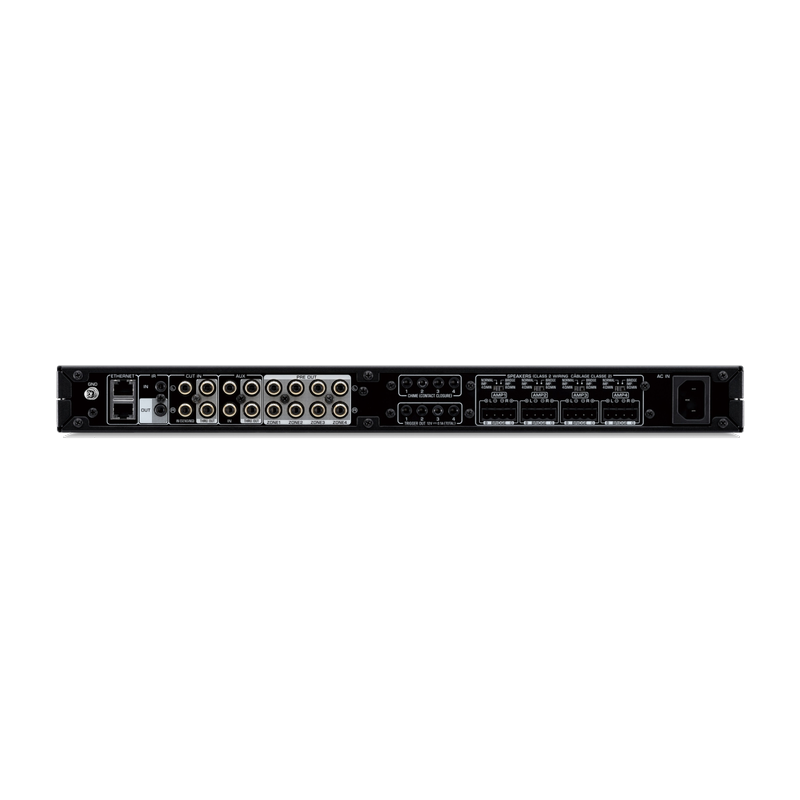

| Audio in | 2 x RCA (cut in, aux), 4 x USB |
| Audio uit | RCA (2-kanaals through out),2 (cut in, aux) |
| Trigger in/uit | 0/4 |
| Remote in/uit | 1/1 |
| Chime | 4 |
| Rated power | Normal (4 / 8 ohms): 90 / 50 W, Bridge (8 ohms): 100 W (1 kHz, 0.9% THD, 2ch driven) |
| Dynamic power | Normal (4 / 8 ohms): 80 / 40 W, Bridge (8 ohms): 150 W (20 Hz-20 kHz, 0.08% THD, 2ch driven, 20 ms burst) |
| Frequentiebereik | 10 Hz - 22 kHz |
| Web setup | ja |
