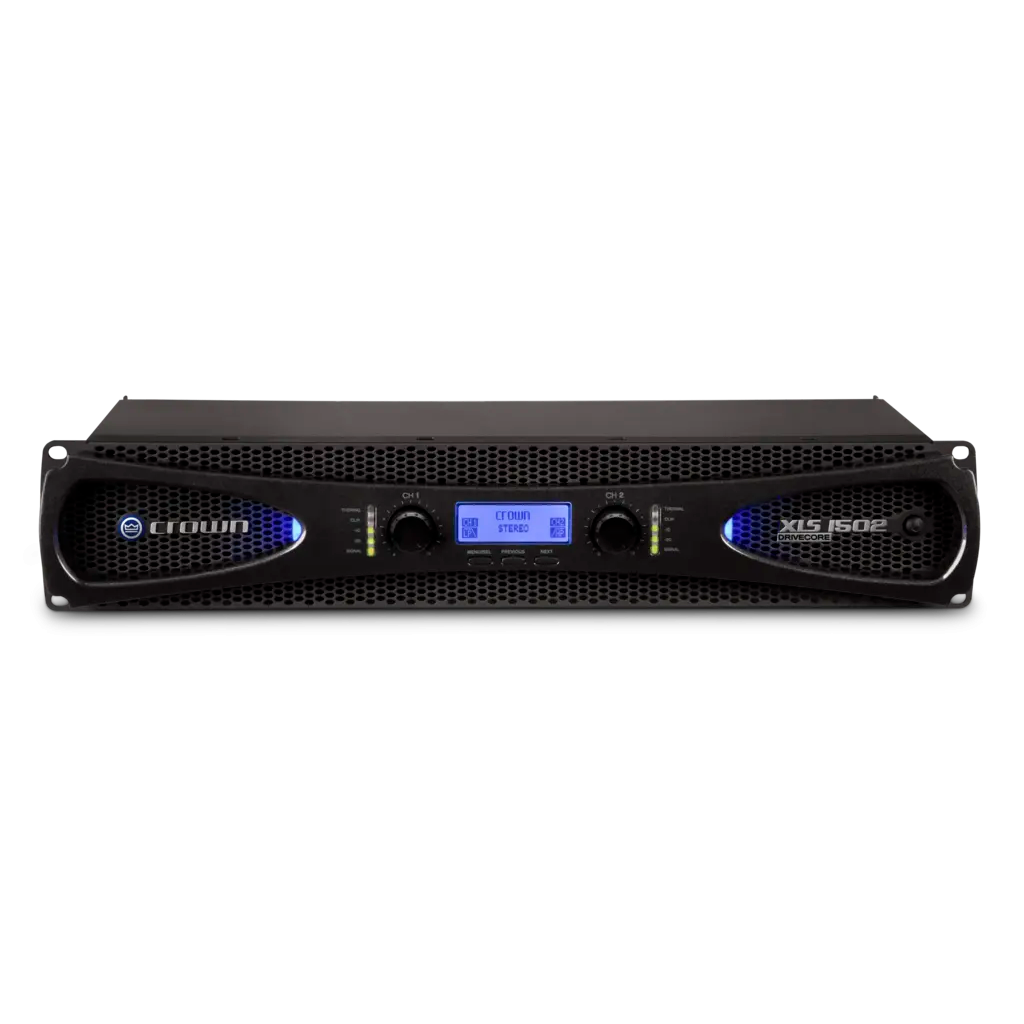

XLS 1502 Crown Power Amplifier
XLS 1502 Crown Power Amplifier
Meet the new XLS DriveCore 2 Series
The next generation of XLS got a makeover with a sleek new look, a LCD display that is three times larger, and more DSP with higher capabilities. Like its predecessor, the new XLS is ultra-efficient with Crown’s patented DriveCore technology and can drive 2400W at 4Ω bridged with tons of headroom guaranteeing a clean, undistorted signal straight to your speakers. The XLS DriveCore 2 assures that you will be heard as you deliver a powerful, pure sound experience for any venue.
Features
- Class D amp with Crown's ultra-efficient DriveCore technology weighs less than 11 lb
- Higher DSP capabilities: More control; has band pass filter per channel
- Increased lighting functionality; turn off all LED indicators except clip and thermal to reduce distraction in dark venues
- Selectable input sensitivity; 1.4Vrms and .775Vrms options so that amp can be driven at full power
- Set sleep mode after specified time without having to press a button
- Security setting disables menu buttons; menu locked/unlocked by entering combination
- System reset allows factory settings to be restored
- Remote power trigger
- Peakx™ Limiters provide maximum output while protecting your speakers
- XLR, 1/4", RCA inputs provide flexibility
- Integrated PureBand™ Crossover System for better performance and control
- Efficient forced-air fans prevent excessive thermal buildup
Brief specifications
| Housing | |
|---|---|
| Dimensions | 483 x 89 x 196 mm |
| Weight | 3.9 kg |
| Rack height | 2U |
| Sound | |
|---|---|
| Frequency response | +0dB, -1dB (1W, 20Hz - 20kHz) |
| Sensitivity | 0.775Vrms / 1.4Vrms |
| Signal-to-noise ratio | >103dB |
| THD (total harmonic distortion) | <0.5% |
| Audio I/O | |
|---|---|

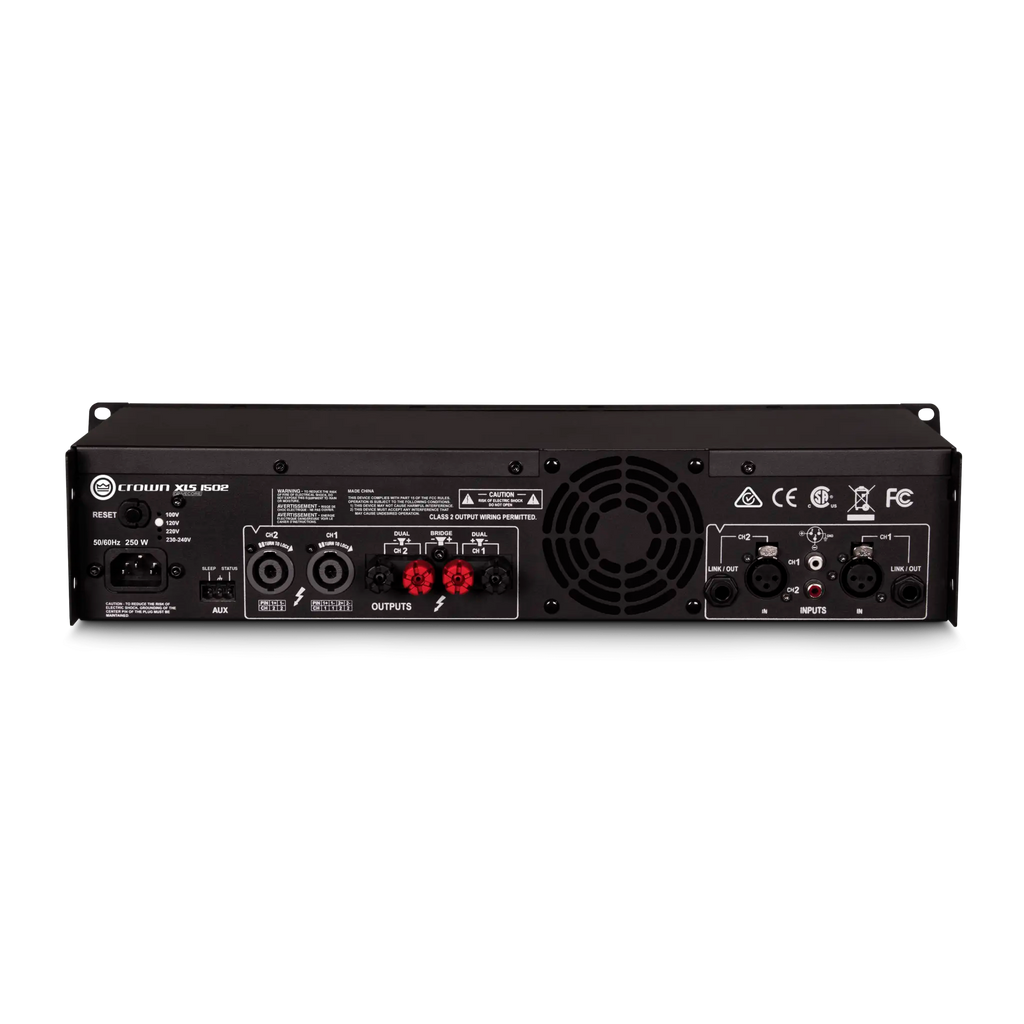

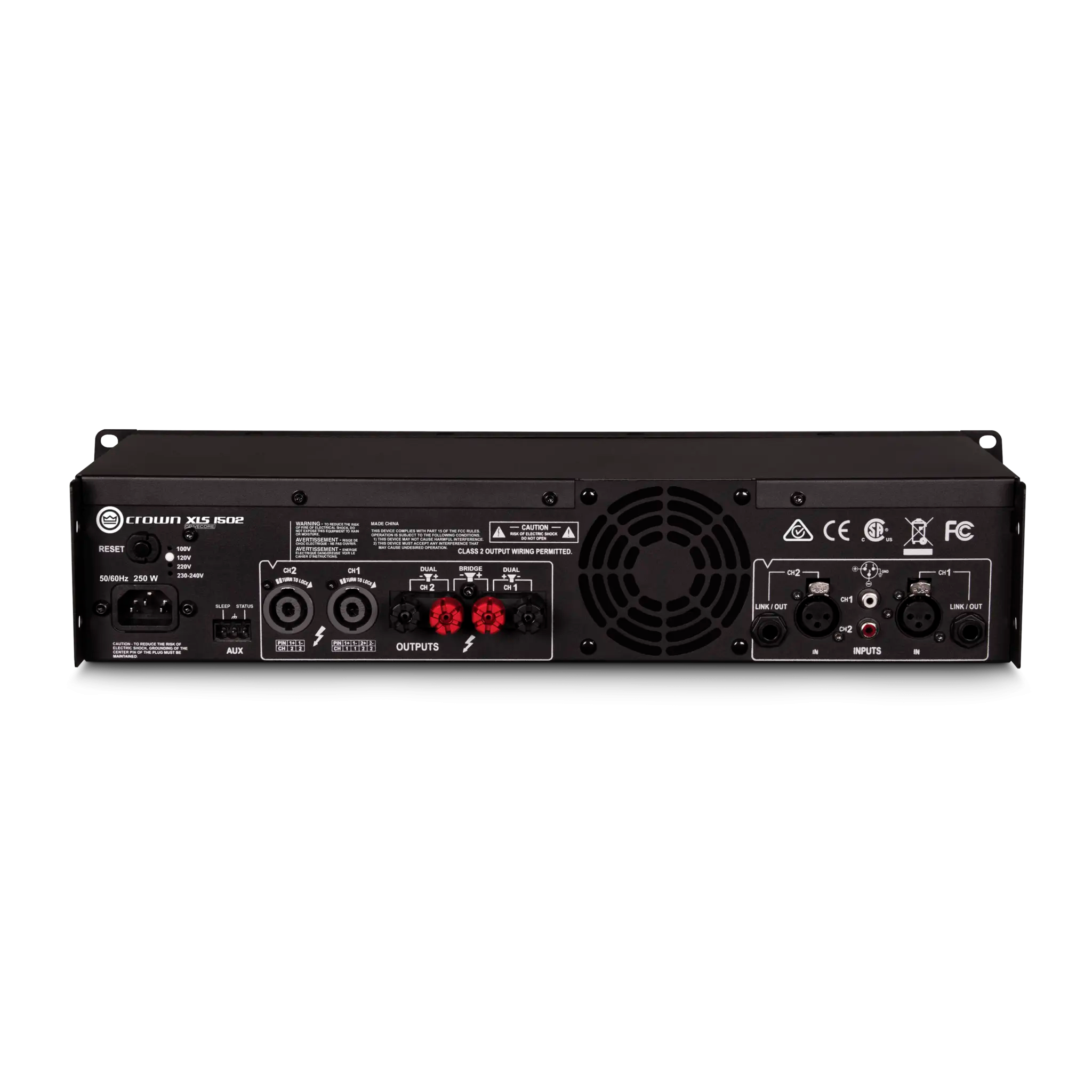

| Inputs | XLR, 1/4", RCA |
| Outputs | Speakon 4P, Binding Post (Banaanstekkers of Kabel) |
