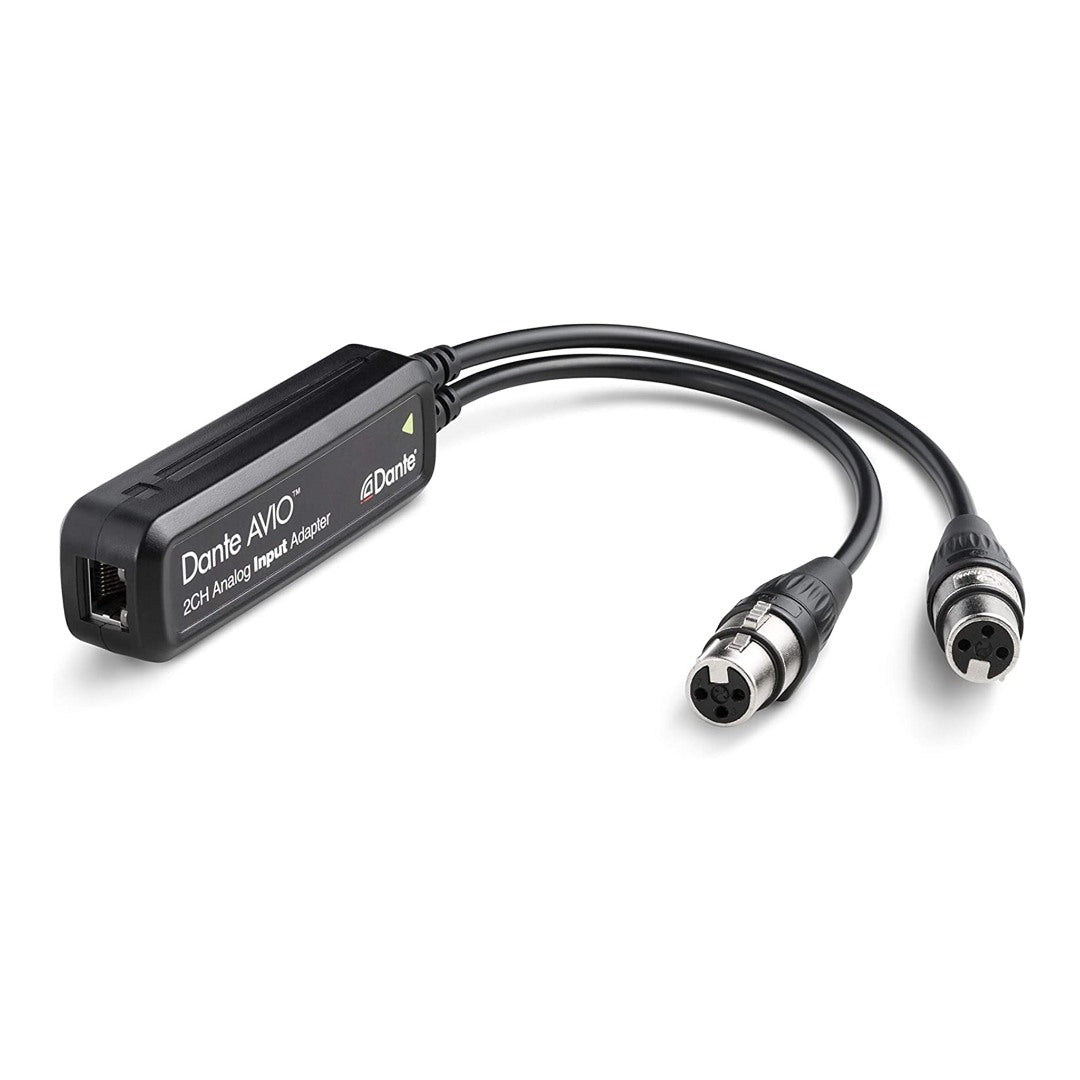

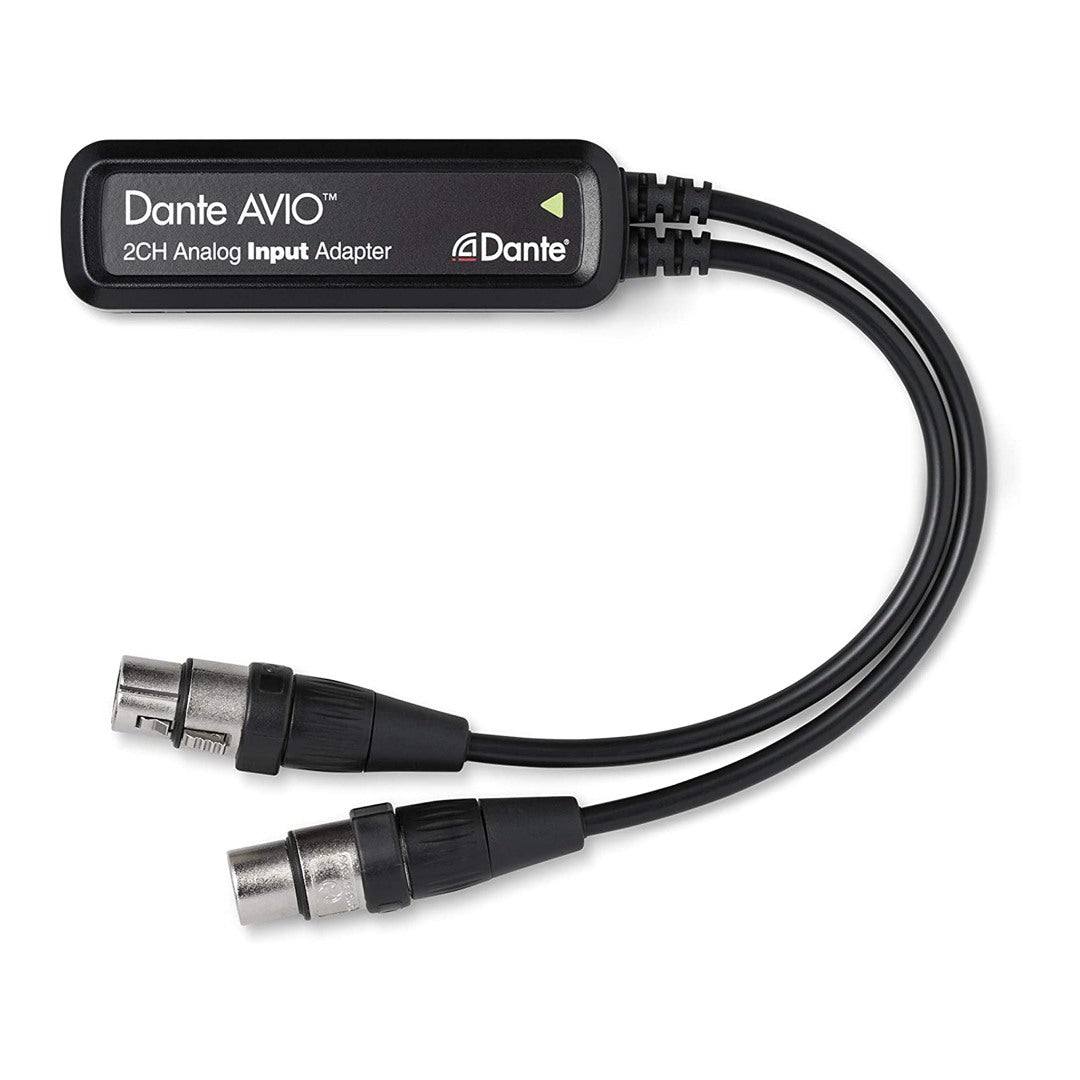

ADP-DAI-AU-2X0 Audinate Dante AVIO - Analog Input Adapter 2-Channels XLR F
ADP-DAI-AU-2X0 Audinate Dante AVIO - Analog Input Adapter 2-Channels XLR F
Dante AVIO Analog Inputs let you use analog audio line-level source gear you already own to feed any Dante-connected system. Don’t abandon trusted mixing consoles, wireless mics and other analog sources - adapt them to the world of audio networking with Dante AVIO. Supports two channels of analog audio in...
Delivery
S2Store Genk (BE)
Combination deal
Audinate Dante AVIO Set 2 Channel XLR
- 1x ADP-DAI-AU-2X0 Audinate Dante AVIO - Analog Input Adapter 2-Channels XLR F€249,00
- 1x ADP-DAO-AU-0X2 Audinate Dante AVIO - Analog Output Adaptor 2-Channels XLR M€249,00
Pros and Cons
Description
ADP-DAI-AU-2X0 Audinate Dante AVIO - Analog Input Adapter 2-Channels XLR F
ADP-DAI-AU-2X0 Audinate Dante AVIO - Analog Input Adapter 2-Channels XLR F
Dante AVIO Analog Inputs let you use analog audio line-level source gear you already own to feed any Dante-connected system. Don’t abandon trusted mixing consoles, wireless mics and other analog sources - adapt them to the world of audio networking with Dante AVIO. Supports two channels of analog audio input.

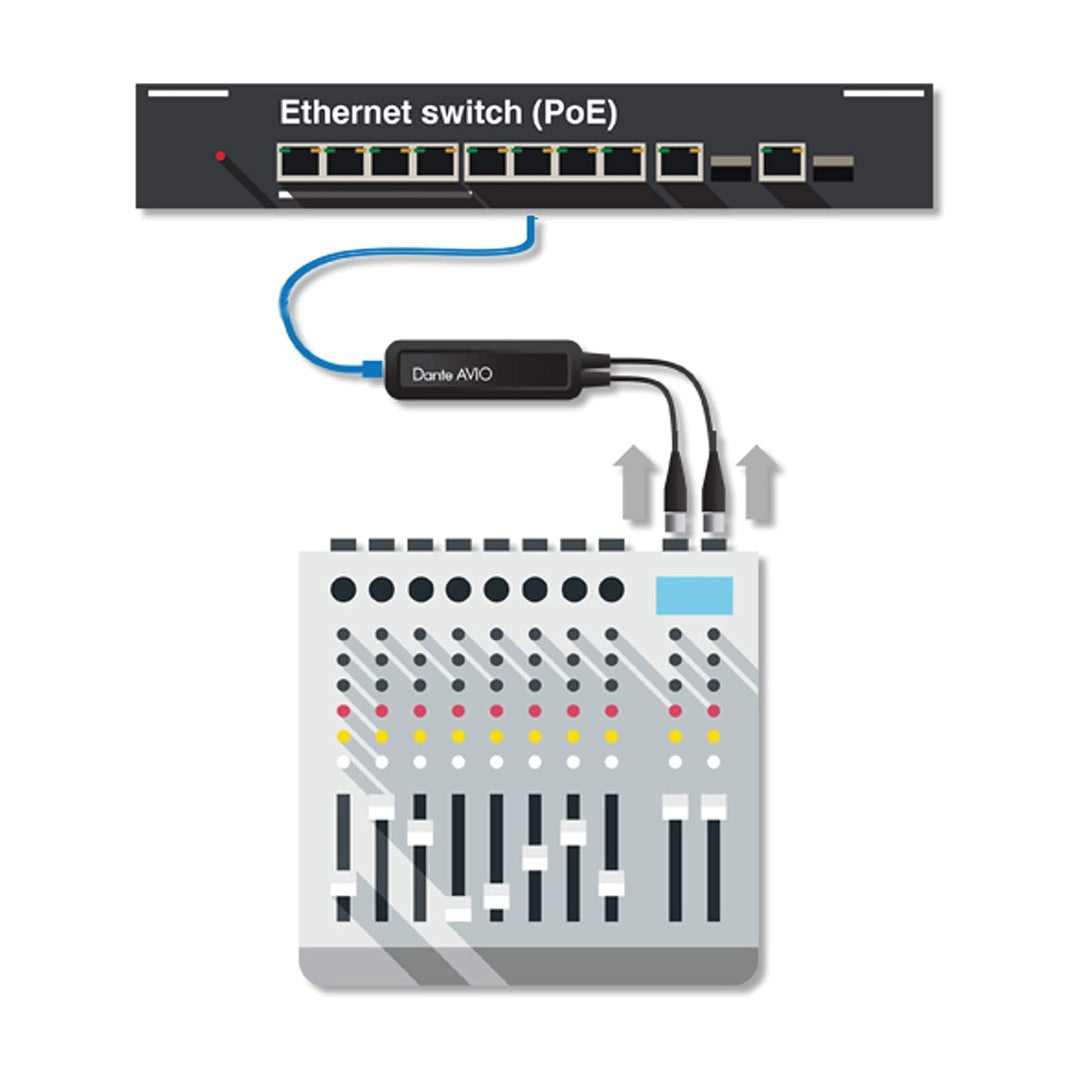

- Connect legacy mixers and consoles to a Dante network
- Patch DSPs, analog compressors and equalizers into a Dante system using a combination of Dante AVIO Input and Output adapters
- Connect stage DI boxes and keyboard instruments directly to a Dante network
Note that Dante AVIO adapters require a Power over Ethernet (PoE) switch or 802.3af compliant PoE injector.
Brief specifications
| Sound | |
|---|---|
| Dynamic range | > 100dB |
| Frequency response | 20Hz to 20kHz (-/+0.5dB) |
| Impedance | 20k Ohm balanced 10k Ohm unbalanced |
| Signal-to-noise ratio | > 100dB |
| THD (total harmonic distortion) | < 0.01% at +4dBu |
| Digital audio | |
|---|---|
| Bit depth | 24 |
| Sample rate | 44.1, 48, 96 kHz |
| Cable | |
|---|---|
| Connectors | RJ45 & 2 XLR-F |
