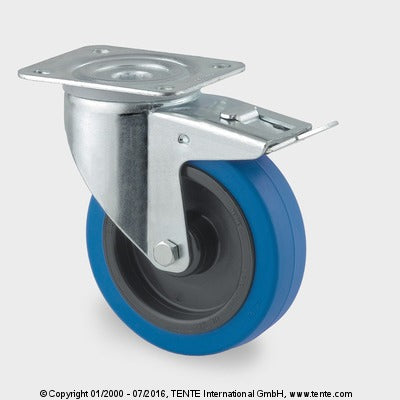

SWIVEL CASTOR BLUE TENTE

477UFR100P62 blue

Description:

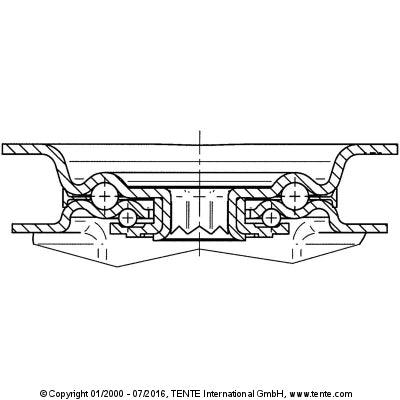

Swivel castor with total lock, tail end of castor, housing made of pressed steel, bright zinc plated, blue passivated, double ball bearing swivel head, wheel axle with nut, dustguard, plate fitting. Wheel centre made of Polyamide, Tread: elastic-tyre, non-marking, roller bearing.

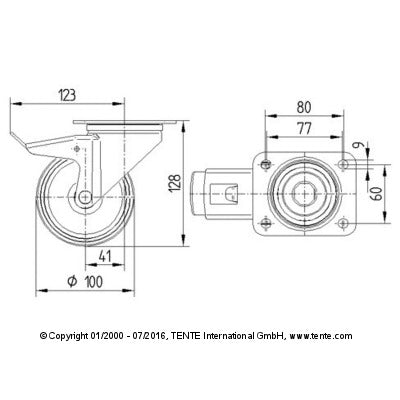

Technical Data

• Wheel diameter: 100 mm

• Width of Tread: 34 mm

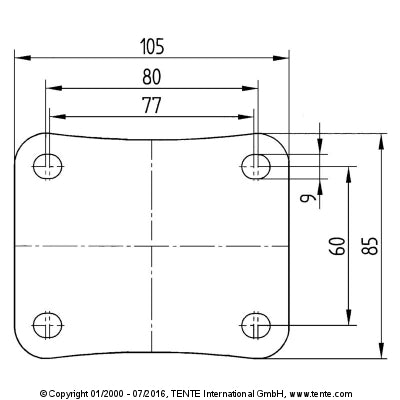

• Size of Plate: 105 x 85 mm

• Plate hole centres: 80/77 x 60 mm

• Plate hole: 9 mm

• Offset: 41 mm

• Swivel Interference: 246 mm

• Overall height: 128 mm

• Temperature: - 20 / + 80 °C

• Standard: EN 12532

• Weight: 1.046 kg

• Swivel Radius: 123 mm

• Hardness of tread: Shore A 64

• Load capacity: 160 kg

• Load capacity (static): 320 kg
