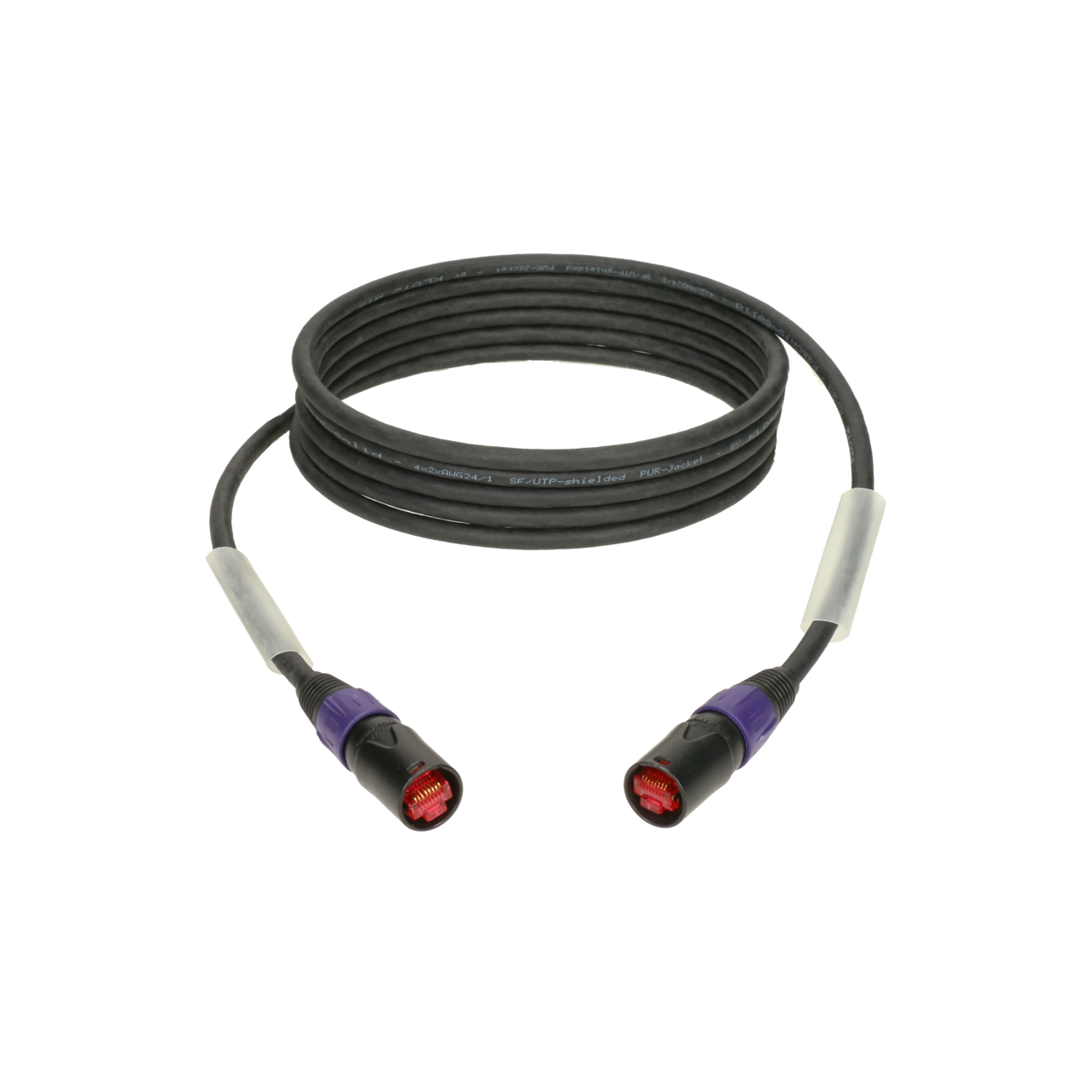

CAT5E NETWERKKABEL etherCON Ram CAT SF/UTP KLOTZ 5M
Double shielded data cable RamCAT with solid conductors, PE-X element and PUR outer jacket. Thanks to AWG24 solid conductors it allows EtherSound™ up to 120 metres. The suitability for mobile use is reached by the special construction with a cross-shaped twisting element and durable PUR outer jacket. The conductor isolation of foam-skin PE allows the assembly with RJ45 connectors.
&nbs...
Delivery
S2Store Genk (BE)
Combination deal
SQ-6 + 2X DX168 + 50M CAT5 Ethercon reel + 5M CAT5 Link cable
2x
- 1x SQ-6 Allen&Heath 48-channel Digitale mixer€3.089,00
- 2x DX168 Allen&Heath 16in/8out Audiorack Stageblock€2.938,00
- 1x RCBEEW050 RamCat KLOTZ Network cable (50m)€497,00
- 1x CAT5E NETWERKKABEL etherCON Ram CAT SF/UTP KLOTZ 5M€65,00
Pros and Cons
Description
CAT5E NETWERKKABEL etherCON Ram CAT SF/UTP KLOTZ 5M
Double shielded data cable RamCAT with solid conductors, PE-X element and PUR outer jacket. Thanks to AWG24 solid conductors it allows EtherSound™ up to 120 metres. The suitability for mobile use is reached by the special construction with a cross-shaped twisting element and durable PUR outer jacket. The conductor isolation of foam-skin PE allows the assembly with RJ45 connectors.
RCBEE
- SF/UTP (overall foil + braid shield)
- robust PUR overall jacket
- EtherSound™ tested by Digigram up to 120 m
- MADI tested by Soundcraft / Studer up to 120 m including two breakout panels and safety margin
- GLD and iLive ACE/dSnake tested by Allen&Heath up to 120 m
- Dante™ tested by YAMAHA UK up to 120 m, recommended up to 100 m - incl. extended error safety margin at 1 Gbit/s
- with transparent heat shrink for free labeling
Brief specifications
| Cable | |
|---|---|
| Connectors | pinout: TIA / EIA 568-B |
| Cable length | 5 M |
| Cable type | RC5-SB1X - 4x 2x 0.52 mm (AWG 24/1) solid bare copper, PUR jacket, Ø 7.1 mm |
| Connectivity | |
|---|---|

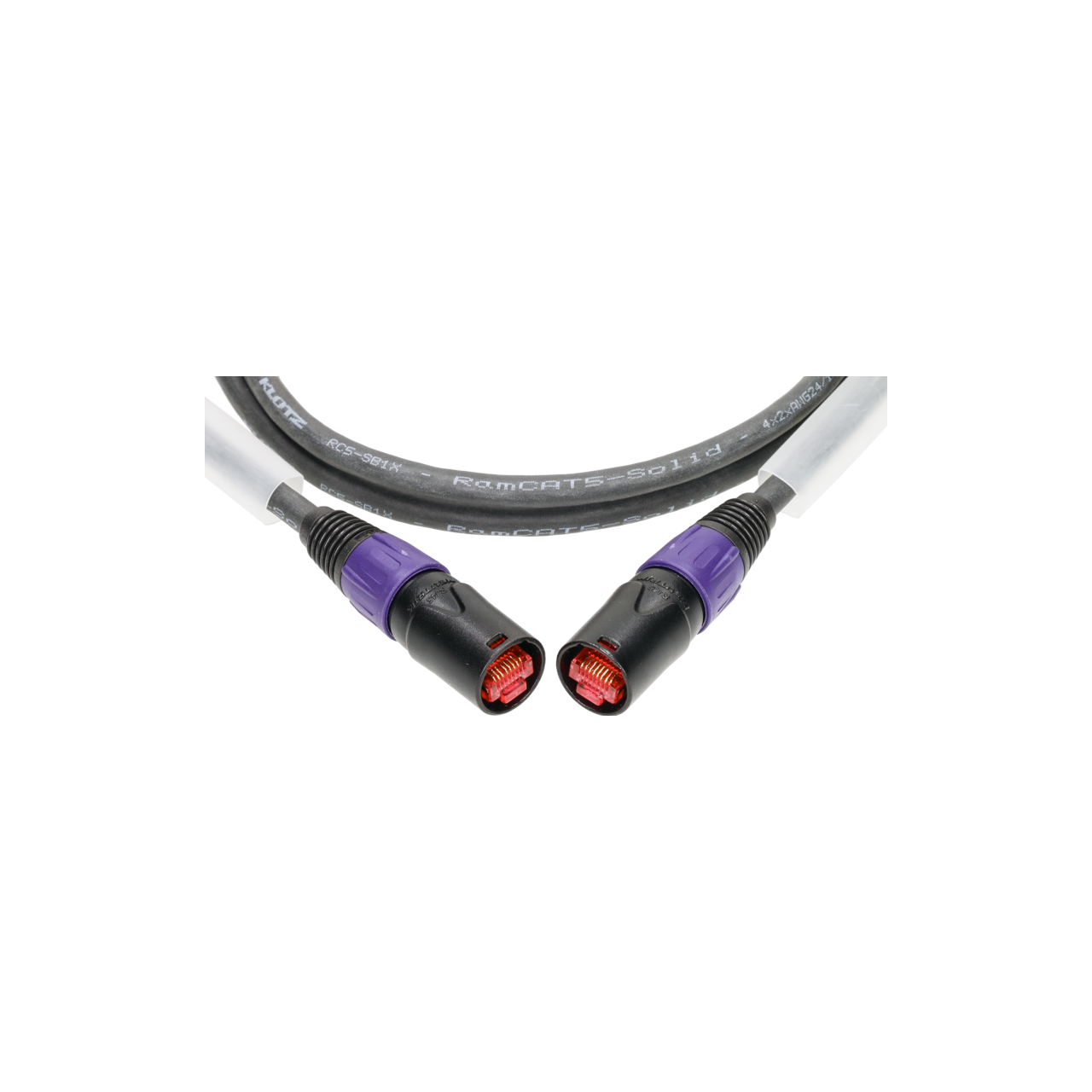

| Ethernet | connector 1: CAT5e etherCON RJ45 / connector 2: CAT5e etherCON RJ45 |
