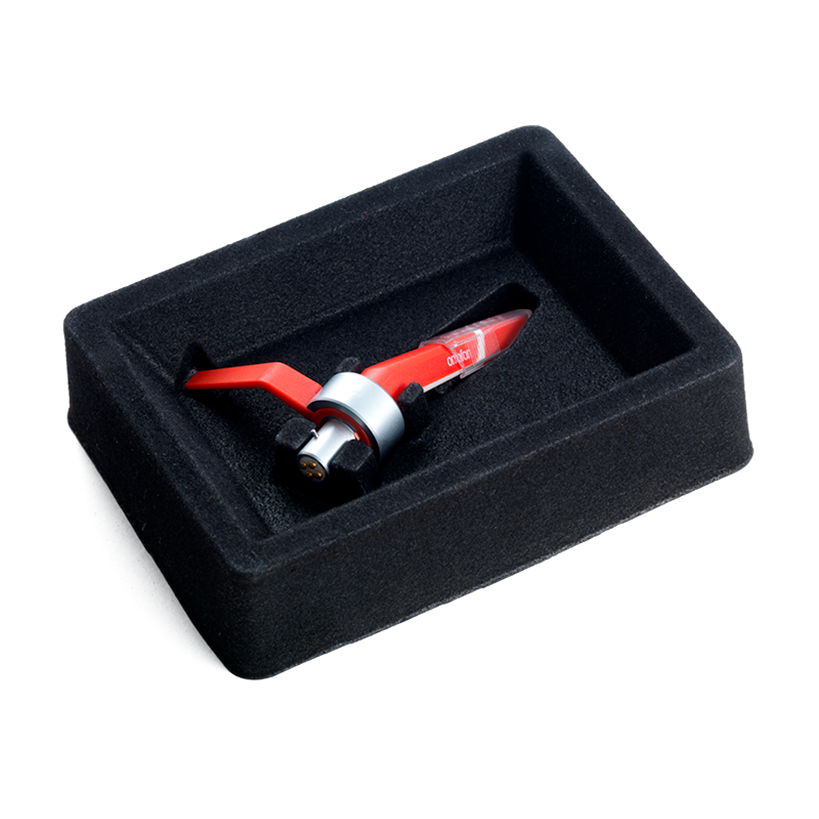

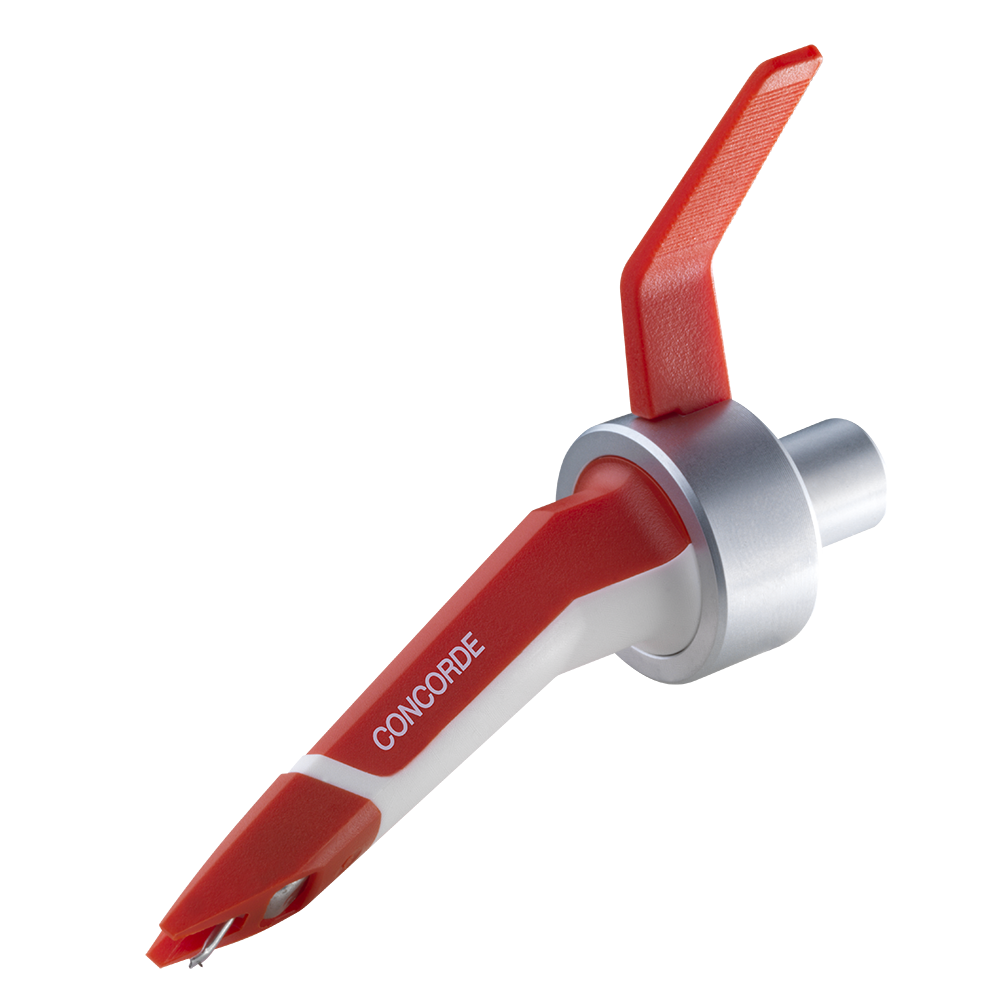

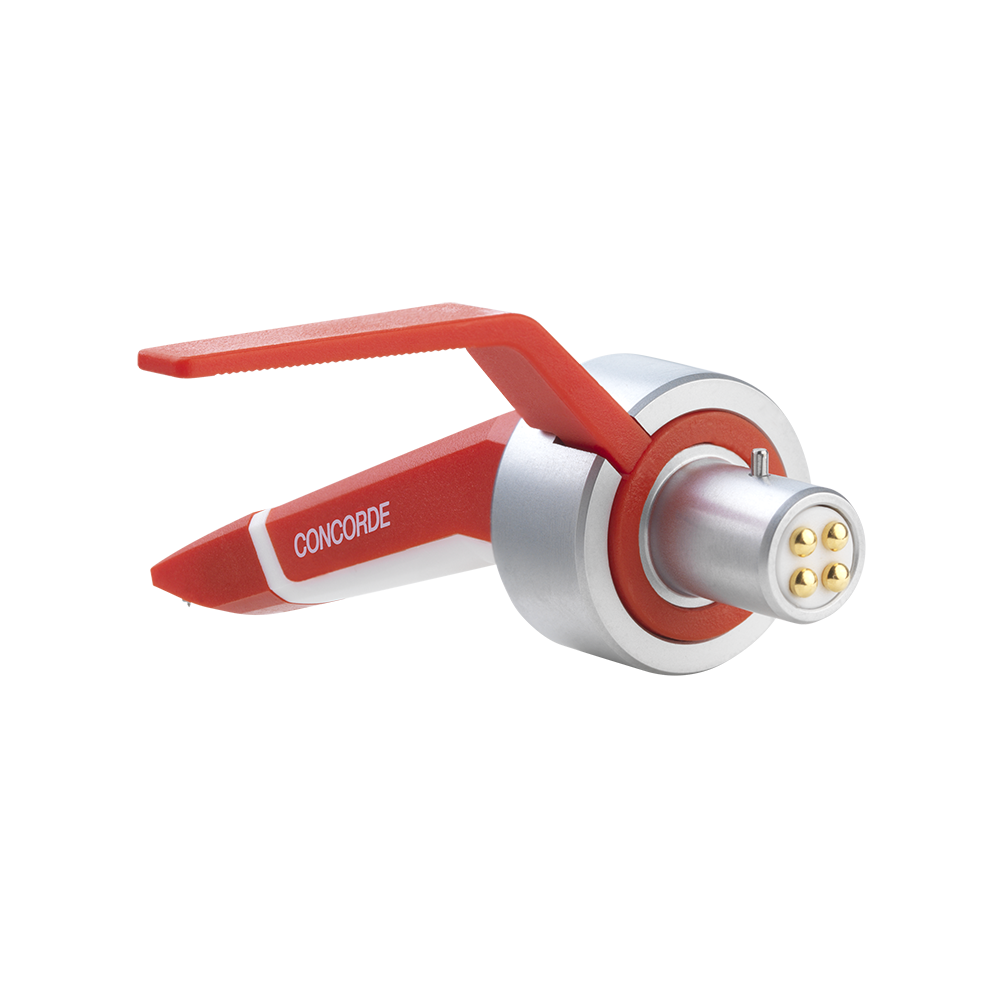

DIGITAL CONCORDE MK II ORTOFON SINGLE CARTRIDGE - single cartridge from the Digital Concorde MK II

The Digital Concorde MKII was specially designed to reduce wear on vinyl

The Digital Concorde delivers an optimal output voltage and sound quality for use with conventional vinyl. This optimised 10 mV output voltage maximises the signal-to-noise ratio of the audio signal fed into the software, resulting in a better interpretation of the timecode signal. Furthermore, a reduction in the reproduction of frequencies where crackles and interference are caused by repeated playback of the vinyl.

Specifications

• Output voltage at 1000 Hz, 5cm/sec – 10m V
• Channel balance at 2 kHz – 1 dB
• Channel separation at 1 kHz – 22 dB
• Channel separation at 15 kHz – 15 dB
• Frequency range at - 3 dB – 18000 Hz
• Tracking ability at 315 Hz at recommended tracking force ) 100 μm
• Dynamic lateral compliance - 14 μm/m N

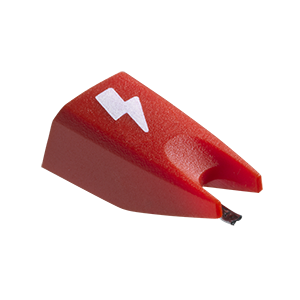

• Stylus type – spherical R 18 μm
• Tracking force range 3-5 gr
• Recommended tracking force – 4 gr
• Cartridge weight – 18.5 gr
