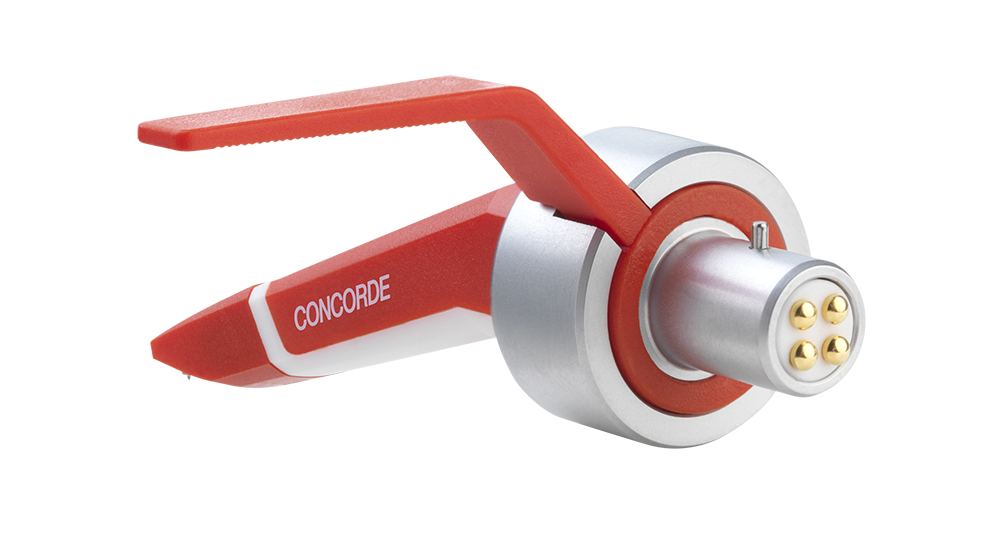

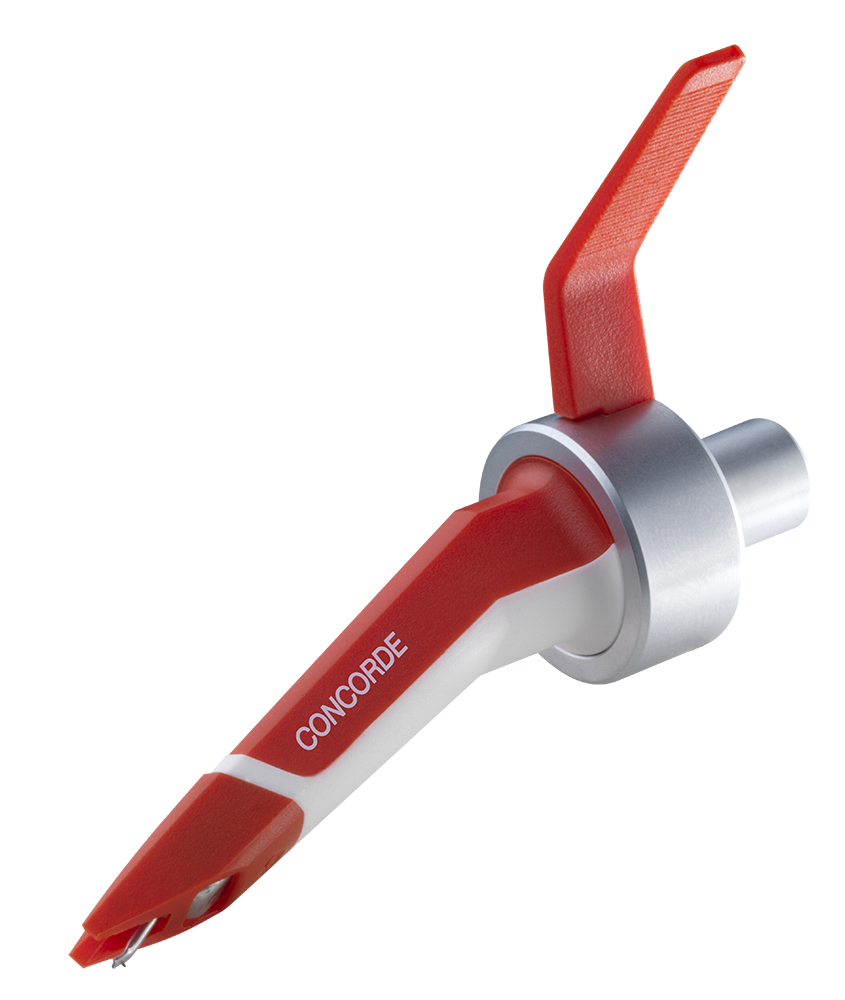

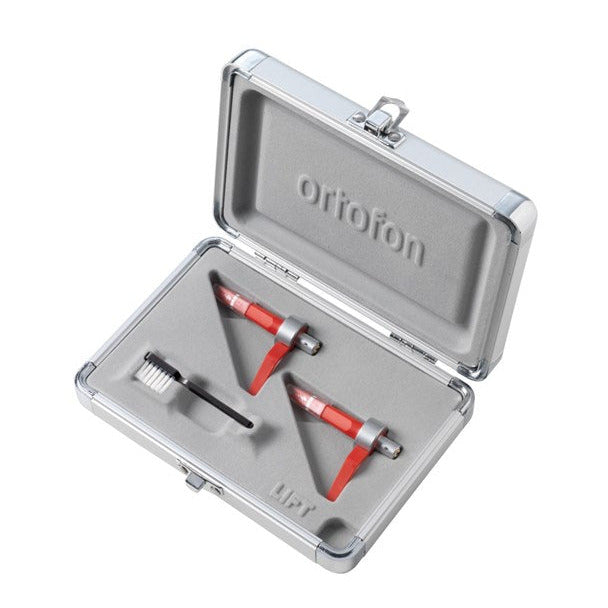

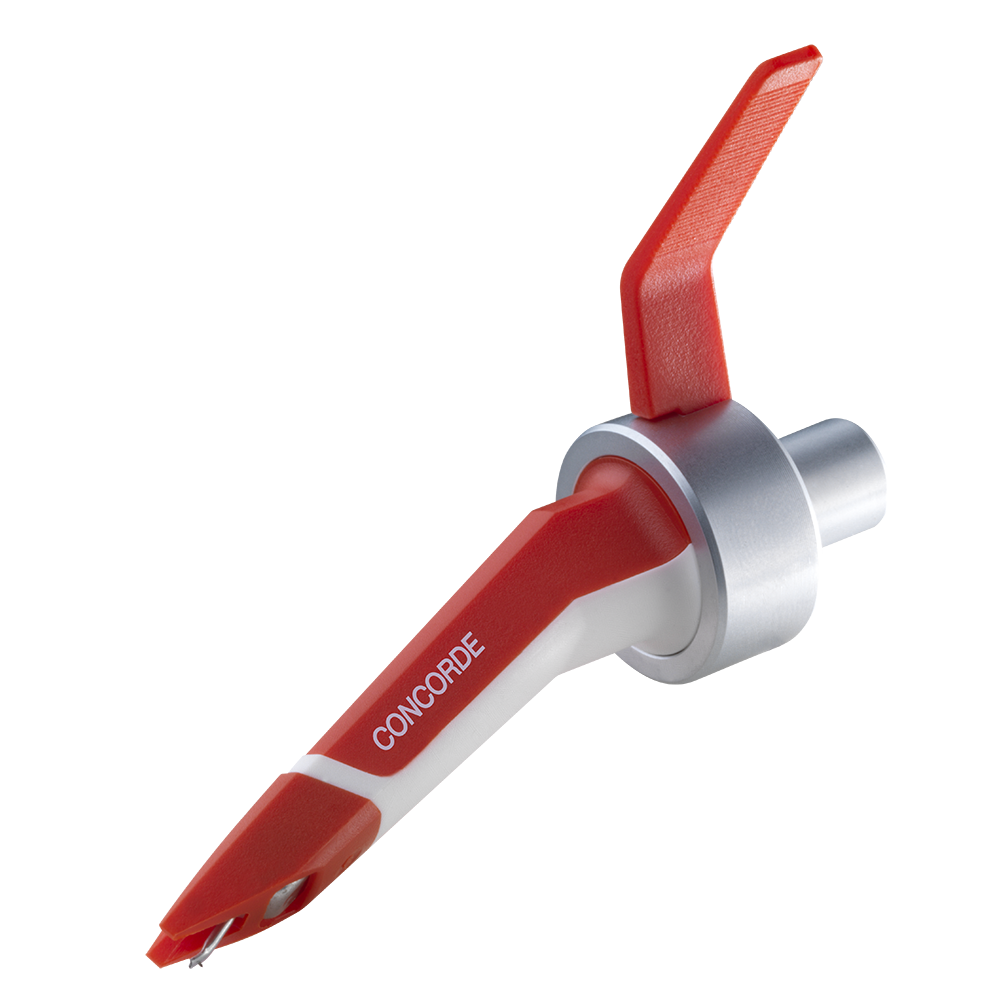

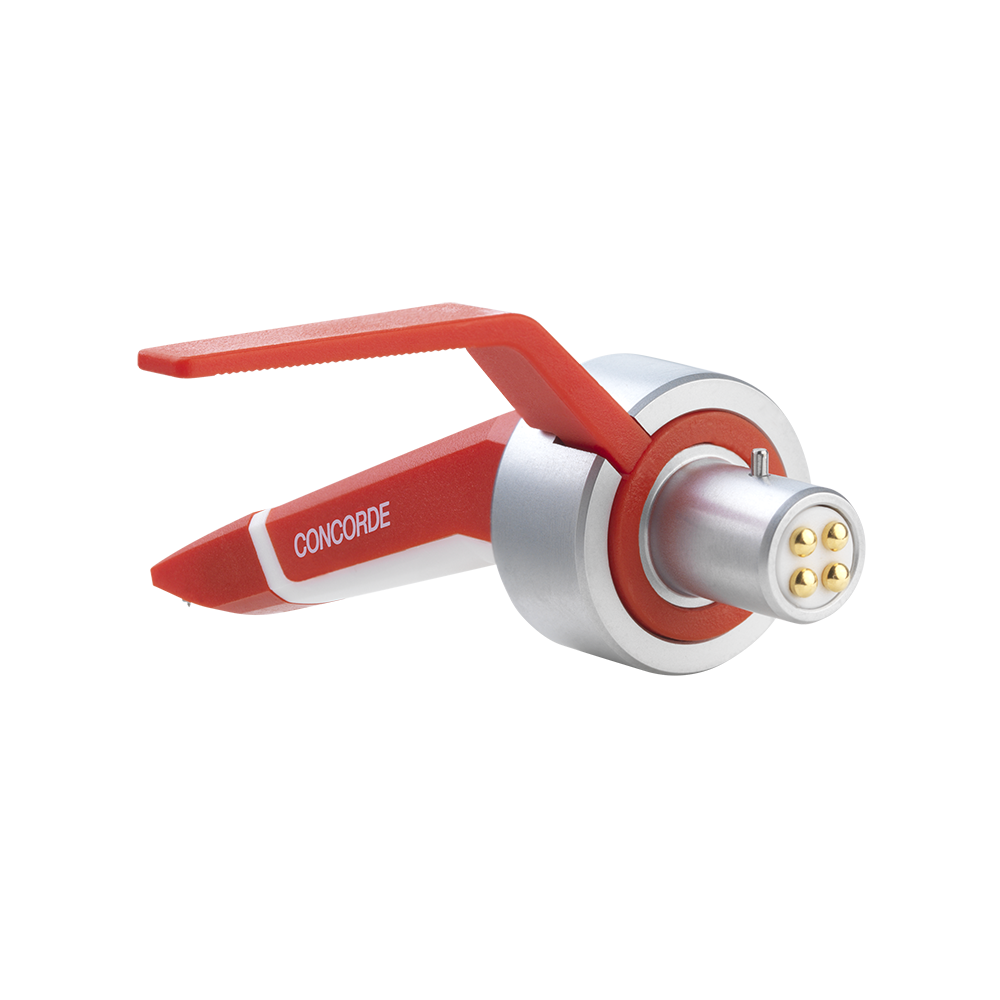

CONCORDE MKII DIGITAL TWIN SET ORTOFON - Pair of needles optimised for timecode vinyl

The Concorde Digital was specially designed for an extended lifespan of timecode vinyls and with a minimal error margin in decoding. The Digital version also delivers an optimal output voltage and sound quality for use with conventional vinyl records. This optimised 10mV output voltage maximises the signal-to-noise ratio of the audio sent to the software, resulting in a more accurate interpretation of the timecode signal. A reduction in the reproduction of frequencies where vinyl wear and crackles occur also contributes to a more accurate interpretation of the timecode signal and significantly extends the lifespan of the timecode vinyl.

• The Digital is specially designed for use with timecode vinyl.

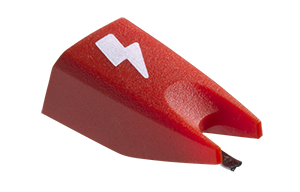

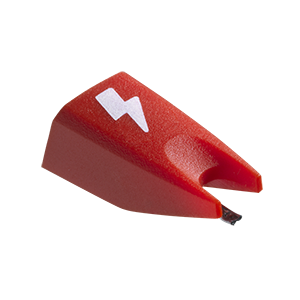

• Features a spherical stylus and an extremely balanced cantilever with excellent rigidity.
• Not only does this cantilever provide the most stable tracking, it also delivers the required precision and extremely low vinyl wear.

Technical Specifications

• Output voltage at 1000Hz, 5 cm/sec – 10 mV
• Channel balance at 1kHz – 1dB
• Channel separation at 1kHz – 22 dB
• Channel separation at 15kHz – 15 dB
• Frequency range at -3 dB – 20-18.000 Hz
• Tracking force at 315 Hz at recommended tracking force – 100 μm
• Compliance, dynamic lateral – 14 μm/m N
• Stylus type – stylus shape – Spherical R 18 μm
• Tracking force range – 3-5 g
• Recommended tracking force – 4 g
• Cartridge weight: 18.5 g
