DIG-110 AES-EBU 110 OHM DIGITAL CABLE 100M - DAP-AUDIO
Regular price
€135,00
Unit price
per
DIG-110 AES-EBU 110 OHM DIGITAL CABLE 100M - DAP-AUDIO
Specifications
-
Conductor drains Ø mm: OFC 18 x 0,10
-
Conductor insulation: FPE red+white
-
Conduc...All product information
In stock (1)
S2 Ref: D9433B
Delivery
In stock
S2Store Genk (BE)
In stock
Pros and Cons
Description
DIG-110 AES-EBU 110 OHM DIGITAL CABLE 100M - DAP-AUDIO
DIG-110 AES-EBU 110 OHM DIGITAL CABLE 100M - DAP-AUDIO

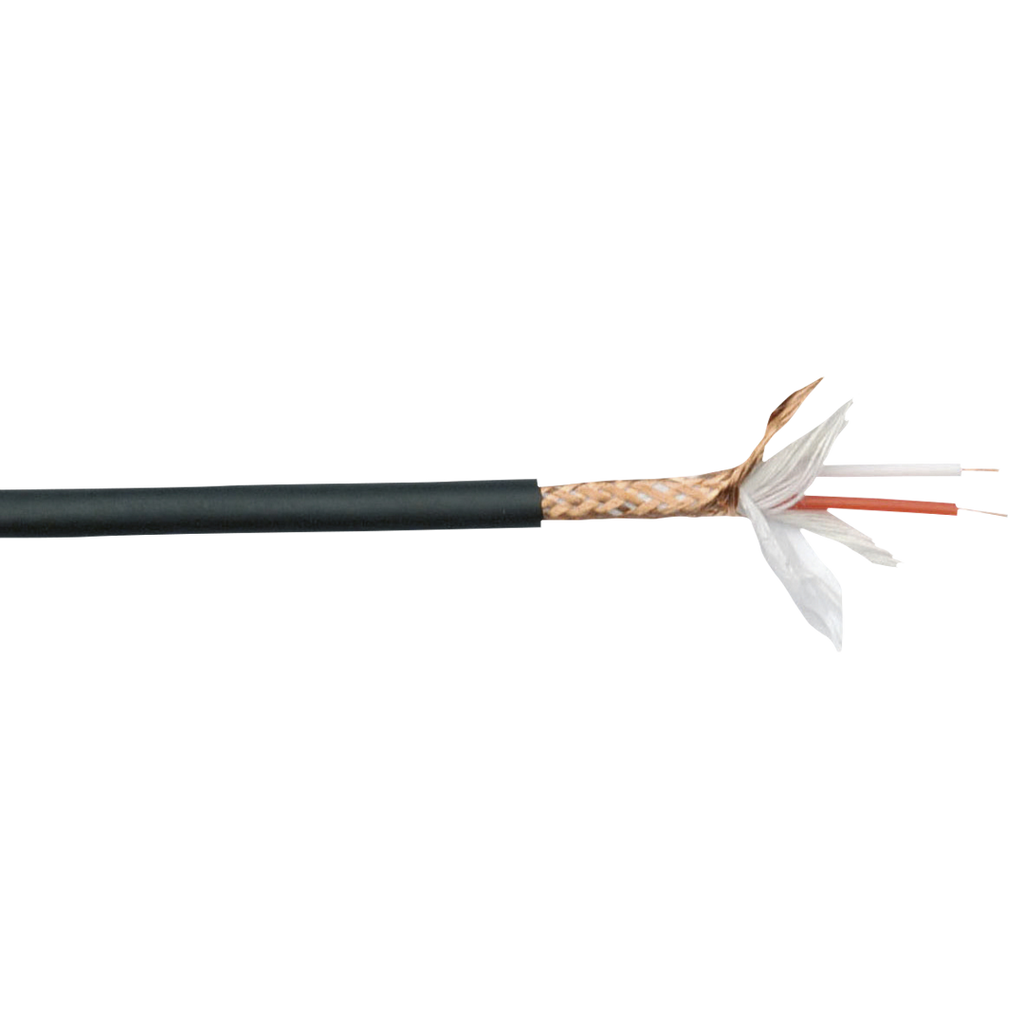

Specifications
-
Conductor drains Ø mm: OFC 18 x 0,10
-
Conductor insulation: FPE red+white
-
Conductor insulation: 1,9 (Ø in mm)
-
Filler material: paper + cotton yarn
-
1st shield: OFC braided 128 x 0,12
-
Outer isolation: PVC black+blue
-
Outer isolation Ø in mm: 6
-
Conductor resistance: 130 Ohm/Km
-
Shield resistance: 12.5 Ohm/Km
-
Capacity Inner conductor: 35 pF/m
-
Cap. Inner conduct. Shield / Inner conduct.: 52 pF/m
-
Working temperature min. / max.: -20~60 °C
-
Working Voltage overflash: 30V
-
Nom Impedance: 110 Ohm
Brief specifications
| Cable | |
|---|---|
| Number of cores x cross-section | 2 x 1.8 mm² |
| Conductor resistance | 130 Ω/km |
| Cable color | Zwart |
