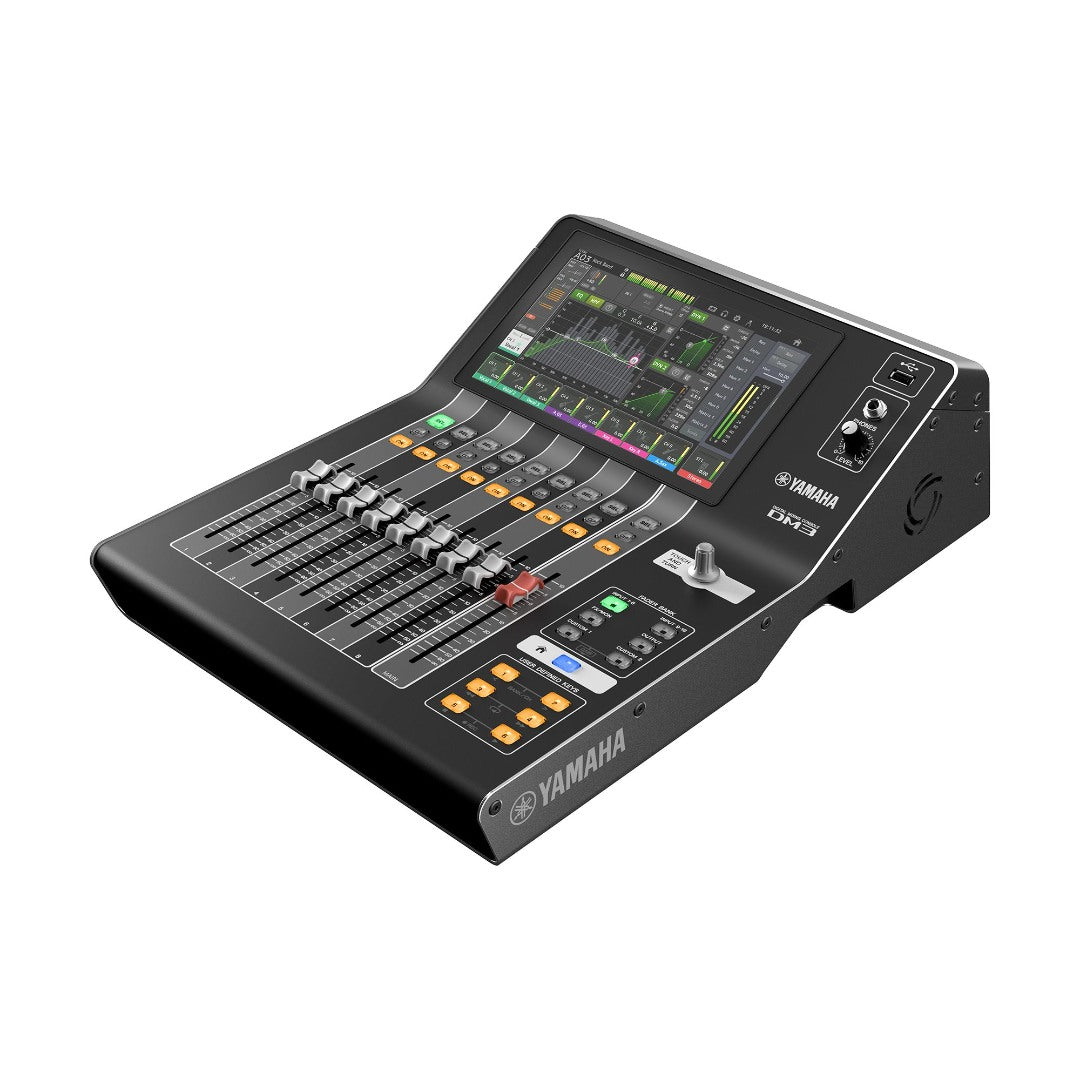

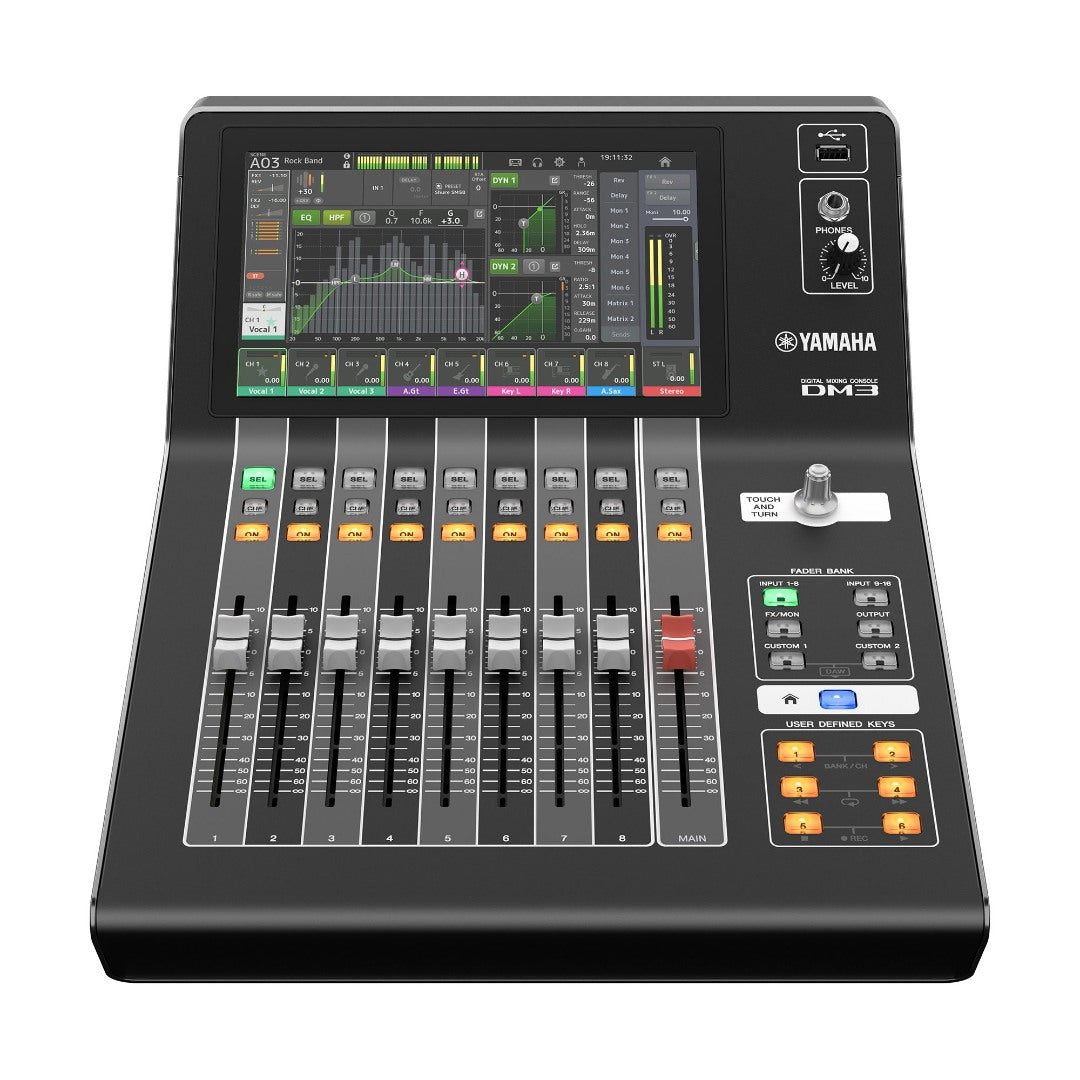

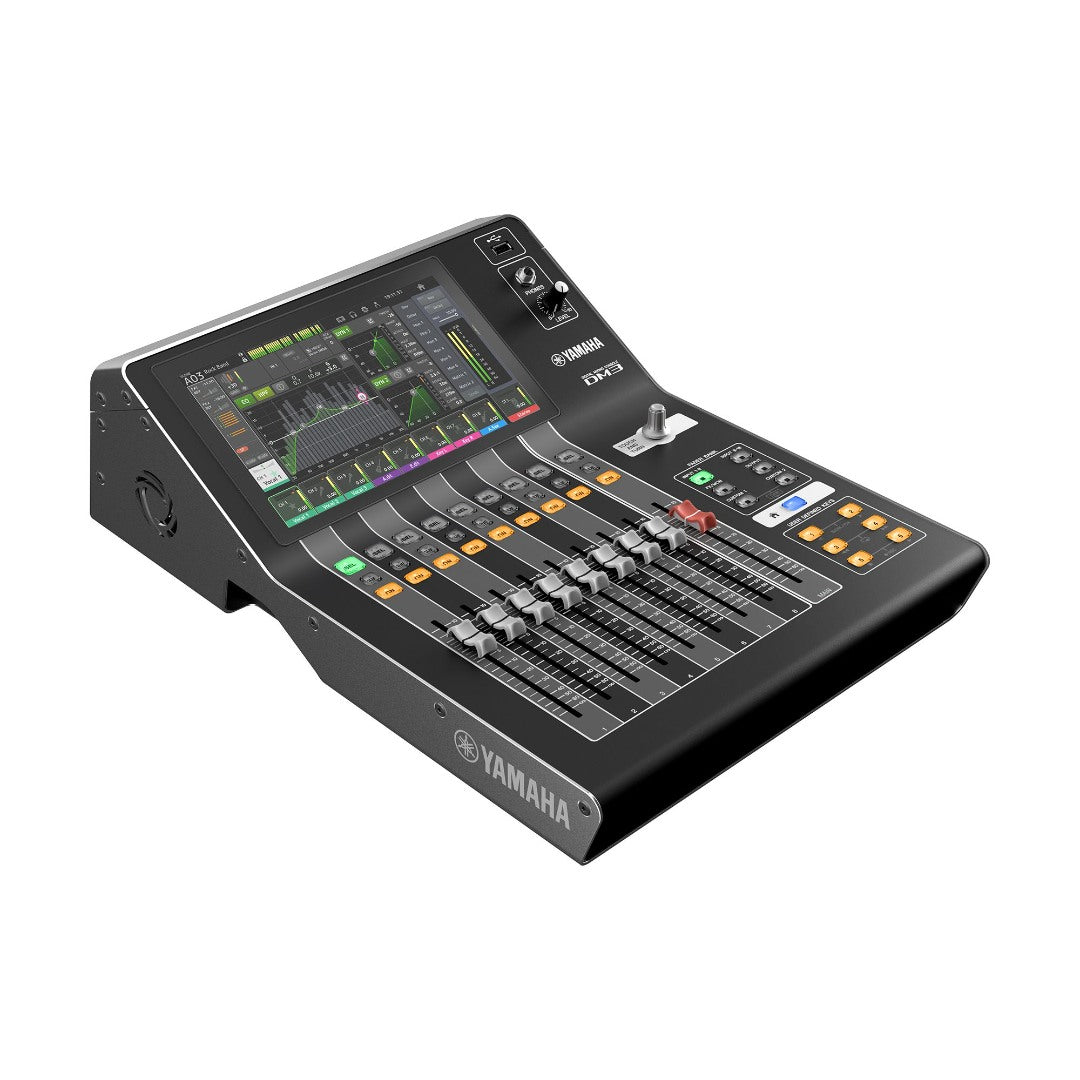

DM3 Yamaha 18-Channel Digital Mixing Console (with Dante)
DM3 Yamaha 18-Channel Digital Mixing Console (with Dante)
Transporting, unloading and setting up a sound reinforcement system at a venue can be one of the most labour-intensive tasks for a sound engineer. Not so with the DM3 series, which requires less space and time for configuration and physical setup thanks to flexible patching and Quick Pro Presets, Editor and StageMix software and Dante compatibility (DM3 model only), significantly reducing system installation and configuration time. Combining all of this with 6 mix + 2 matrix + 2 effects processors, the DM3 Series are powerful, compact, robust consoles you can take anywhere.
Brief specifications
| Housing | |
|---|---|
| Dimensions | 320 mm × 140 mm × 455 mm |
| Weight | 6.5 kg |
| Sound | |
|---|---|
| Crossover frequency | -100 dB, adjacent INPUT/OMNI OUT channels, Input Gain= Min. @1 kHz*3 |
| Dynamic range | 110 dB typ., DA Converter, 106 dB typ., INPUT to OMNI OUT, Input Gain=Min. |
| Frequency response | +0.5, -1.0 dB 20 Hz-20 kHz, reference to the nominal output level@1 kHz, INPUT to OMNI OUT |
| THD (total harmonic distortion) | Less than 0.01 % 20 Hz - 20 kHz@+4 dBu into 10 kΩ, INPUT to OMNI OUT, Input Gain= Min*1 |

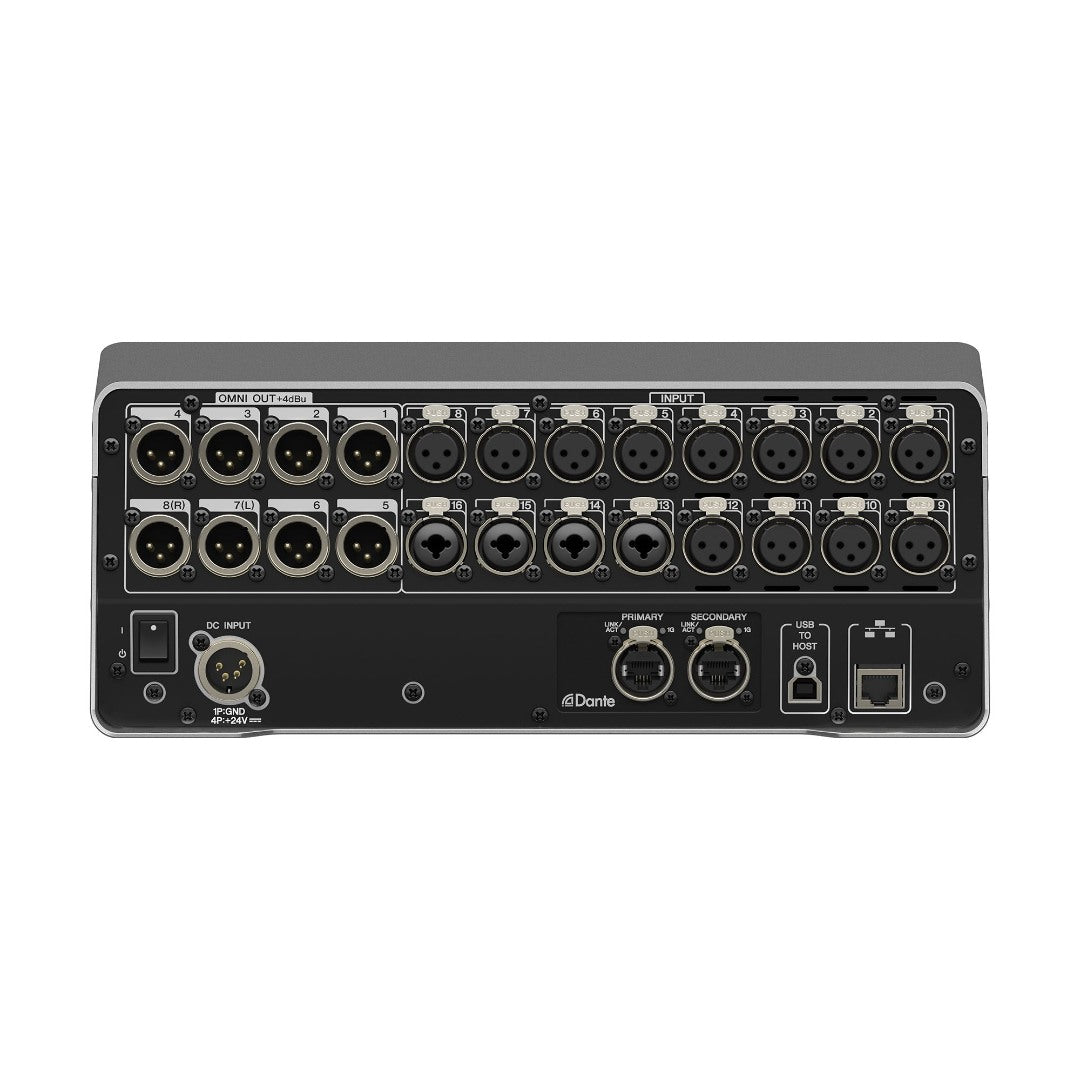

| Audio I/O | |
|---|---|
| Inputs | 16 mono + 1 stereo + 2 FX return |
| Outputs | 8 (XLR) outputs |
| Digital audio | |
|---|---|
| Sample rate | 48kHz/96kHz |
| Terminals | |
|---|---|
| Inputs | Dante: 16 inputs, and 16 outputs |
| Controls | |
|---|---|
| Faders | 8 + 1 fader configuration |
