DM7 Compact Yamaha Digital Mixing Console
DM7 Compact Yamaha Digital Mixing Console
The DM7 Compact is a Dante-equipped versatile digital mixing console with unparalleled sound quality, ease of operation, and high reliability that make it perfect for a wide range of applications. The DM7 Compact is configured with 12 + 4 faders and a 1 x 12” + 1 x 7” multi-touch screen, and a rack-mountable with an optional RK1 rack mou...
Delivery
S2Store Genk (BE)
Pros and Cons
Description
DM7 Compact Yamaha Digital Mixing Console
DM7 Compact Yamaha Digital Mixing Console

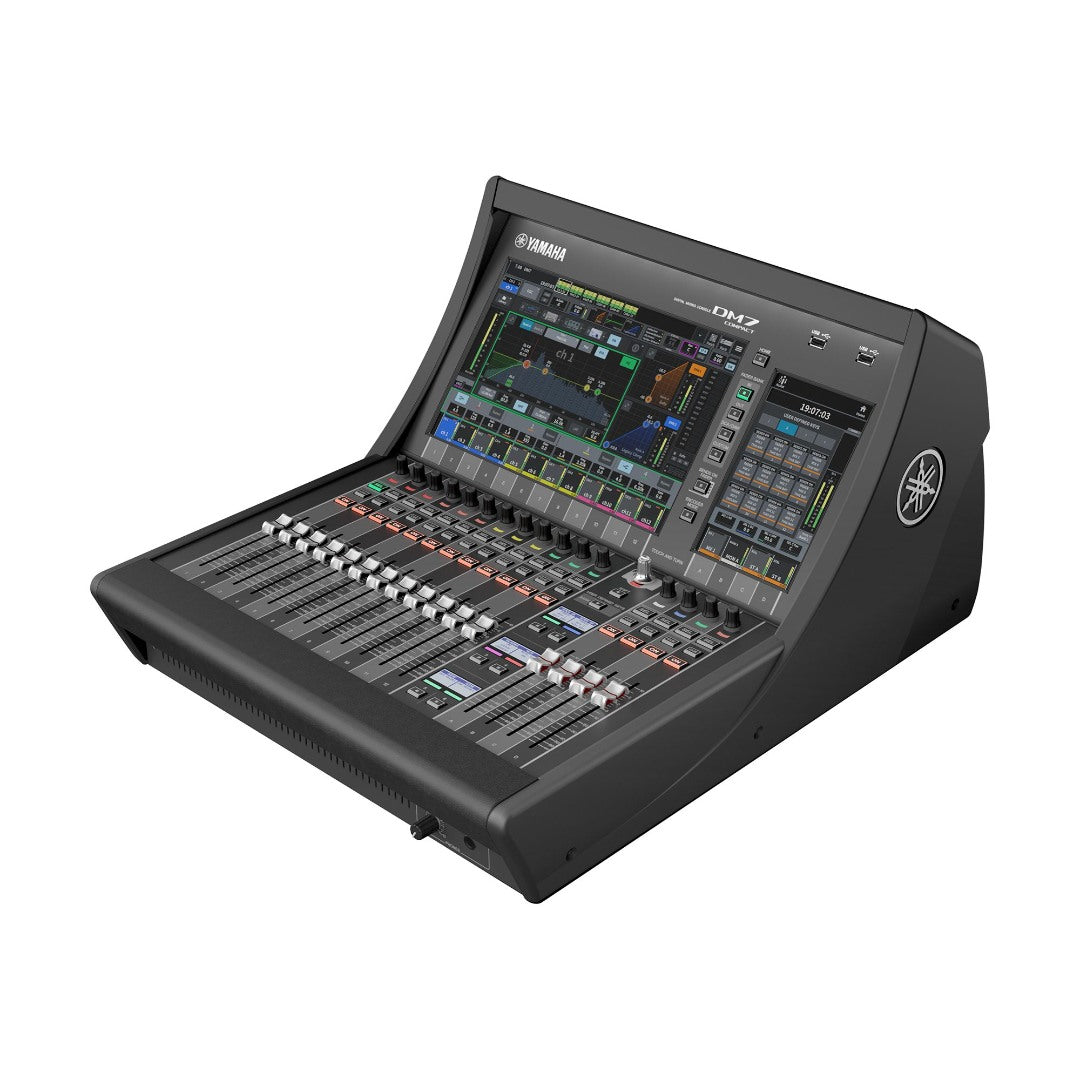

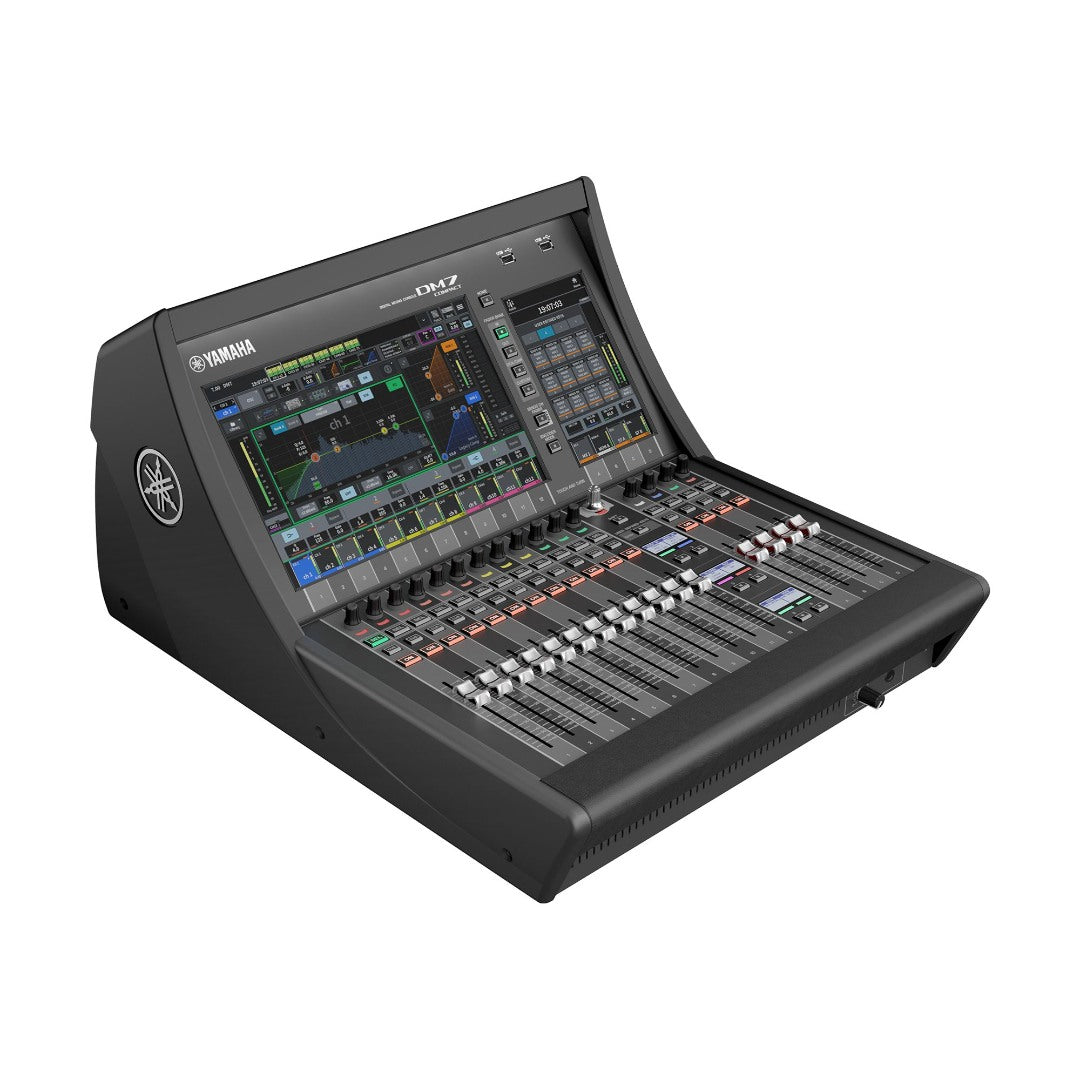

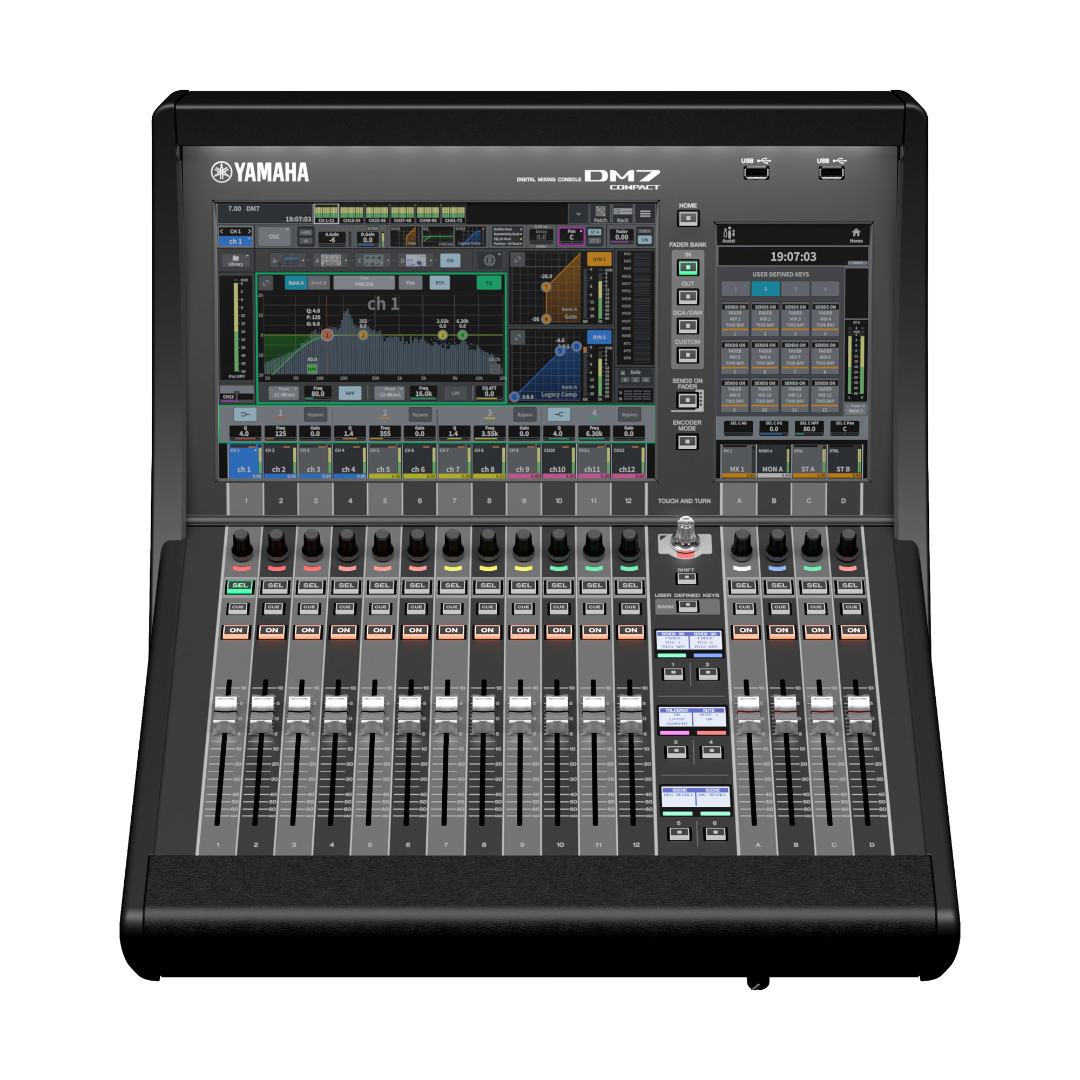

The DM7 Compact is a Dante-equipped versatile digital mixing console with unparalleled sound quality, ease of operation, and high reliability that make it perfect for a wide range of applications. The DM7 Compact is configured with 12 + 4 faders and a 1 x 12” + 1 x 7” multi-touch screen, and a rack-mountable with an optional RK1 rack mount kit.
- Input mixing channels: 72 mono
- Buses: 48 Mix + 12 Matrix + 2 Stereo
- Display: 12.1" multi-touch screen x 1, 7" multitouch screen x 1
- Faders: 16 (12 + 4)

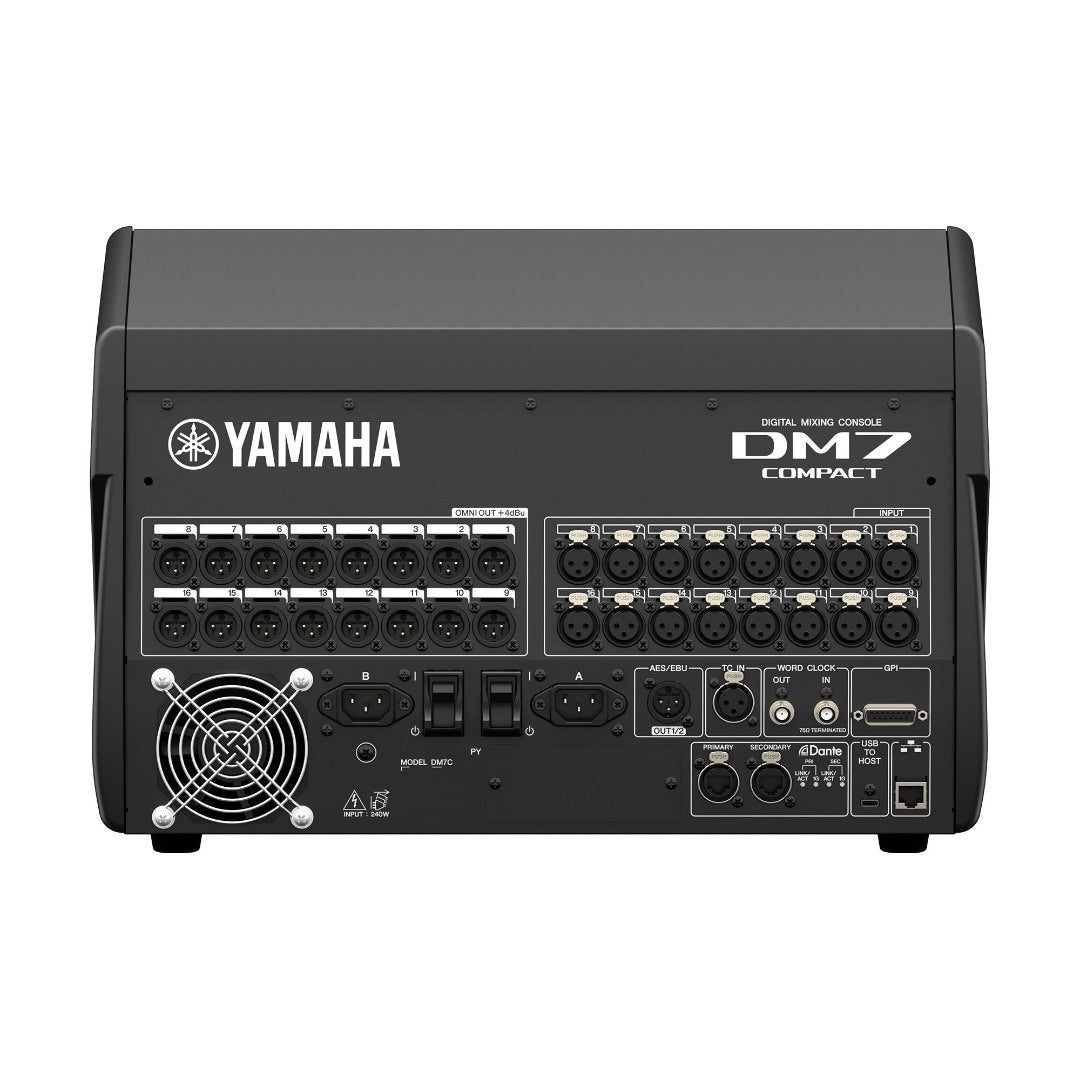

- Analog I/O: 16 inputs / 16 outputs
- Dante: 144 in / 144 out
- AES/EBU: 1 out
- Slot: PY Slot x 1
- USB Audio Interface: 18 in / 18 out
- Power supply: Redundant power supply built-in
Brief specifications
| Housing | |
|---|---|
| Dimensions | 468 x 324 x 564 mm |
| Weight | 16.5 kg |
| Power supply | |
|---|---|
| Consumption | 240 W |
| Audio I/O | |
|---|---|
| Channels | Analog I/O: 16 inputs / 16 outputs |
| USB connection | |
|---|---|
| Number of input channels | 18 |
| Number of output channels | 18 |
