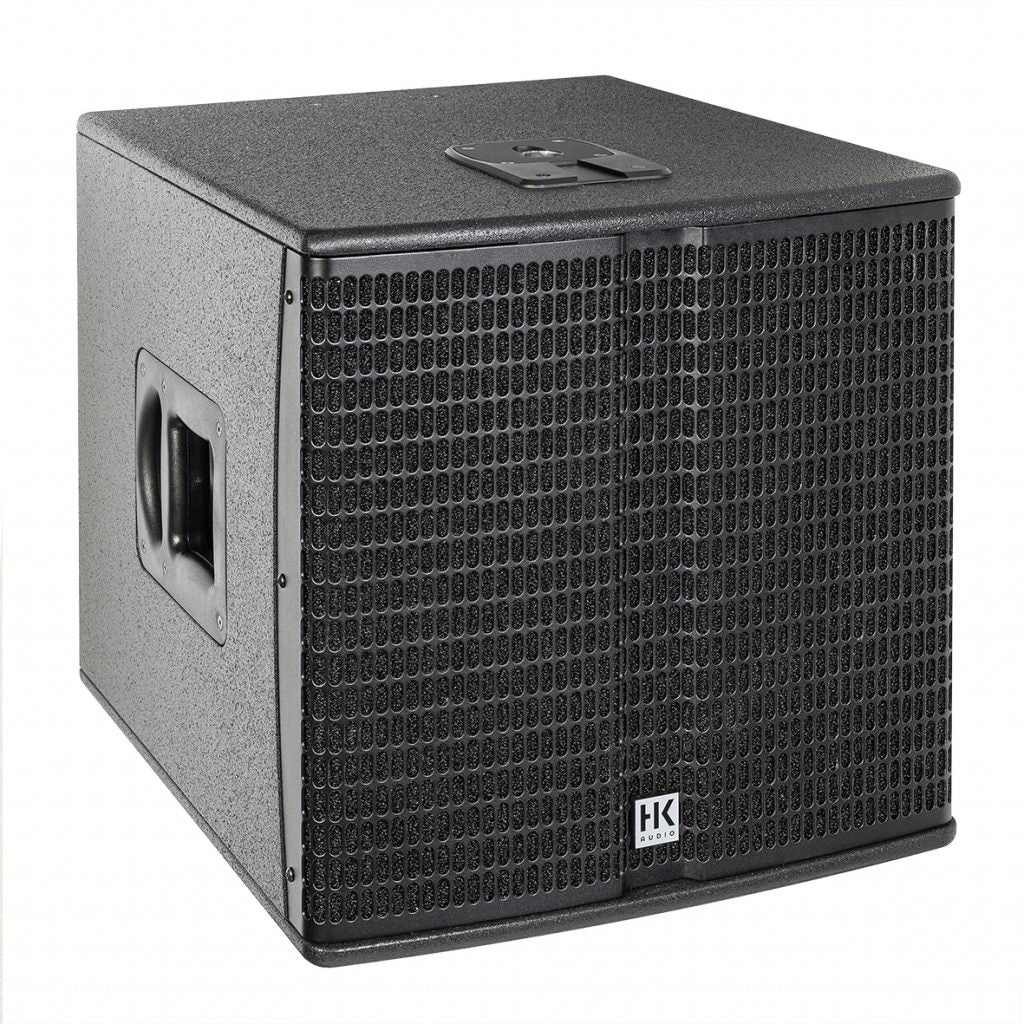

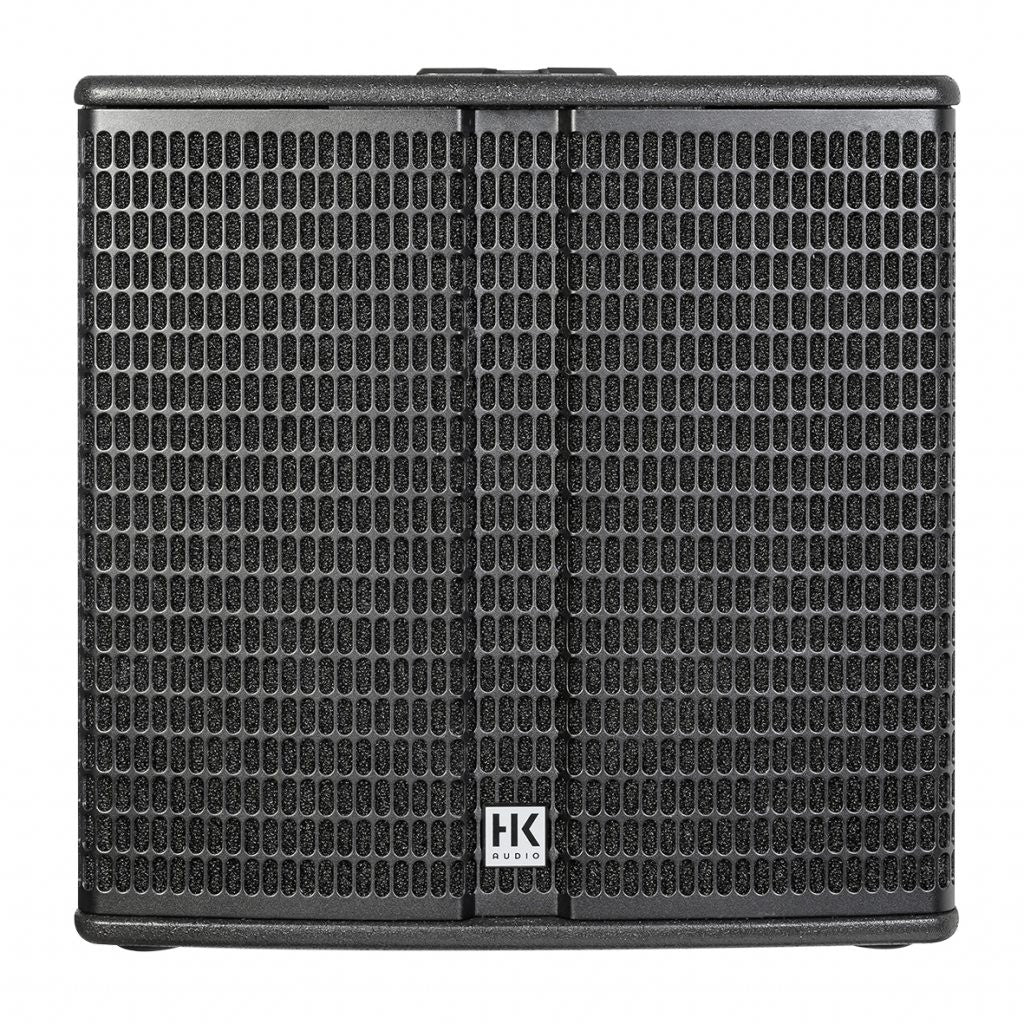

E115 SUB-D Elements HK Audio Subwoofer
E115 SUB-D ELEMENTS HK Audio Subwoofer
Compared to the subwoofers already available in the ELEMENTS family, the new ELEMENTS E 115 Sub D subwoofer delivers significantly higher bass performance. Combined with the 1500 watt power amplifier, the 15″ woofer achieves considerably more sound pressure down into the low frequencies. As a system subwoofer, it also offers a 900-watt power amplifier as a powerful drive for up to three E 835 mid/high units.
Features
- Powerful 15″ system subwoofer with 2,400 watt total power (1,500 watt for the low frequencies and 900 watt for up to three E 835 mid/high units)
- Integrated, network-controllable DSP with 4 presets and Plug'n'Play Cardioid Out
- Full control over all functions, EQ, limiter, delay, presets, etc.
- HK Audio DSP CONTROL software for full compatibility with LINEAR 7, can be operated together with LINEAR 7 speakers on the same network
- Subwoofer can be expanded with the LINEAR SUB 1500 A, also in a cardioid configuration
- Perfect expansion for existing ELEMENTS users thanks to compatibility with the E 835/435 and accessories EP 1/2 and EF 45
- Extremely easy to operate: even a large cardioid setup with two 15″ bass speakers and three E835s can be transported in a station wagon and set up by one person.
- 5-year manufacturer's warranty after registration
Brief specifications
| Housing | |
|---|---|
| Dimensions | 48.5 x 48.5 x 59.5 cm |
| Weight | 29.6 kg |
| Construction material | MDF |
| Sound | |
|---|---|
| Crossover frequency | 160 Hz |
| Frequency response | +/-3 dB: 48 Hz – x-over |
| Frequency range | -10 dB: 44 Hz – x-over |
| LF driver | 15″ |
| SPL | 125 dB, @ 90 Hz, half space |
| THD (total harmonic distortion) | 10 % |
| Power | |
|---|---|
| Peak power | 1,500 W (subwoofer) + 900 W (voor max. 3x E835 tops) |
| Amplifier configuration | Bi-amp |
| Amplifier class | D |
| Power supply | |
|---|---|
| Power supply | 1x Powercon NAC3 In, 100–240 V |

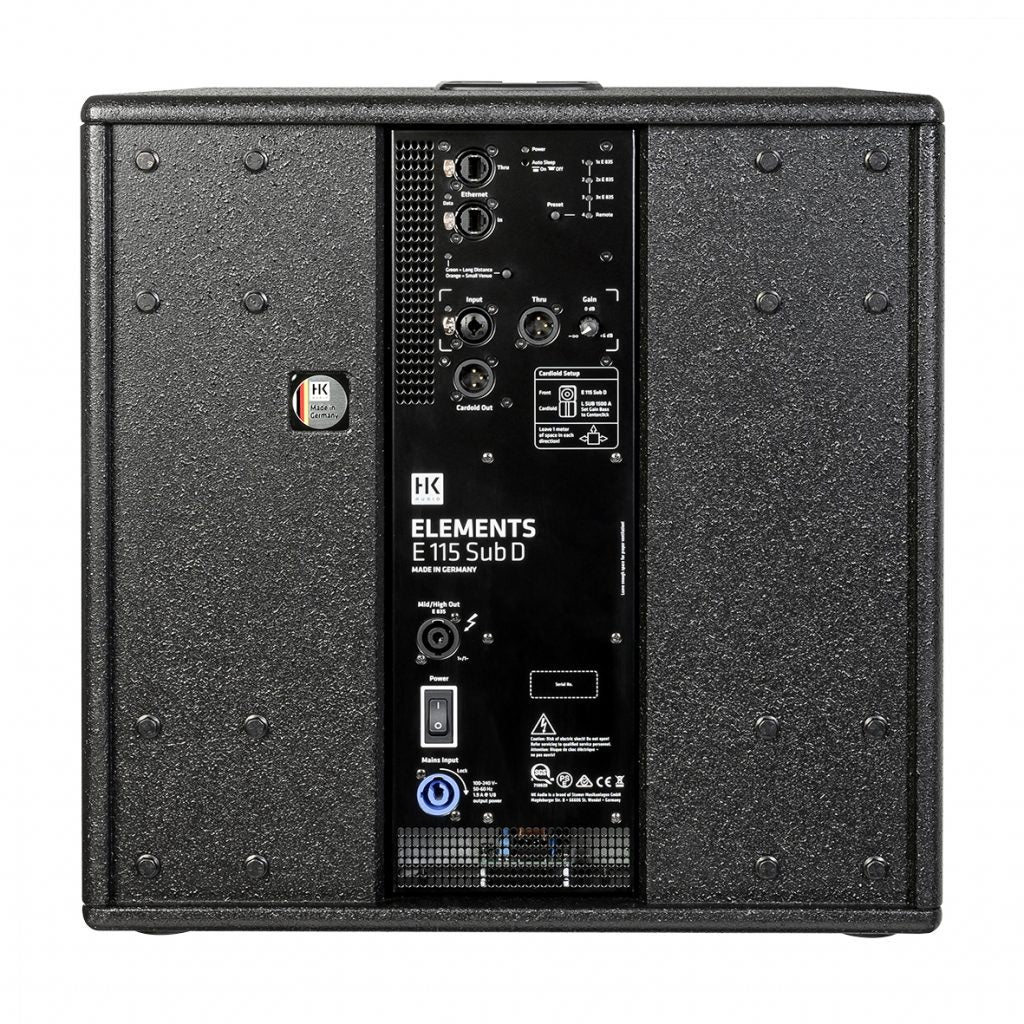

| Audio I/O | |
|---|---|
| Inputs | 1x XLR combo balanced |
| Outputs | 1x XLR balanced THRU + 1x XLR balanced CARDIOID |
| Sound card | |
|---|---|
| Sample rate | 96 kHz |
