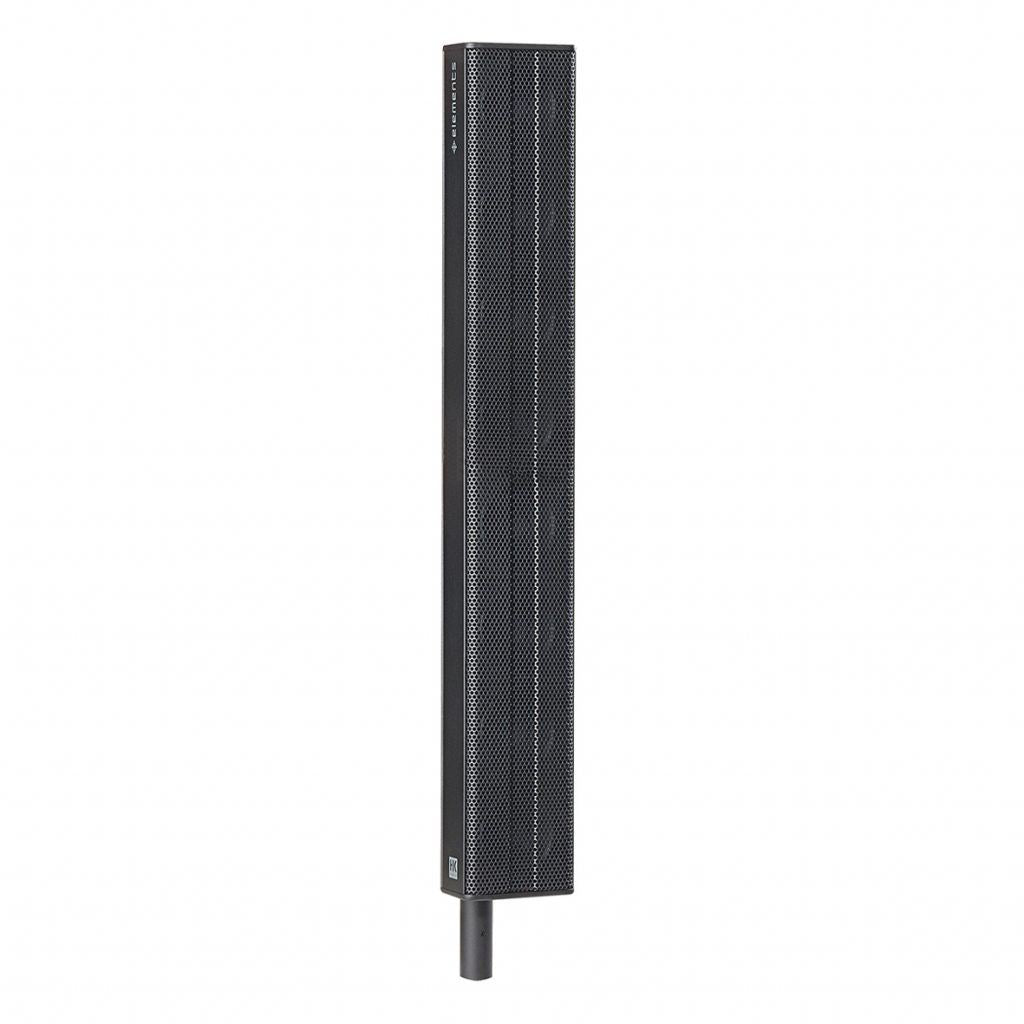

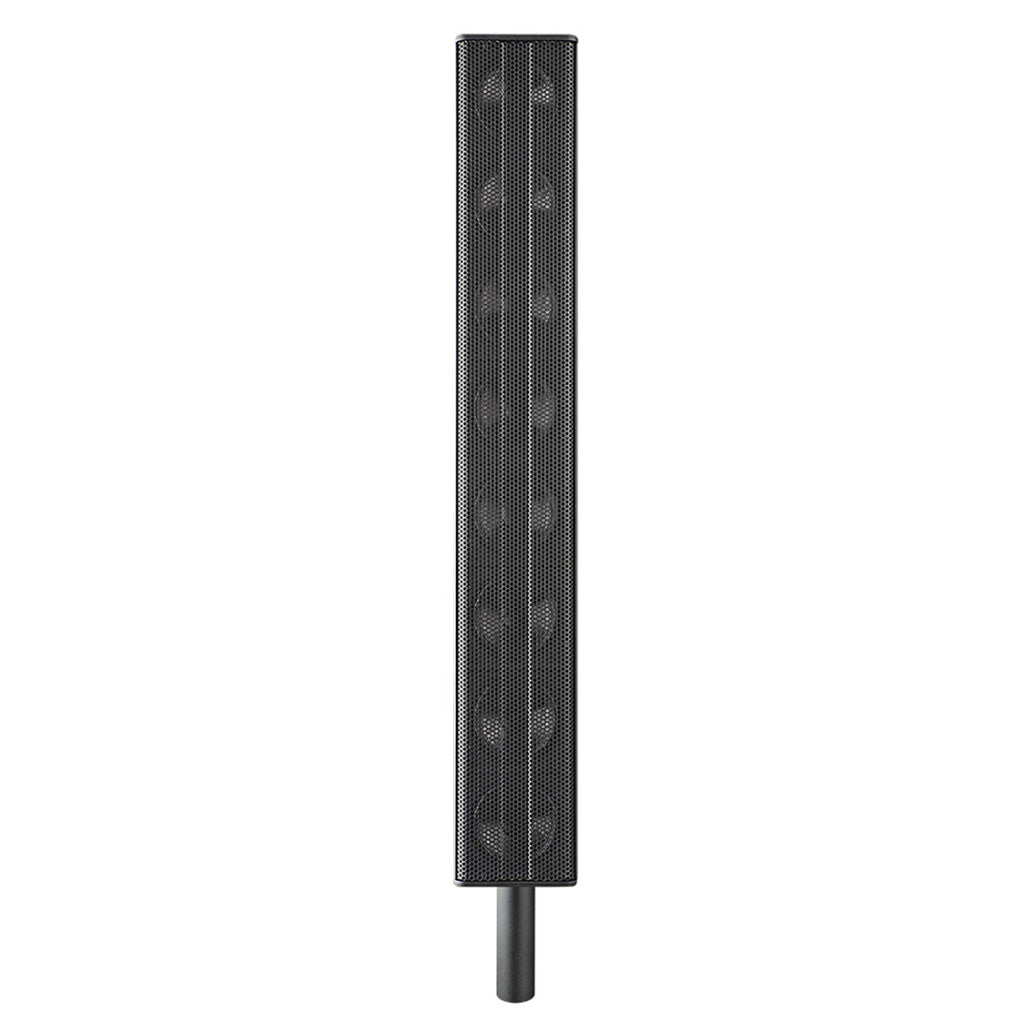

E835 Elements HK Audio high/mid unit
E835 ELEMENTS HK AUDIO High/mid Speaker unit
Our engineers developed the E 835 mid/high unit to provide even more flexibility for larger setups. It is equipped with eight 3.5″ full-range speakers and has a power rating of 300 W at an impedance of 8 Ω. The E 835 is recommended for use wherever mechanical connections need to be kept to a minimum. The E 835 can be combined with other E 435 mid/high units at any time, as the technical and acoustic design is identical.
Features
- Scalable mid/high unit with line array technology
- Homogeneous and focused directivity
- Durable aluminium enclosure
- E-Connect signal connection
- Very lightweight (4.5 kg)
Brief specifications
| Housing | |
|---|---|
| Dimensions | 11 x 74,5 x 12 cm |
| Weight | 4,5kg |
| Sound | |
|---|---|
| Crossover frequency | 140 Hz, 12 dB/oct. |
| Frequency response | 140 Hz – 20 kHz, via active system |
| Sensitivity | 100 dB (half space) |
| Impedance | 8 ohms |
| Beam angle | 70° horizontal |
| Power | |
|---|---|
| RMS power | 300 W |
| Audio I/O | |
|---|---|
| Inputs | 1 x E-Connect-In |
| Outputs | 1 x E-Connect-Out |
| Features | |
|---|---|
| Driver units | 8 x 3,5" breedband |
