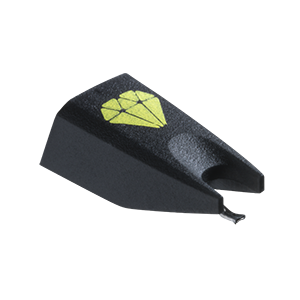

Replacement Stylus MK II ORTOFON - Replacement stylus for the Concorde MKII Club

Replacement stylus offers a tactile feedback when seating, indicating a snug and secure fit, while a cut-out area in the front allows for far more accurate needle drops.

• Larger, wider and more robust stylus body
• Easier to grip and handle
• Better fix by metal spring
• Tactile feedback of correct mount
• Large stylus viewing cut‐out

Stylus CLUB Technical data

• Output voltage at 1000Hz, 5cm/sec. - 8 mV

• Channel balance at 1kHz - 1 dB

• Channel separation at 1kHz - 25 dB

• Channel separation at 15 kHz - 15 dB

• Frequency range at -3dB - 20-20.000 Hz

• Tracking ability at 315 Hz at recommmended tracking force - 100 μm

• Compliance, dynamic lateral - 14 μm/m N

• Stylus type - Spherical Elliptical r/R 13/25 μm

• Tracking force range - 2 - 4 g

• Tracking force recommended - 3 g
