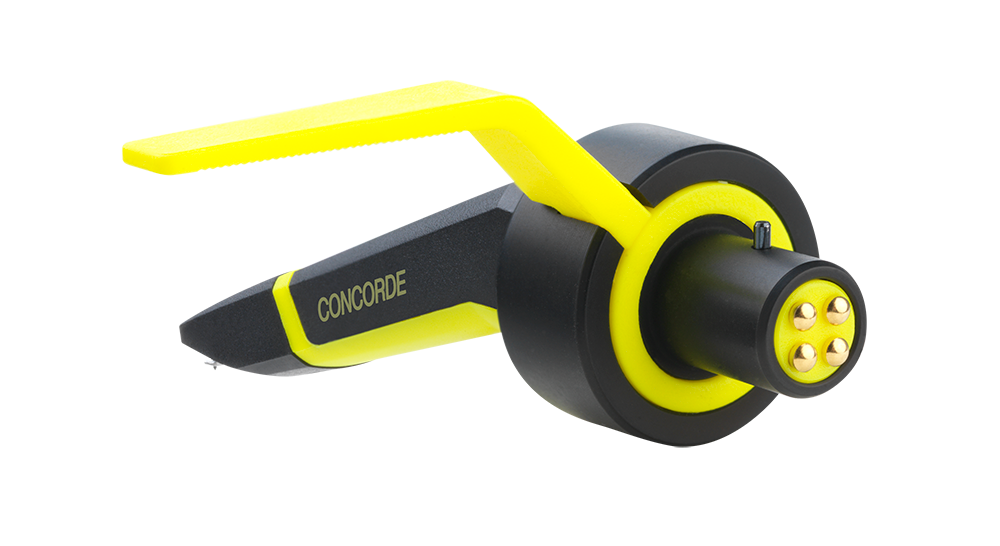

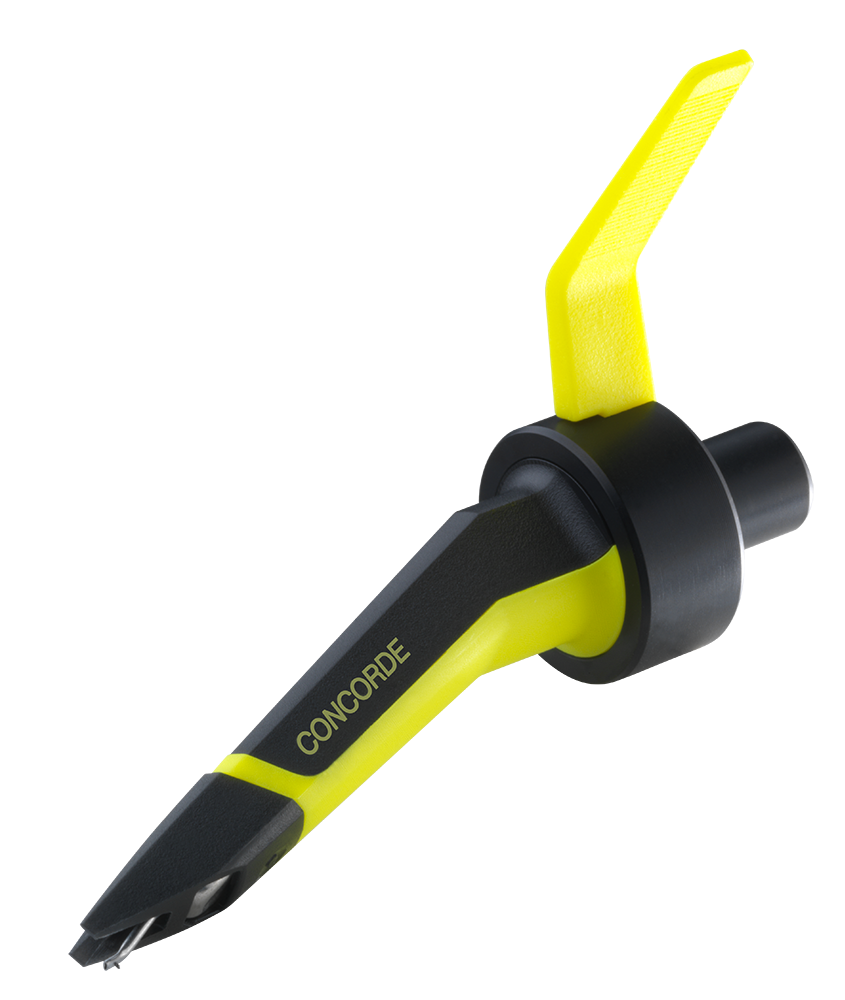

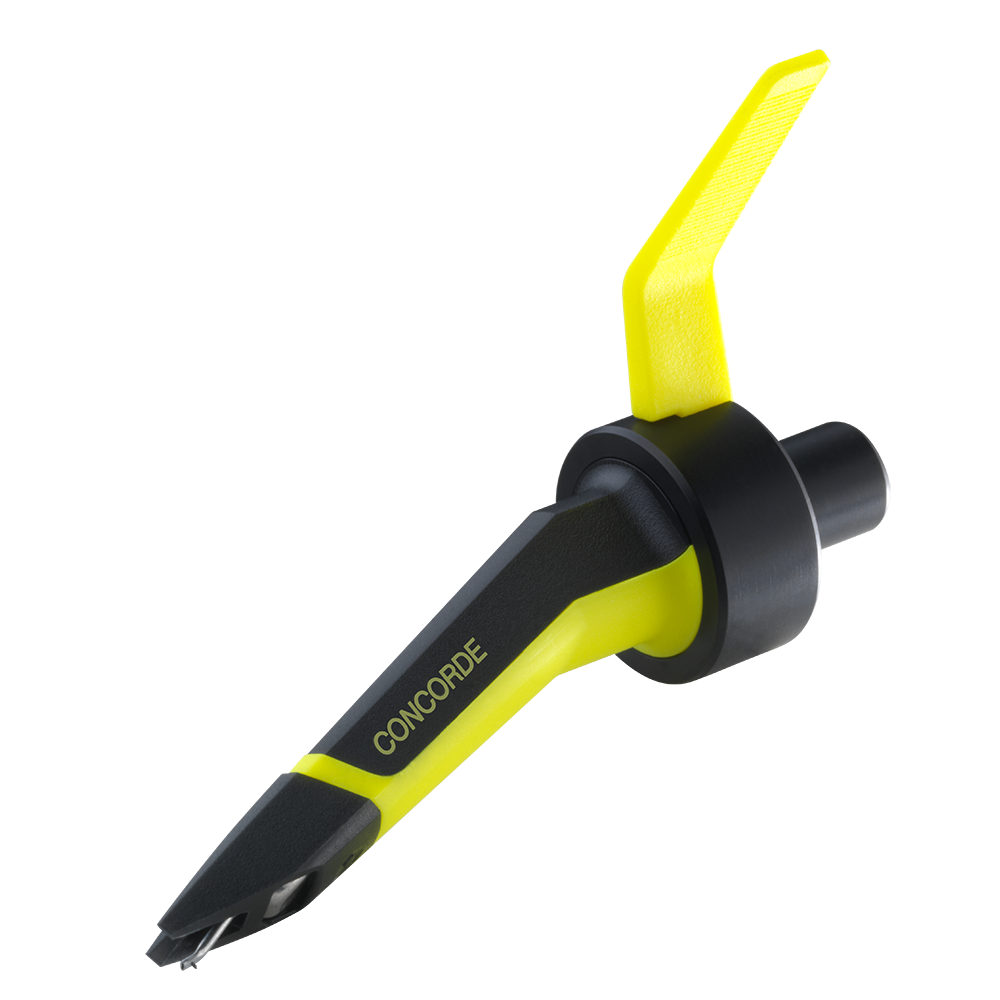

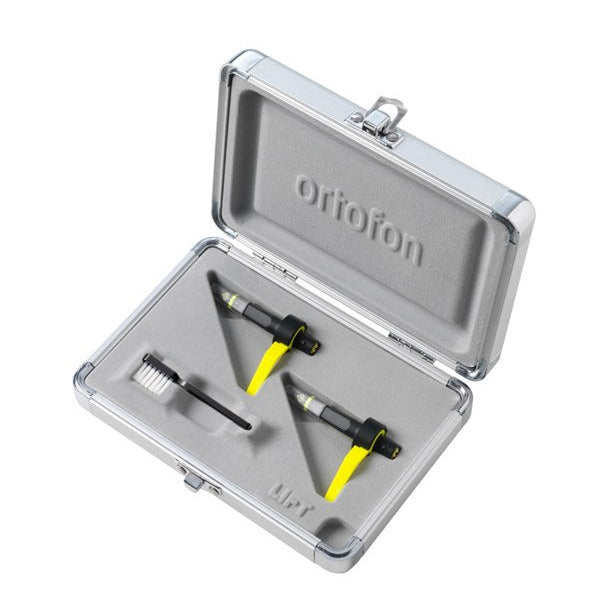

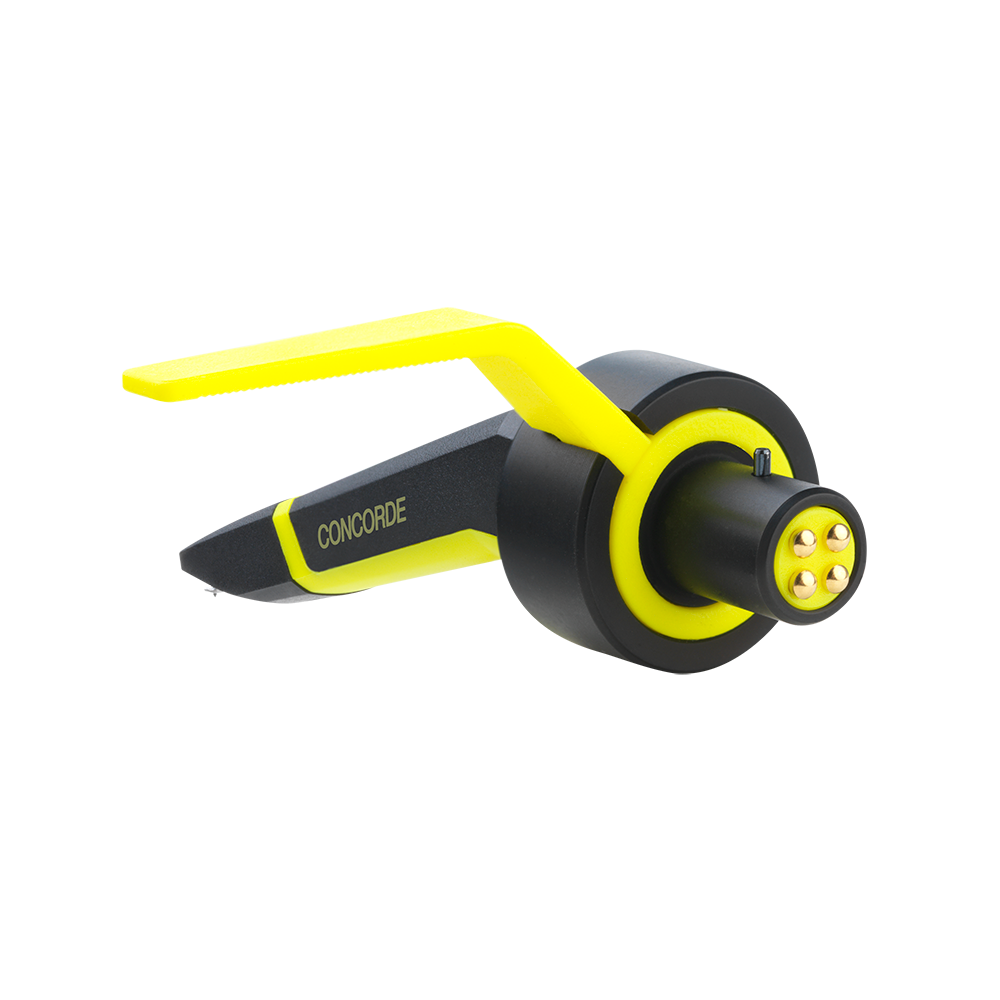

CONCORDE MKII CLUB ORTOFON SINGLE CARTRIDGE - twin club system ortofon version mk II

The Club comes with the best specifications and sound, making it the ideal choice for Club DJs in any environment: studio, broadcasting or club. The Club features a special-elliptical stylus for detailed sound quality: the special elliptical stylus fits better in the groove and therefore has a larger contact area with the groove itself, resulting in greater detail reproduction than is possible with a spherical diamond. The Club with an output voltage of 8 mV requires less gain from the preamp, delivering a purer reproduction and reduced sensitivity to feedback in a live environment.

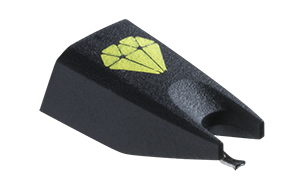

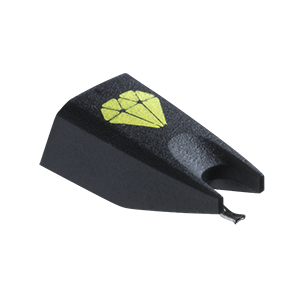

The replacement stylus provides tactile feedback upon placement, indicating that the stylus is securely and correctly mounted on the cartridge. At the front we see a cutout that allows us to perform more precise needledrops.

• Larger, wider and more robust stylus body
• Easier to grip and handle
• Improved attachment using a metal spring clip
• Tactile feedback so you know the stylus has been correctly fitted
• Larger stylus cutout

SPECIFICATIONS

• Stylus type: Elliptical
• Tracking force 3.0 g
• Output voltage 8 mV
• Channel balance at 1 kHz – 25 dB
• Channel separation at 15 kHz – 15 dB
• Frequency range at -3 dB – 20 – 20.000 Hz
• Tracking at 315 Hz at recommended tracking force - 100 μm
• Dynamic lateral compliance – 14 μm/mN
• Stylus type – Spherical elliptical r/R 13/25 μm
• Tracking force range 2-4 g
• Recommended tracking force – 3g
