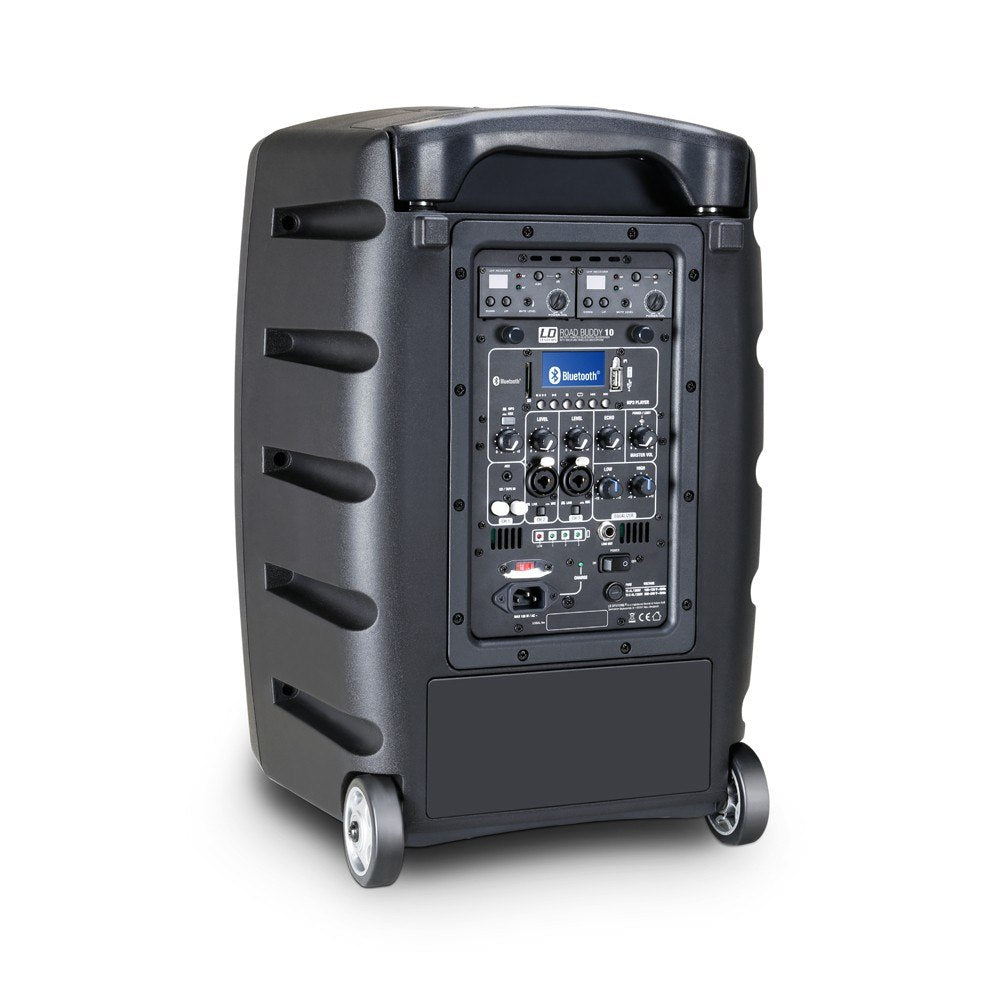

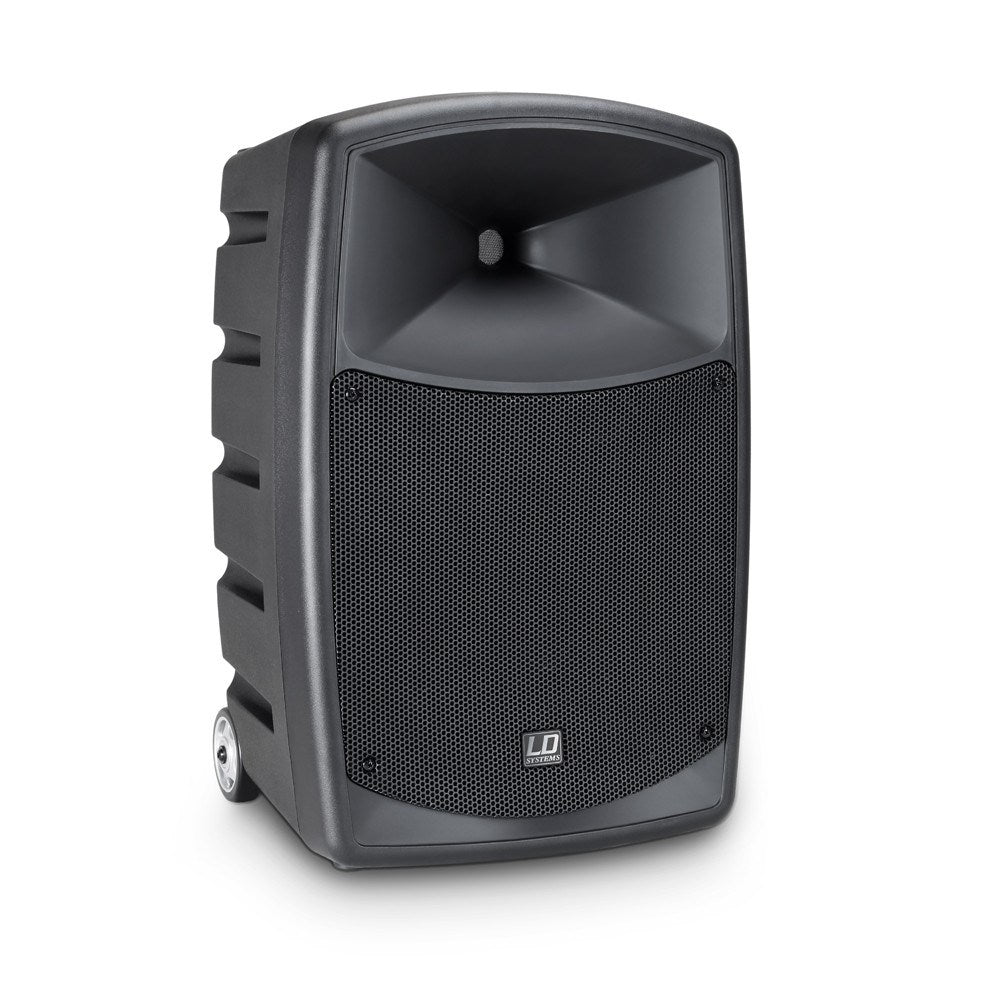

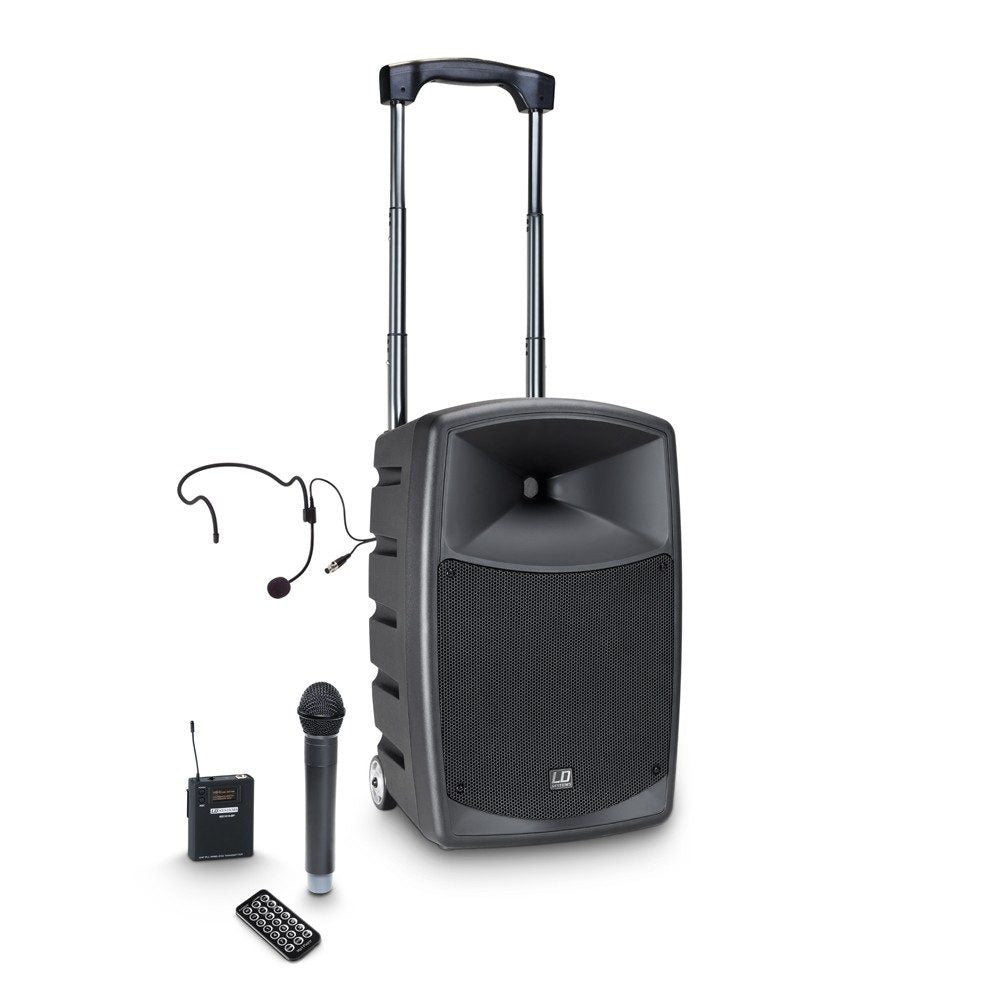

ROADBUDDY 10 HBH 2 - Battery-powered Speaker

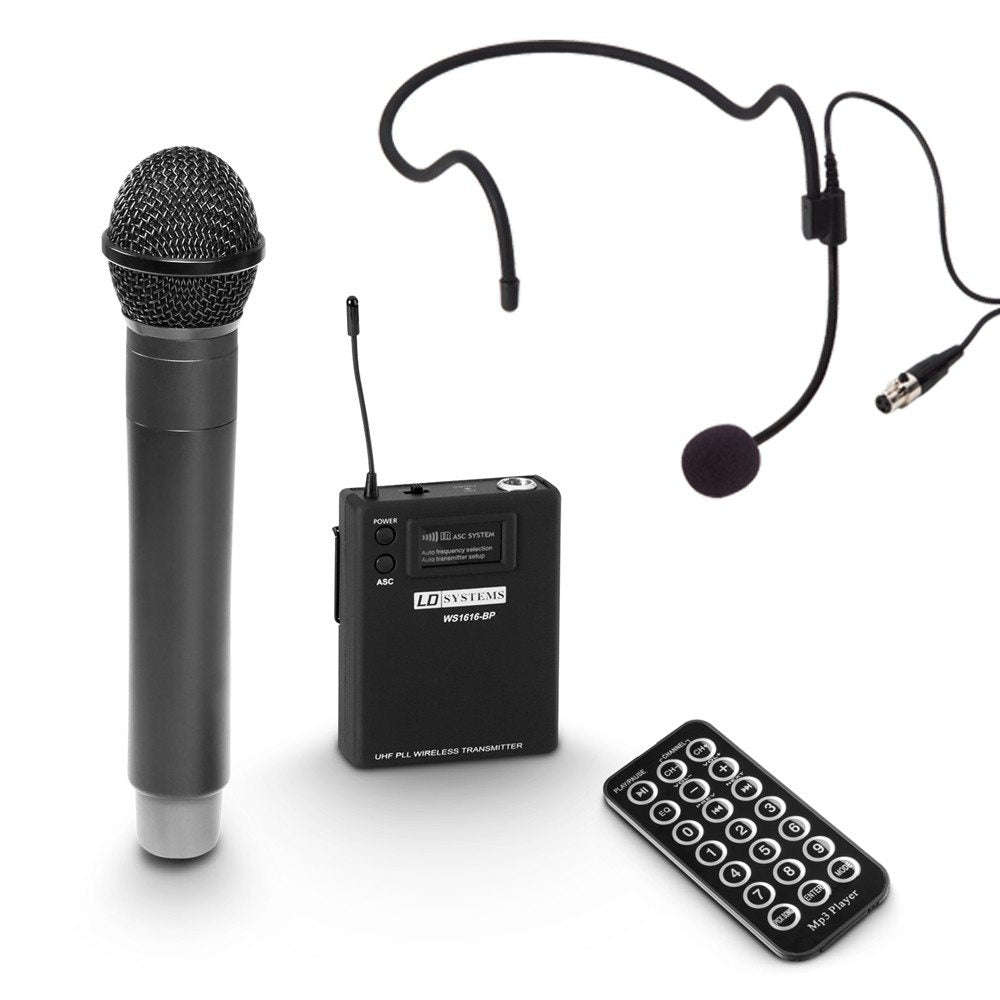

The LD Systems Roadbuddy 10 is an elegant solution for speech and music transmission on the go. The 2-way speaker with a 10" custom woofer and a 1" compression driver is powered for up to 8 hours by a rechargeable battery via a class D power amplifier with a highly efficient switching power supply and 480 Watt peak power. The Roadbuddy relies entirely on wireless transmission: it features two UHF radio receivers operating in the licence-free range of 863 - 865 MHz. The built-in Bluetooth player with illuminated multi-function display, equalizer, USB port and SD card slot supports the MP3, WMA and WAV formats. Two handheld microphones with 10 mW output power (LDRBUD10HHD2), two belt-pack headset microphones (LDRBUD10BPH2) or alternatively one handheld microphone and one belt-pack headset microphone (LDRBUD10HBH2) and an IR remote control for the player are included. For wired devices, the Roadbuddy offers two channels with combo connectors and individual volume controls switchable for microphone and line level, a stereo input via RCA (Cinch) connectors (mono summed) and a 3.5 mm Aux input. Treble, Bass, Echo and Master volume controls complete the control panel. The LD Systems Roadbuddy is easy to transport thanks to the built-in swivel wheels and a retractable handle. On the top there is a convenient storage compartment for up to two handheld transmitter microphones. The plastic enclosure of this lightweight unit is designed for a 35 mm pole mount.

Specifications

• Battery-powered PA speaker
• Low/mid driver size 10"
• Woofer size 254 mm
• Woofer magnet Ferrite
• Amplifier class D
• RMS 120 W
• Peak power 480 W
• Frequency range 55 - 18000 Hz
• SPL (1W/1m) 96 dB
• Max. SPL 115 dB
• Protection circuits overcurrent, overload protection, short circuit

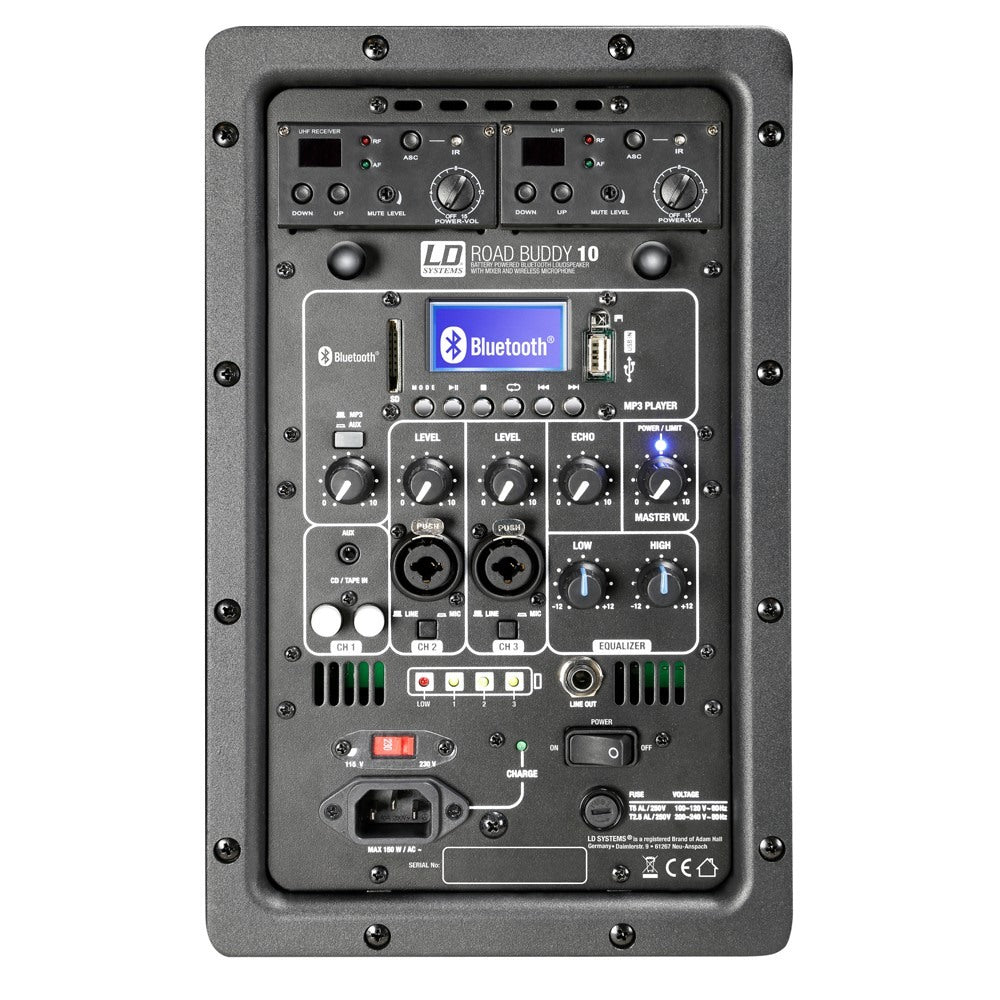

• Controls AUX / MP3 switch, CD / Tape IN level, Echo, Treble, Bass, Mic 1 Level, Mic 2 Level, Master Volume
• Indicators Charge/battery status, Power
• Media player
• Supported media Bluetooth, SD card, USB stick
• Supported formats MP3 file, WAV CD, WMA file
• Media player controls Equalizer, Mode (Menu / Bluetooth / SD / USB), Next Track, Play / Pause, Previous Track, Repeat, Stop
• Media player display Illuminated multi-function LC display
• Line inputs 1
• Line input connectors 2 x RCA, 2 x XLR, 3.5 mm jack, 6.3 mm jack
• Mic inputs 2
• Mic input connectors 2 x XLR, 6.3 mm jack
• Wireless unit
• Transmission frequency range 863 - 865 MHz
• Modulation type FM
• Channels 16
• Frequency response wireless unit 50 - 17000 Hz
• Controls wireless unit ASC, Squelch level, Power / Volume, Value down, Value up
• Indicators wireless unit AF (LED), LED display, RF (LED)
• Connectors wireless unit nTNC for receiver antenna
• RF transmitter power 10 mW
• Handheld microphone weight 0.285 kg
• Handheld microphone material Aluminium
• Bodypack weight 0.08 kg
• Bodypack material ABS plastic
• Power supply Switching power supply
• Operating voltage 100 V - 120 V / 60 Hz, 220 V - 240 V AC / 50 Hz
• Rechargeable battery 12 V / 5 Ah
• Dimensions
• Width 415 mm
• Height 525 mm
• Depth 328 mm
• Weight 16.5 kg

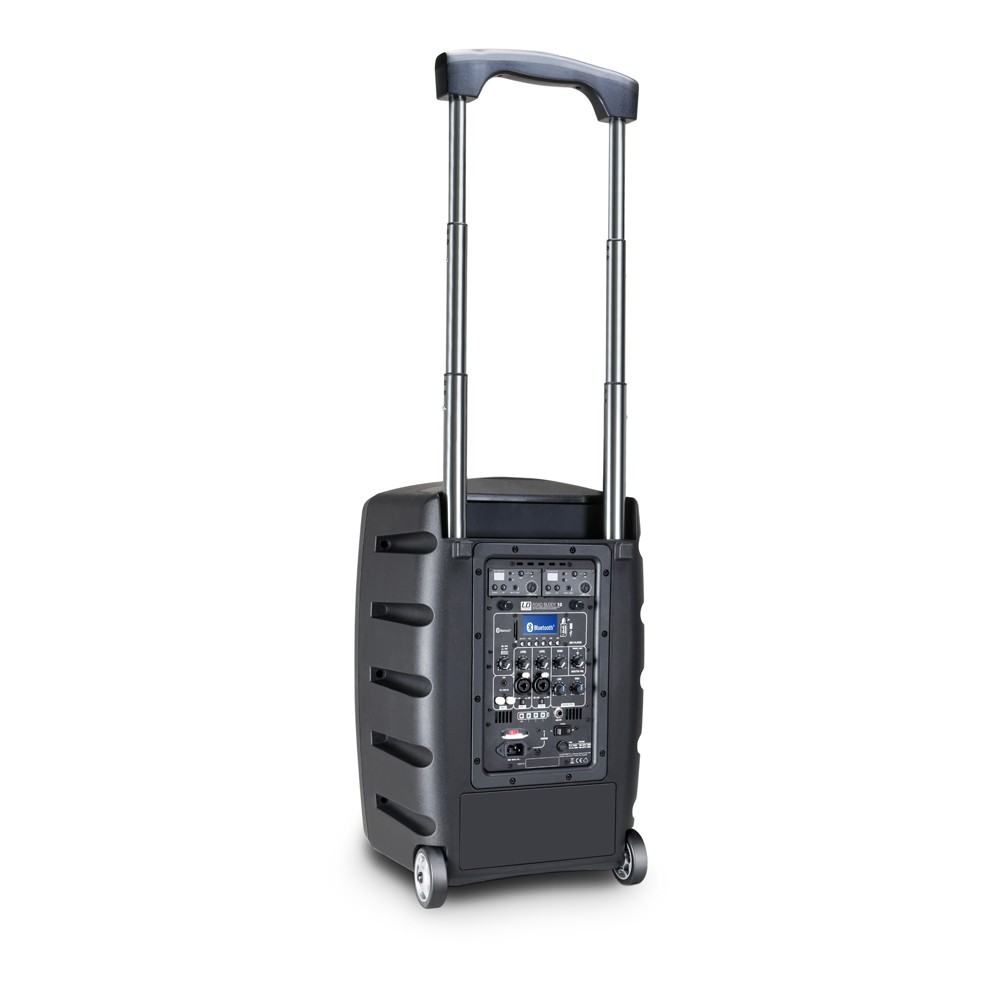

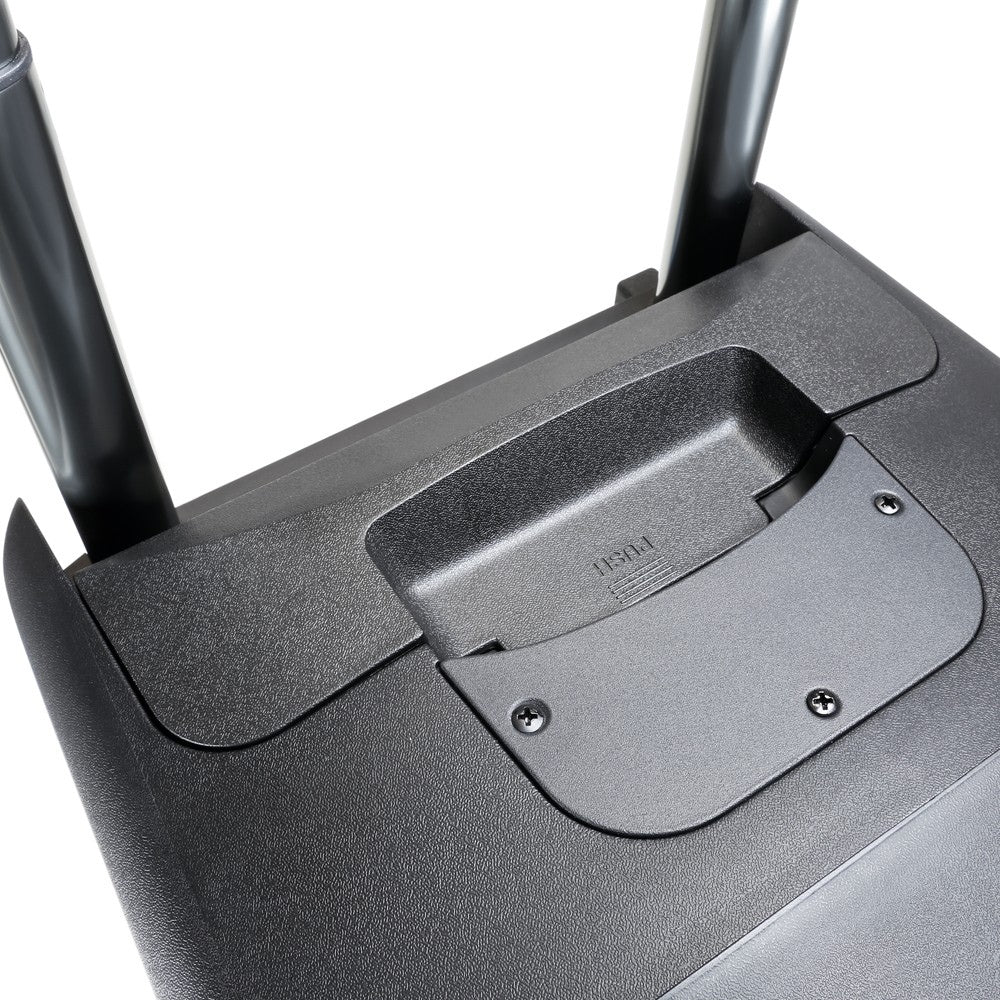

• Retractable handle
• IR remote control for media player
• Pole mount 36 mm
• Transport wheels
• Transport handle
