DJM V10-LF PIONEER DJ
DJM-V10-LF PIONEER DJ
It is late 2020, Pioneer DJ announces its latest addition: the DJM-V10-LF. An expansion of its already feature-rich predecessor, the DJM V10. This unit boasts new, longer channel faders with improved curves and custom-designed presets. What immediately stands out is that this LF version has no crossfader; the original 45mm faders have been replaced by larger 60mm channel faders. This extra range offers the ability to pursue a more precise and fluid mix. In addition, a brand-new fader curve setting has been added to the mixer, and the faders have been given exactly the right weight to get even more out of their range.
All other features and specifications of the DJM-V10-LF are the same as those of the DJM-V10, which has been hugely popular among the most creative DJs since its release in early 2020. The 6-channel unit produces a warm and energetic sound and is packed with unique features. The unit comes with two of the classic fader curves from its predecessor, but also features a brand-new and optimised curve preset. 96 kHz/64-bit mixing and studio-quality dithering processing in the DSP, plus high-grade 32-bit A/D and D/A converters and a low-jitter clock circuit all help produce a full low-end that is complemented by a vivid midrange and a precise high end.
With its six channels, you can choose an ideal configuration and connect whatever you like — from CDJs to turntables, samplers, synthesizers and drum machines. Its four-band EQ (as opposed to the standard three-band EQ) gives you ultimate flexibility at your fingertips, while its large master isolator provides a playground of triggers for your audience on the dance floor. The compressor knob above each channel levels unmastered tracks on demand and in real time. 14 built-in Beat FX add more punch to your set, while its two headphone outputs offer individual control. With the booth EQ, you can adjust the sound from the monitor speakers to reduce ear fatigue during long sets.
Brief specifications
| Housing | |
|---|---|
| Width | 437,6 mm |
| Depth | 467 mm |
| Weight | 11,9 kg |
| Height | 107,9 mm |
| Color | Zwart |
| Sound | |
|---|---|
| Frequency range | 20 - 40.000 Hz |
| Signal-to-noise ratio | Line: 105 dB - Phono: 88 dB - Mic: 79 dB |
| Audio I/O | |
|---|---|
| Audio over USB | 6 |
| Channels | 6 |

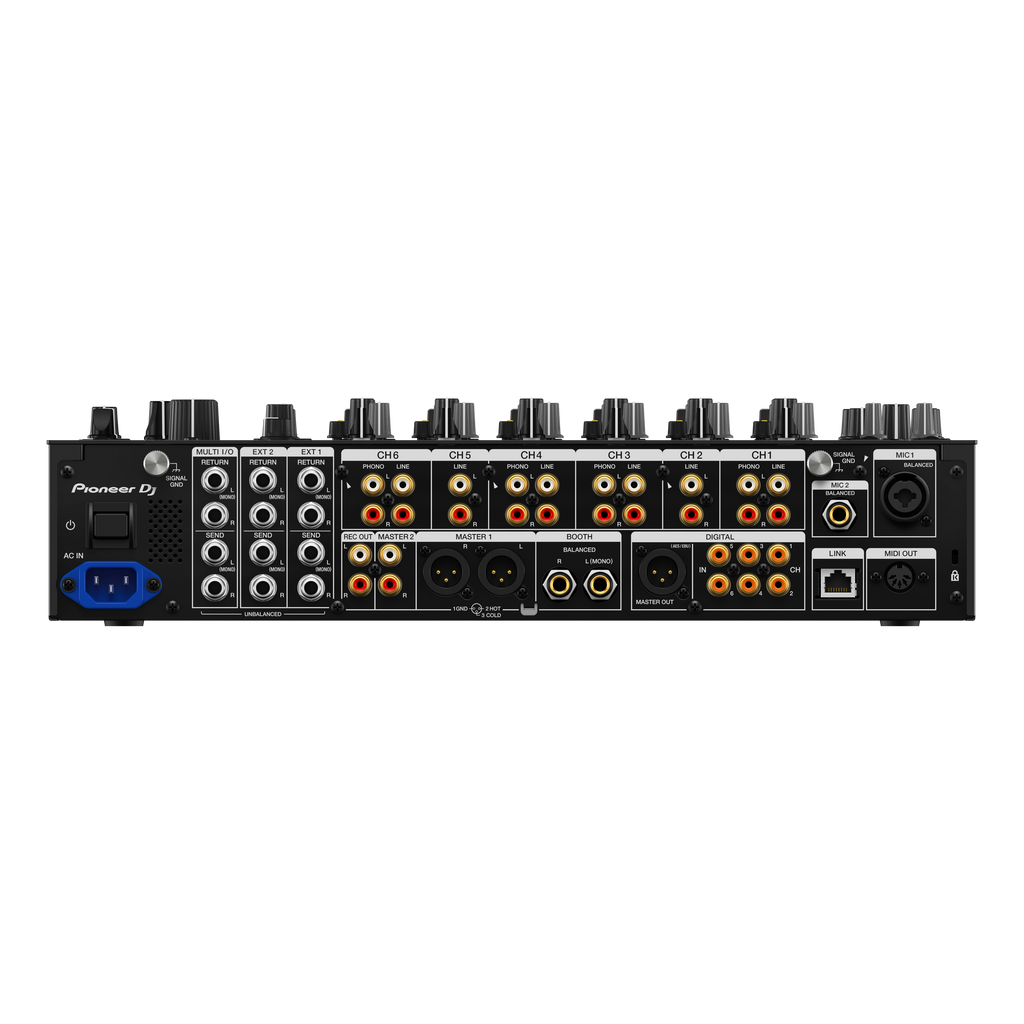

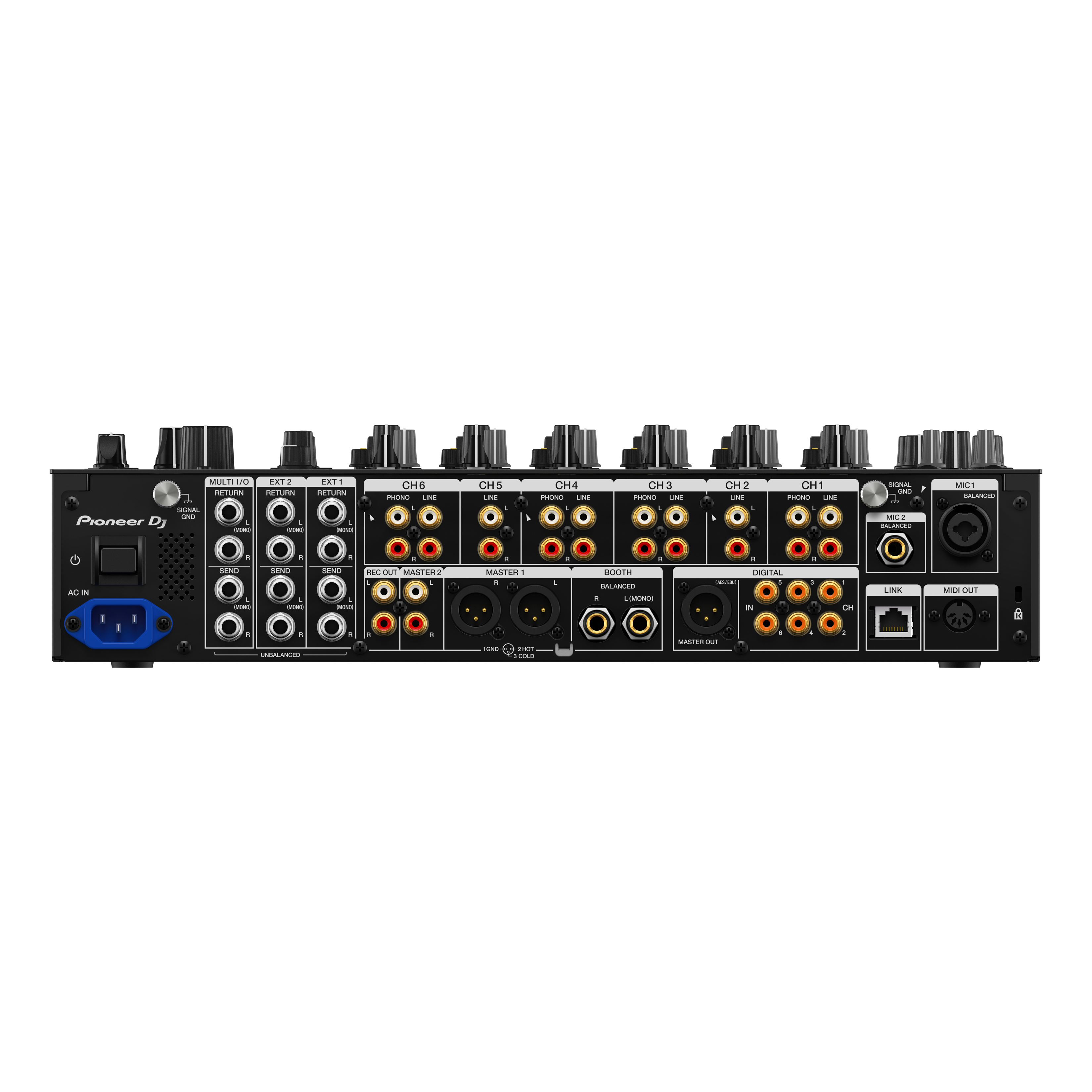

| Terminals | |
|---|---|
| Inputs | 6 DIGITAL (Coaxial), 6 LINE (RCA), 4 PHONO (RCA) |
| LAN | 1 |
| Outputs | 2 MASTER (XLR, RCA), 1 BOOTH (TRS-jack van 1/4"), 4 HOOFDTELEFOONMONITORS (beide secties: Jack van 1/4", mini-jack), 1 REC OUT (RCA), 1 DIGITAL (AES/EBU), 1 MIDI (DIN) |
| Send/return amp | 3 SEND (1/4-inch TS jack), 3 RETURN (1/4-inch TS jack) |
| USB | 2 USB B-poorten, 1 USB A-poort |
| Features | |
|---|---|
| DVS control | ja, Rekordbox ( niet inbegrepen ) |
| Effects | Ja |
| MIDI control | Volledig toewijsbaar |
| PRO DJ LINK | Ja |
| Channels | |
|---|---|
| EQ range | [Hi/Low] -∞ ~ +6 dB / [Hi Mid/Low Mid] -26 dB ~ +6 dB dB |
